1986 Kawasaki Ninja® Seat/seat Cover Diagram

← All diagrams

Find the part on the Seat/seat Cover diagram for your 1986 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

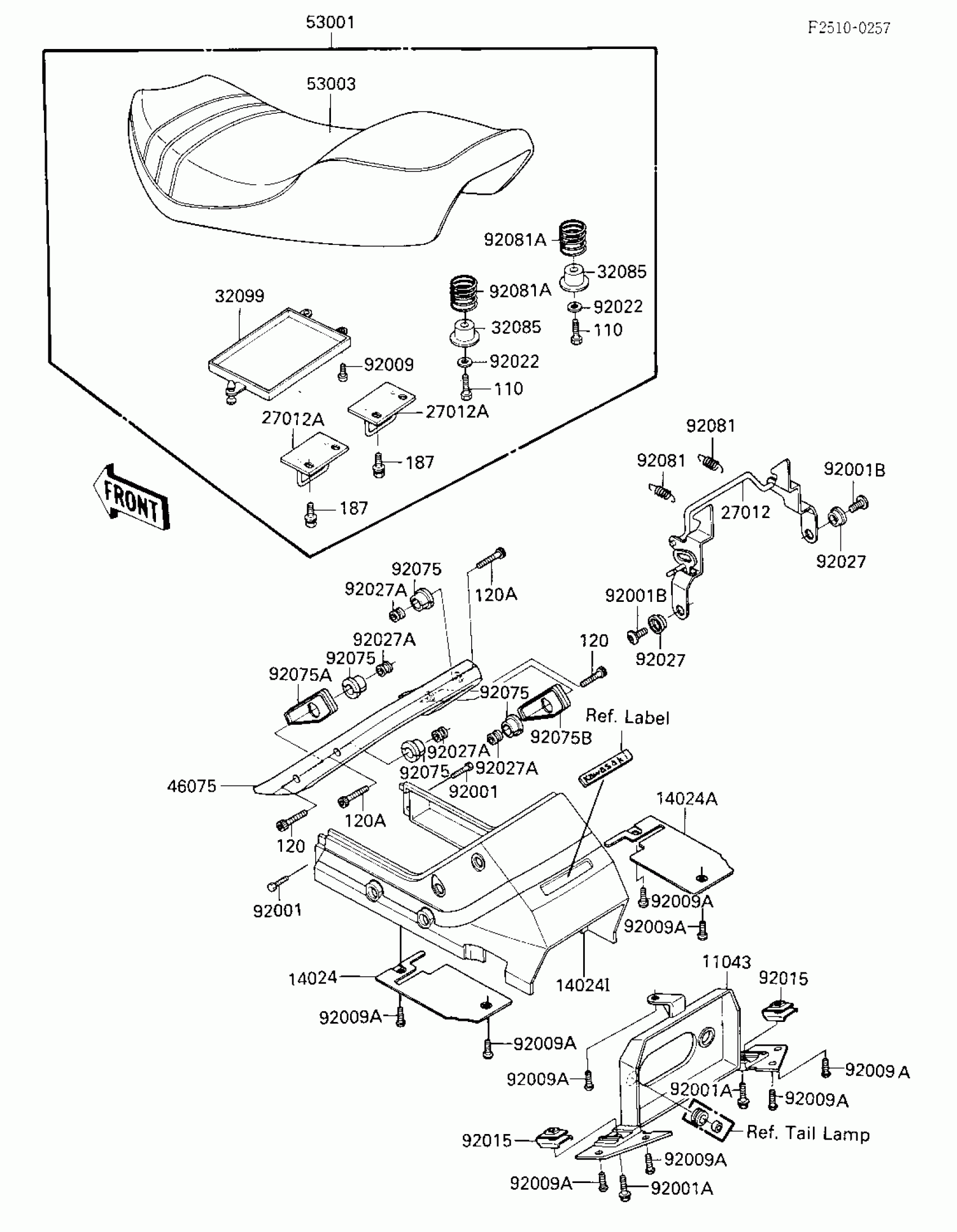

1986 Kawasaki Ninja® Seat/seat Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11043

BRACKET,TAIL LAMP

11043-1458

1
Out of stock

14024

COVER

14025-1888

1
Out of stock

14024A

COVER

14025-1889

1
Out of stock

14024I

COVER,SEAT,RED/WHITE

14025-5224-P9

1
Out of stock

27012

HOOK,SEAT LOCK

27012-1321

1
Out of stock

27012A

HOOK,SEAT

53008-021

1
Out of stock

32085

STOPPER,SEAT

32085-1167

1
Out of stock

32099

CASE,MANUAL

32099-011

1
Out of stock

46075

GRIP,FRAME

46075-1054

1
Out of stock

53001

SEAT-ASSY,DUAL

53001-1370

1
Out of stock

53003

LEATHER,SEAT

53003-1119

1
Out of stock

92001

BOLT,6X12

92001-1771

1
Out of stock

92001A

BOLT,6X20

92001-1826

1
Out of stock

92001B

BOLT,8X16

92001-1841

1
Out of stock

92009

SCREW,TAPPING,5X8

92009-1043

1
Out of stock

92009A

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92015

NUT,TAIL LAMP BRACKET

92015-1346

1
Out of stock

92022

WASHER,6.5X16X2

92022-1565

1
Out of stock

92027

COLLAR,8.2X13X6

92027-1565

1
Out of stock

92027A

COLLAR,L=14

92027-1742

1
Out of stock

92075

DAMPER,FRAME GRIP

92075-1603

1
Out of stock

92075A

DAMPER,FRAME GRIP,LH

92075-1604

1
Out of stock

92075B

DAMPER,FRAME GRIP,RH

92075-1605

1
Out of stock

92081

SPRING,HOOK RETURN

92081-1580

1
Out of stock

92081A

SPRING,SEAT

92081-1664

1
Out of stock

110

BOLT-UPSET

112G0625

1
Out of stock

120

BOLT-SOCKET,8X35

120S0835

1
Out of stock

120A

BOLT-SOCKET,8X40

120S0840

1
Out of stock

187

BOLT 6X14

187B0614

1
Out of stock
