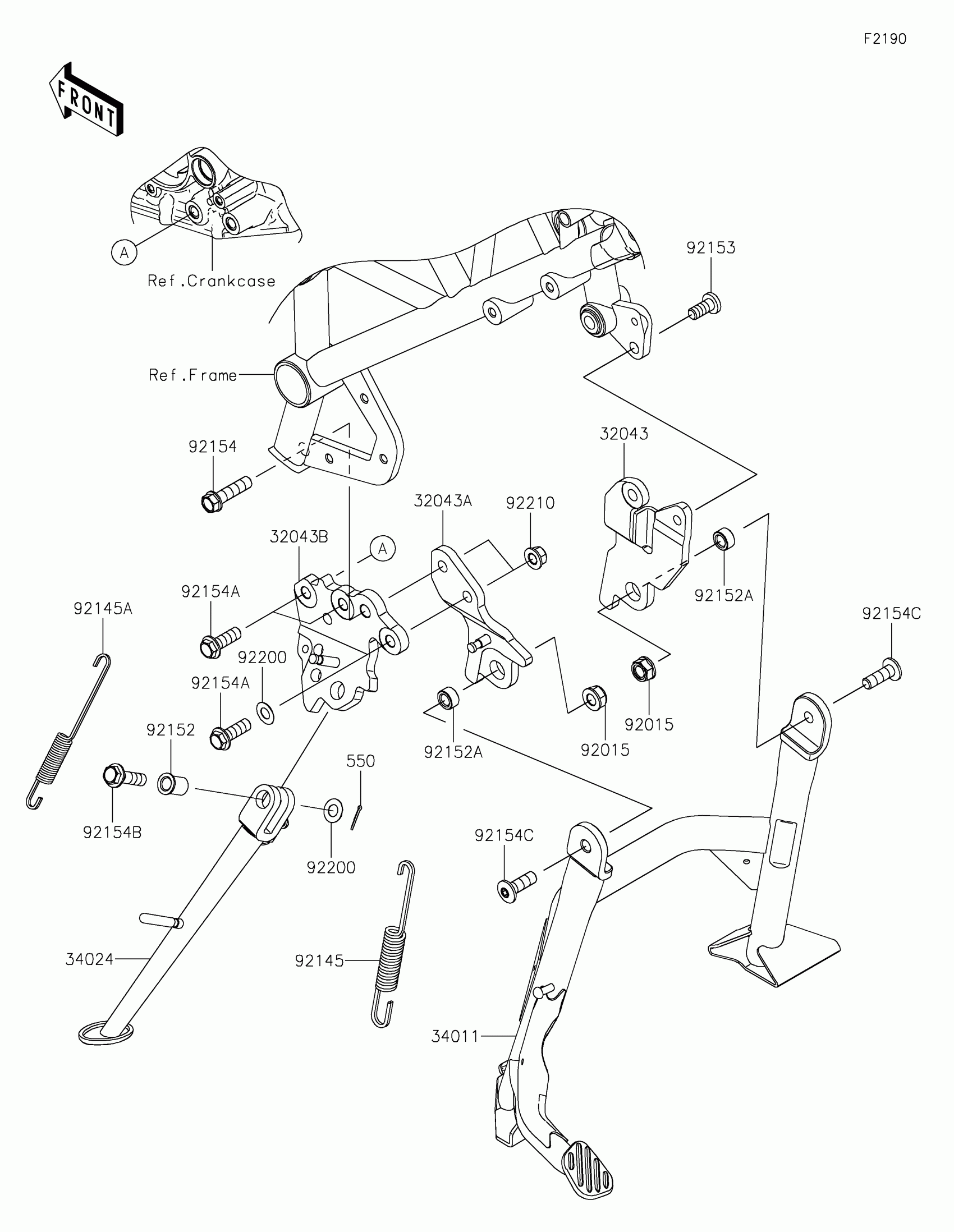

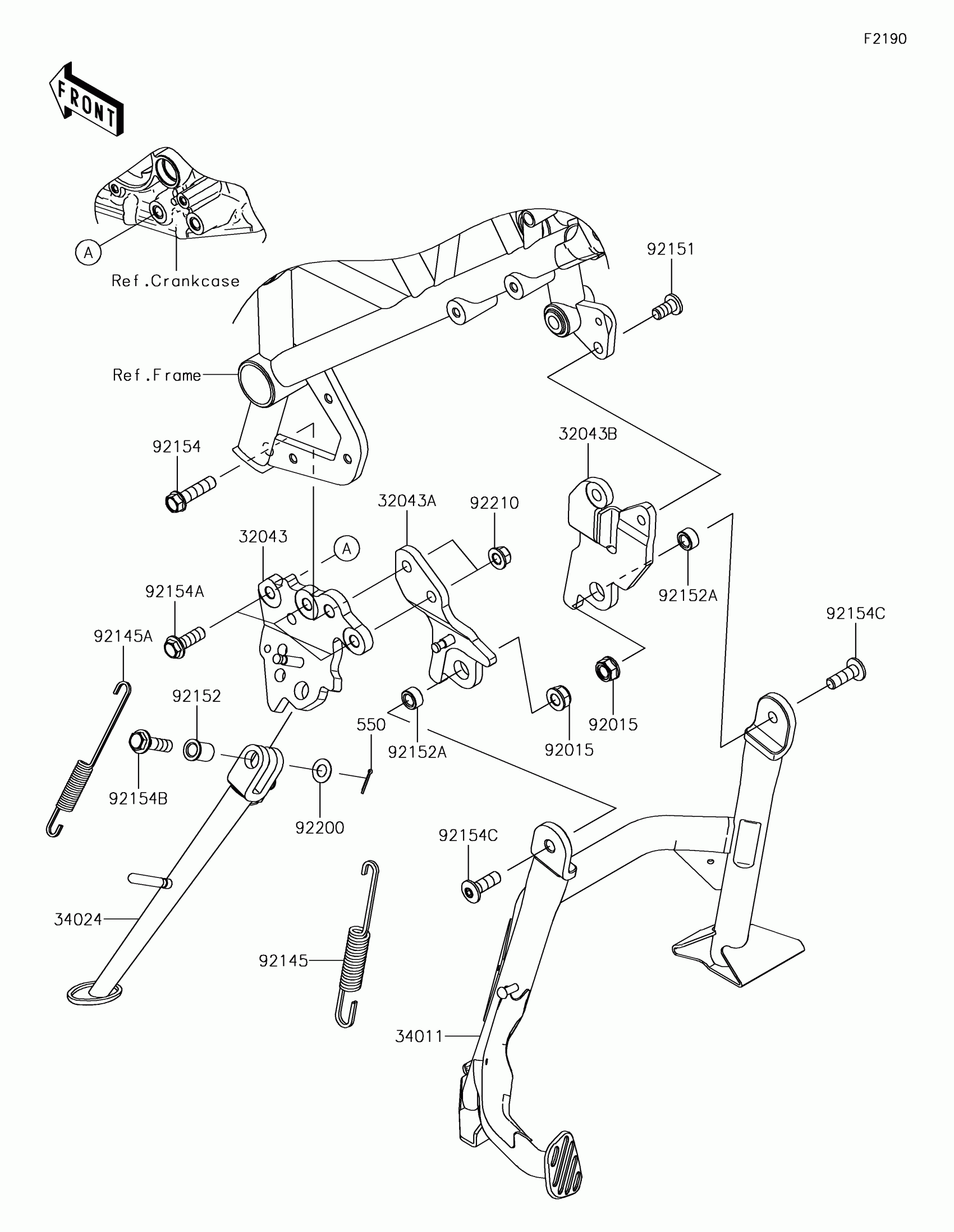

Kawasaki NINJA H2™ SX SE Stand(s) Diagram

Description

Price

32043

BRACKET-STAND

32043-0625

$120.77

32043A

BRACKET-STAND,LH

32043-0626

$98.89

32043B

BRACKET-STAND,RH

32043-0627

$92.86

34011

STAND-CENTER

34011-0034

$312.92

34024

STAND-SIDE

34024-0150

$99.39

550

PIN-COTTER,2.0X15

550AA2015

$0.90

92015

NUT,LOCK,FLANGED,10MM

92015-1717

$7.54

92145

SPRING,CENTER STAND

92145-1550

$23.98

92145A

SPRING,14X144

92145-1792

$31.04

92151

BOLT,SOCKET,10X20

92151-1557

$1.98

92152

COLLAR,10.2X15X20.1

92152-1828

$12.95

92152A

COLLAR,10X17X9

92152-2501

$7.32

92154

BOLT,FLANGED,10X40

92154-0313

$4.24

92154A

BOLT,FLANGED,10X30

92154-1645

$7.24

92154B

BOLT,FLANGED,10X35,MEC

92154-2905

$10.85

92154C

BOLT,SOCKET,10X30

92154-2909

$4.76

92200

WASHER,10.2X20X0.5

92200-1732

$9.14

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90
