2018 Kawasaki Ninja H2™ SX Se Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2018 Kawasaki Ninja H2™ SX Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

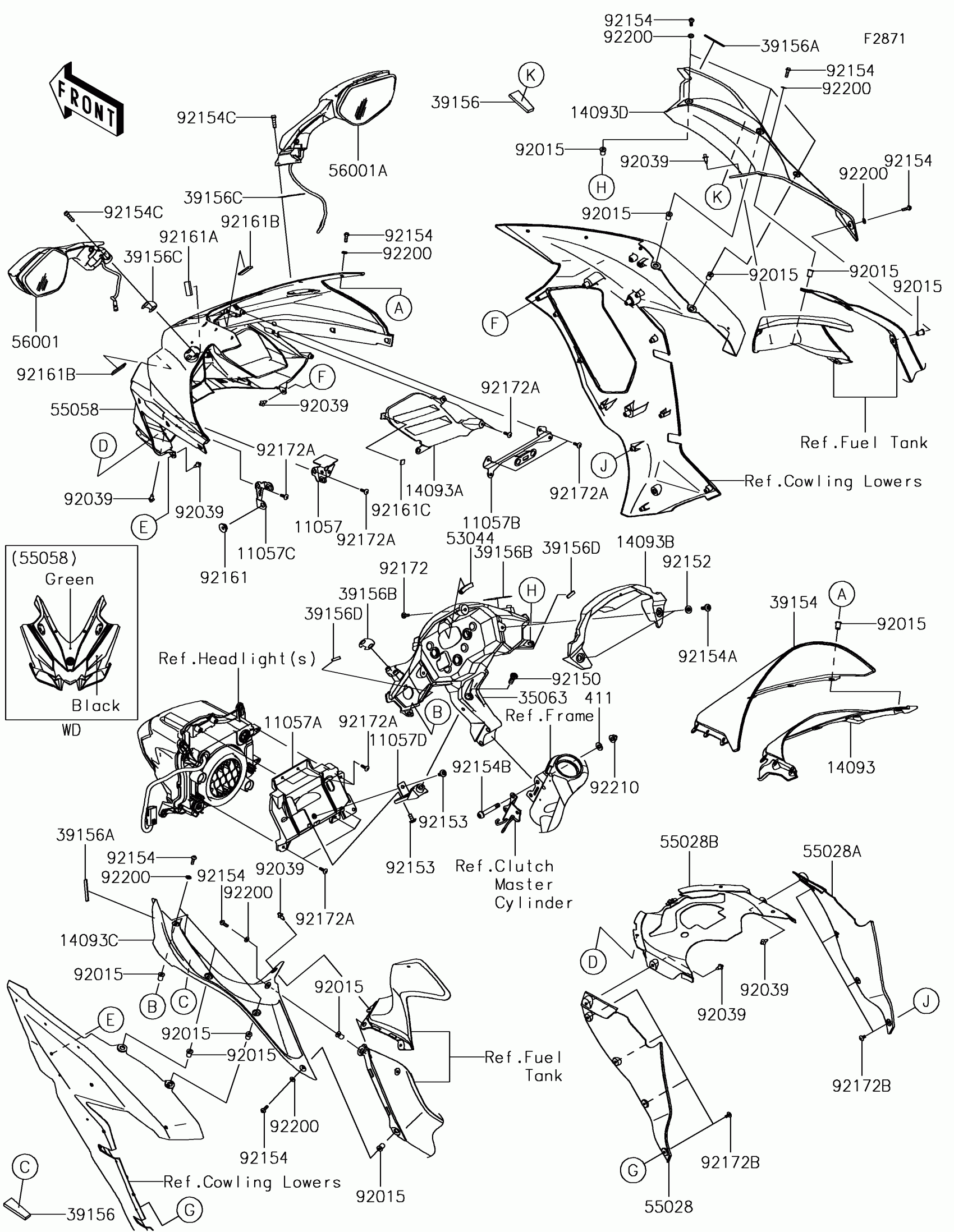

2018 Kawasaki Ninja H2™ SX Se Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,UPP COWL.,LH

11057-1288

1
Out of stock

11057A

BRACKET,HEAD LAMP

11057-1289

1
Out of stock

11057B

BRACKET,HEAD LAMP

11057-1294

1
Out of stock

11057C

BRACKET,SIDE COWL.,LH,UPP

11057-1295

1
Out of stock

11057D

BRACKET,STAY CONNECT

11057-1448

1
Out of stock

14093

COVER,METER VISOR

14093-0664

1
Out of stock

14093A

COVER,DUCT

14093-0665

1
Out of stock

14093B

COVER,METER,SE

14093-0722

1
Out of stock

14093C

COVER,INNER FAIRING,LH

14093-0765

1
Out of stock

14093D

COVER,INNER FAIRING,RH

14093-0766

1
Out of stock

35063

STAY,METER

35063-1417

1
Out of stock

39154

WINDSHIELD,LARGE

39154-0372

1
Out of stock

39156

PAD,25X60X8

39156-2318

1
Out of stock

39156A

PAD,6X50X2

39156-2319

1
Out of stock

39156B

PAD,MIRROR MOUNT

39156-2320

1
Out of stock

39156C

PAD,MIRROR MOUNT

39156-2321

1
Out of stock

39156D

PAD,5X22X2

39156-2322

1
Out of stock

53044

TRIM,L=34MM

53044-0634

1
Out of stock

55028

COWLING,SIDE COWL.,INNER,LH

55028-0653

1
Out of stock

55028A

COWLING,SIDE COWL.,INNER,RH

55028-0654

1
Out of stock

55028B

COWLING,UPP COWL.,INNER

55028-0655

1
Out of stock

55058

COWLING,UPP,M.D.BLACK+GRN

55058-5067-62F

1
Out of stock

56001

MIRROR-ASSY,LH,SIGNAL

56001-0382

1
Out of stock

56001A

MIRROR-ASSY,RH,SIGNAL

56001-0383

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92039

RIVET

92039-0068

1
Out of stock

92150

BOLT,SOCKET,8X25

92150-1837

1
Out of stock

92152

COLLAR,6.5X16X4.6

92152-2495

1
Out of stock

92153

BOLT,SOCKET,6X14

92153-1021

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0209

1
Out of stock

92154A

BOLT,SOCKET,6X18

92154-1694

1
Out of stock

92154B

BOLT,SOCKET,8X52

92154-1710

1
Out of stock

92154C

BOLT,SOCKET,6X22,MEC

92154-2736

1
Out of stock

92161

DAMPER

92161-1531

1
Out of stock

92161A

DAMPER,10X30X10

92161-1835

1
Out of stock

92161B

DAMPER,10X50X3

92161-2119

1
Out of stock

92161C

DAMPER,10X10X2

92161-2121

1
Out of stock

92172

SCREW,TAPPING,5X16

92172-0175

1
Out of stock

92172A

SCREW,TAPPING,5X16

92172-0238

1
Out of stock

92172B

SCREW,TAPPING,5X10

92172-0335

1
Out of stock

411

WASHER-PLAIN,8MM

411AA0800

1
Out of stock

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

1
Out of stock

92210

NUT,CAP,8MM

92210-1132

1
Out of stock
