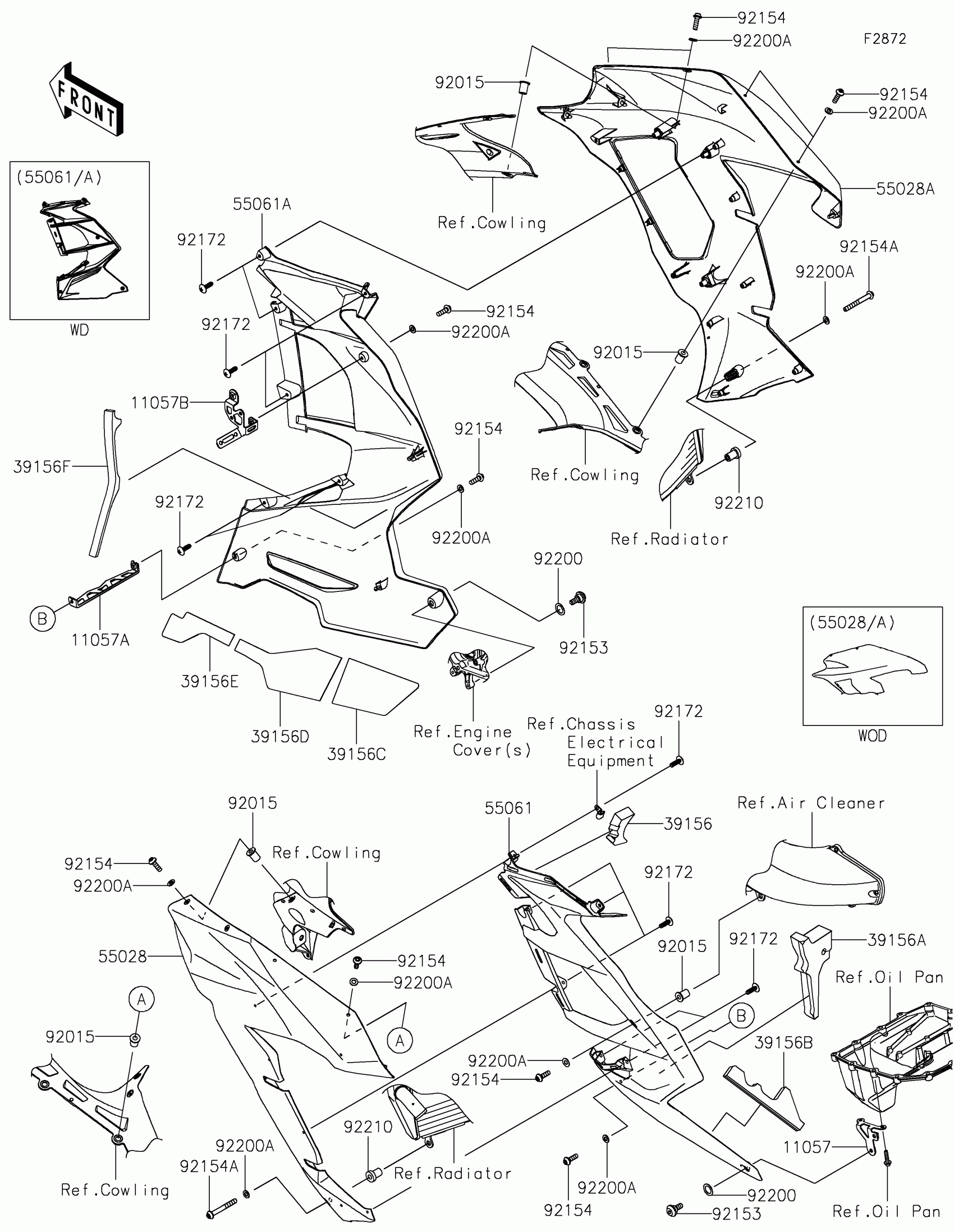

Kawasaki NINJA H2™ SX SE Cowling Lowers Diagram

Description

Price

11057

BRACKET,LWR COWL.,RR

11057-1286

$7.75

11057A

BRACKET,CONNECTING,LWR

11057-1287

$31.33

11057B

BRACKET,SIDE COWL.,W/ABS PIPE

11057-1297

$14.81

39156

PAD,DUCT

39156-2255

$15.80

39156A

PAD,ADIABATIC,92X231X0.3

39156-2334

$8.66

39156B

PAD,GENERATOR COVER

39156-2377

$46.69

39156C

PAD,30X60X30

39156-2385

$31.28

482

CIRCLIP-TYPE-E,8MM

482EA8000

$0.63

55028

COWLING,SIDE,RR,LH,E.B.GREEN

55028-0651-60R

$382.40

55028A

COWLING,SIDE,RR,RH,E.B.GREEN

55028-0652-60R

$405.24

55058

COWLING,SIDE,FR,LH,M.D.BLACK

55058-5068-17K

$603.61

55058A

COWLING,SIDE,FR,RH,M.D.BLACK

55058-5069-17K

$603.61

92015

NUT,WELL,5MM

92015-1757

$5.58

92152

COLLAR,5.2X9.5X30

92152-2448

$16.36

92153

BOLT,SOCKET,6MM

92153-0489

$2.84

92154

BOLT,SOCKET,5X16

92154-0209

$1.95

92154A

BOLT,SOCKET,5X45

92154-2934

$5.56

92172

SCREW,TAPPING,5X16

92172-0238

$0.84

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.36

92200A

WASHER,10.4X15.9X0.5

92200-0157

$1.57
