2018 Kawasaki Ninja H2™ SX Se Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2018 Kawasaki Ninja H2™ SX Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

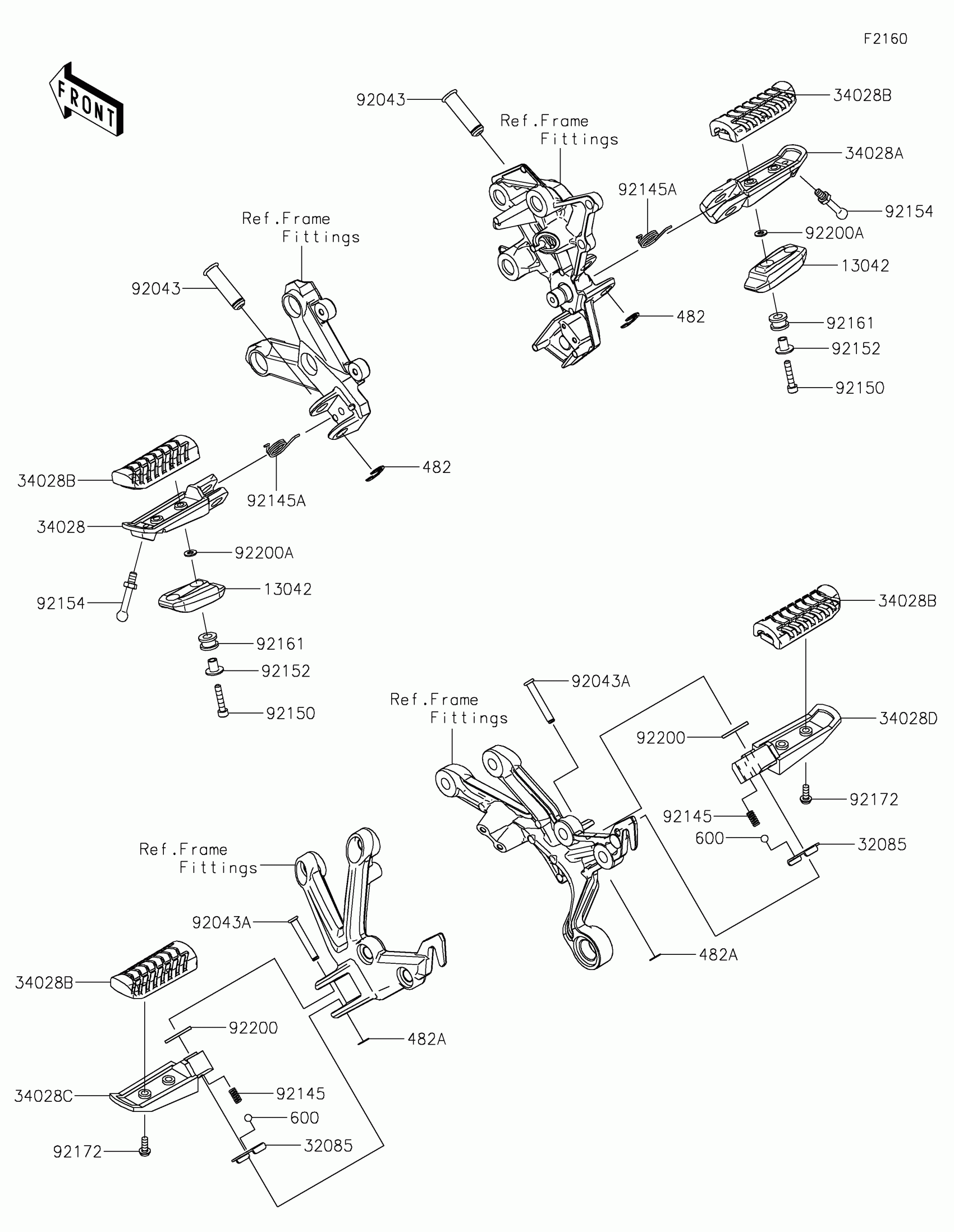

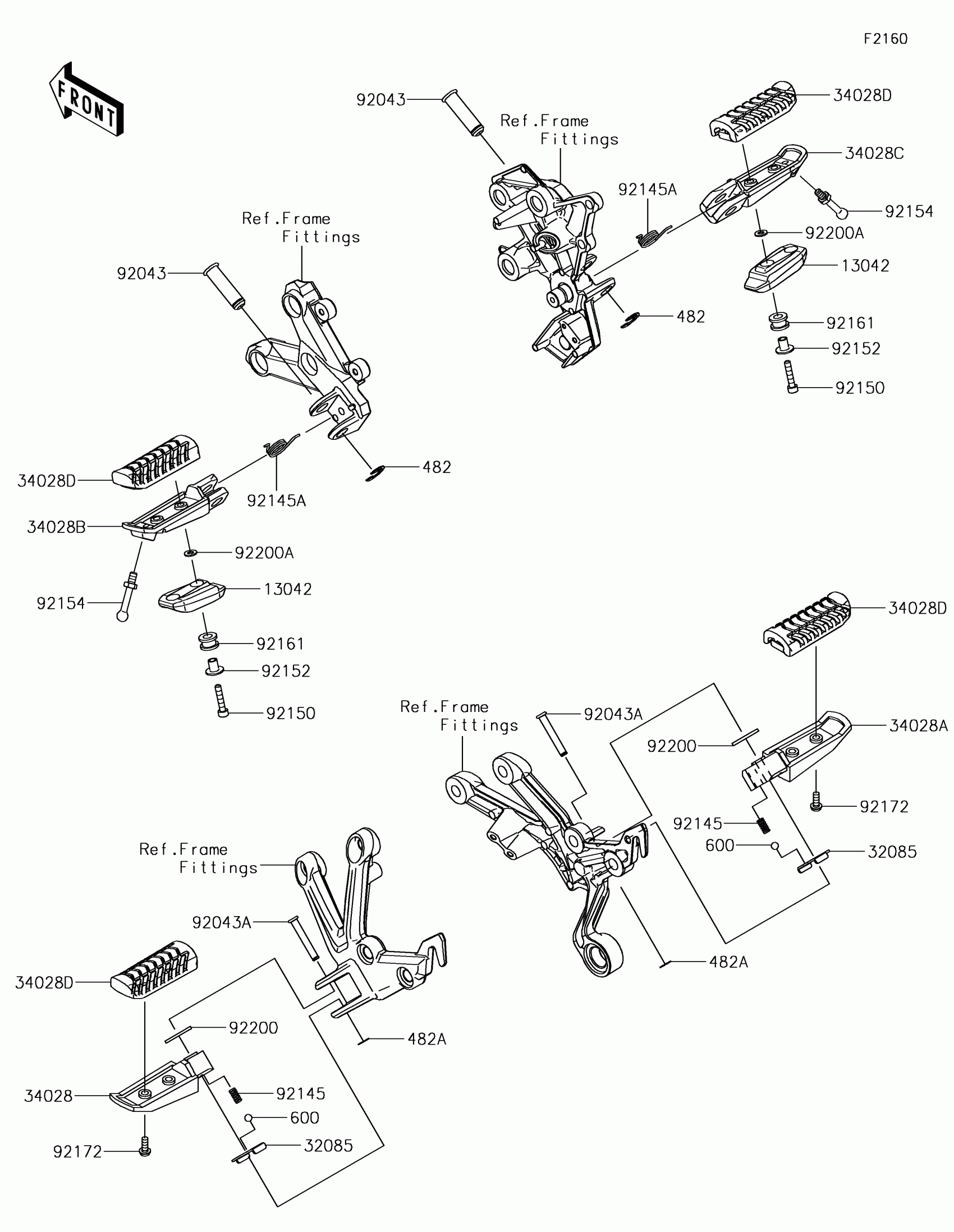

2018 Kawasaki Ninja H2™ SX Se Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13042

WEIGHT,STEP

13042-0773

1
Out of stock

32085

STOPPER,REAR STEP

32085-0047

1
Out of stock

34028

STEP,RR,LH

34028-0314

1
Out of stock

34028A

STEP,RR,RH

34028-0315

1
Out of stock

34028B

STEP,FR,LH

34028-0327

1
Out of stock

34028C

STEP,FR,RH

34028-0328

1
Out of stock

34028D

STEP,RUBBER

34028-0349

1
Out of stock

482

CIRCLIP-TYPE-E,10MM

482EA0100

1
Out of stock

482A

CIRCLIP-TYPE-E

482EA5000

1
Out of stock

600

BALL-STEEL,1/4

600A0800

1
Out of stock

92043

PIN,12X42.5

92043-1594

1
Out of stock

92043A

PIN,6X40

92043-1595

1
Out of stock

92145

SPRING

92145-1319

1
Out of stock

92145A

SPRING

92145-1828

1
Out of stock

92150

BOLT,SOCKET,5X25

92150-1684

1
Out of stock

92152

COLLAR

92152-1625

1
Out of stock

92154

BOLT,BANK SENSOR,6X10,MEC

92154-3814

1
Out of stock

92161

DAMPER,8X16X8

92161-2082

1
Out of stock

92172

SCREW,5X14

92172-0976

1
Out of stock

92200

WASHER,16X26X2.3

92200-0043

1
Out of stock

92200A

WASHER,5.3X11X1

92200-1929

1
Out of stock
