2025 Kawasaki Ninja H2®R ABS Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2025 Kawasaki Ninja H2®R ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

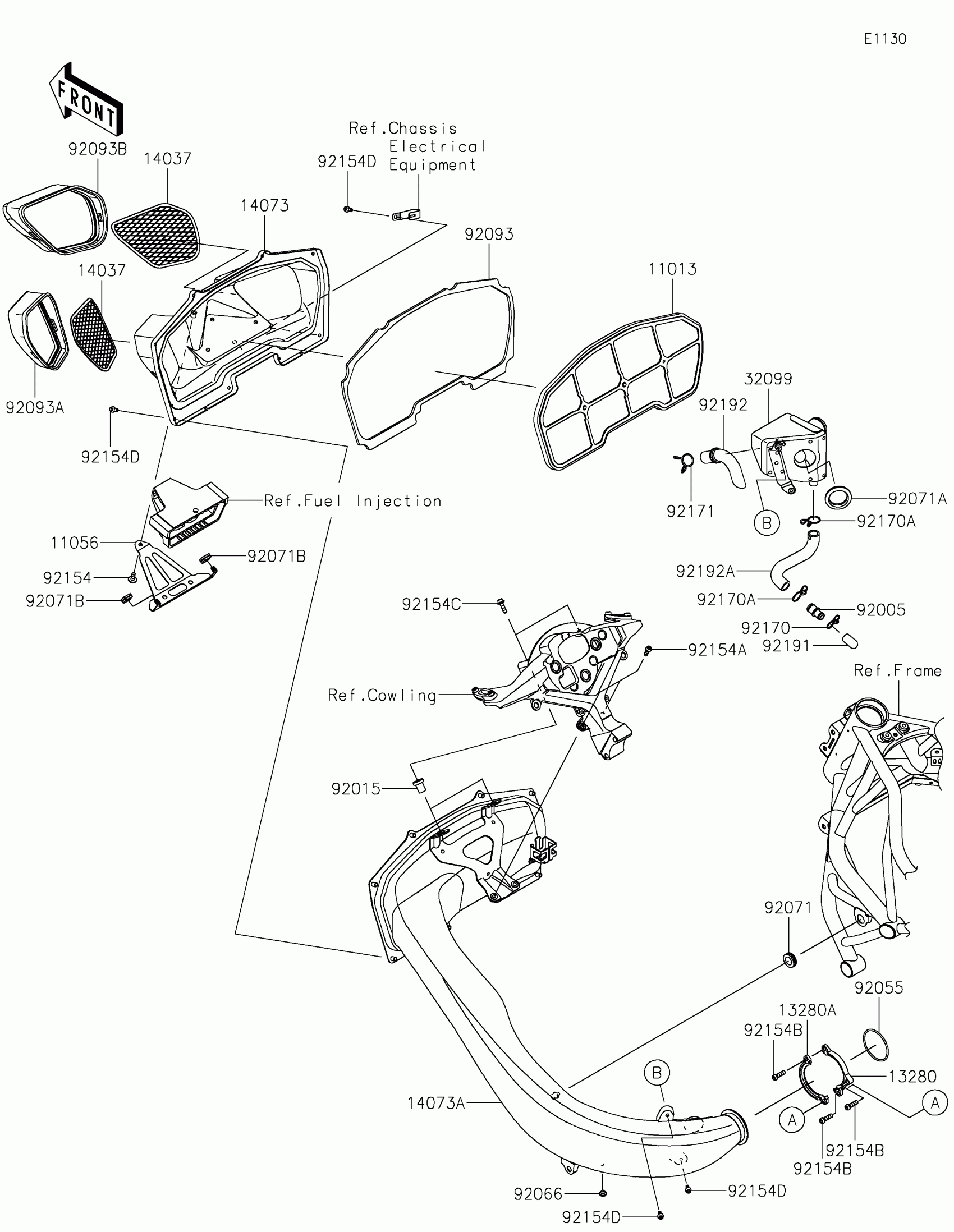

2025 Kawasaki Ninja H2®R ABS Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11013

ELEMENT-AIR FILTER

11013-0759

1
Out of stock

11056

BRACKET

11056-7050

1
Out of stock

13280

HOLDER

13280-0825

1
Out of stock

13280A

HOLDER

13280-0834

1
Out of stock

14037

SCREEN

14037-0772

1
Out of stock

14073

DUCT,RAM AIR,FR,CFRP

14073-0807

1
Out of stock

14073A

DUCT,RAM AIR,R.CARBON

14073-0850-53F

1
Out of stock

32099

CASE,REZONATOR,CFRP

32099-0764

1
Out of stock

92005

FITTING

92005-0776

1
Out of stock

92015

NUT,RUBBER,6MM

92015-1692

1
Out of stock

92055

RING-O

92055-0156

1
Out of stock

92066

PLUG

92066-0824

1
Out of stock

92071

GROMMET

92071-056

1
Out of stock

92071A

GROMMET

92071-0743

1
Out of stock

92071B

GROMMET

92071-0751

1
Out of stock

92093

SEAL

92093-0621

1
Out of stock

92093A

SEAL,COWLING,LH

92093-0623

1
Out of stock

92093B

SEAL,COWLING,RH

92093-0624

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-0907

1
Out of stock

92154A

BOLT,SOCKET,6X18

92154-1455

1
Out of stock

92154B

BOLT,SOCKET,6X22

92154-1456

1
Out of stock

92154C

BOLT,SOCKET,6X20

92154-1499

1
Out of stock

92154D

BOLT,SOCKET,6X12

92154-1538

1
Out of stock

92170

CLAMP

92170-1695

1
Out of stock

92170A

CLAMP

92170-1997

1
Out of stock

92171

CLAMP

92171-0391

1
Out of stock

92191

TUBE

92191-1704

1
Out of stock

92192

TUBE,BREATHER

92192-1395

1
Out of stock

92192A

TUBE,DRAIN

92192-1426

1
Out of stock
