2025 Kawasaki Ninja H2®R ABS Water Pipe Diagram

← All diagrams

Find the part on the Water Pipe diagram for your 2025 Kawasaki Ninja H2®R ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

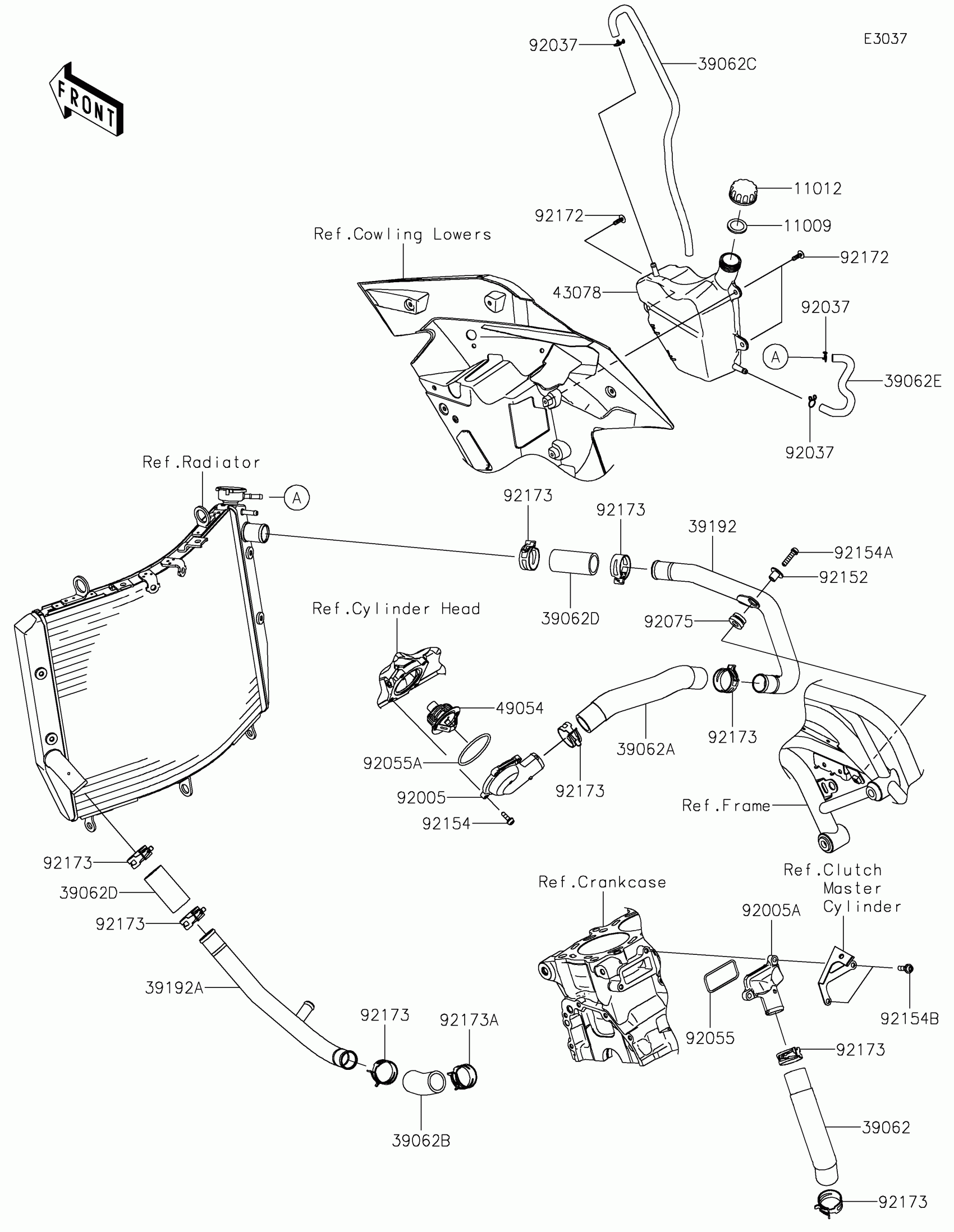

2025 Kawasaki Ninja H2®R ABS Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,RESERVOIR TANK CAP

11009-1145

1
Out of stock

11012

CAP

11012-1084

1
Out of stock

39062

1

$46.89

In stock

39062A

1

$43.15

In stock

39062B

1

$9.53

In stock

39062C

1

$9.29

In stock

39062D

1

$7.61

In stock

39062E

HOSE-COOLING,RETURN

39062-0718

1

$8.85

In stock

39192

1

$220.48

In stock

39192A

1

$209.24

In stock

43078

RESERVOIR

43078-0574

1
Out of stock

49054

THERMOSTAT

49054-0004

1
Out of stock

92005

FITTING,THERMO COVER

92005-0770

1
Out of stock

92005A

FITTING,CYLINDER

92005-0772

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92055

RING-O

92055-0809

1
Out of stock

92055A

RING-O,54.5X2.6

92055-0810

1
Out of stock

92075

DAMPER,RUBBER

92075-1123

1
Out of stock

92152

COLLAR

92152-2112

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-1449

1
Out of stock

92154A

BOLT,SOCKET,6X25

92154-1457

1
Out of stock

92154B

BOLT,SOCKET,6X20

92154-1499

1
Out of stock

92172

SCREW,TAPPING,5X16

92172-0175

1
Out of stock

92173

CLAMP,34MM

92173-1360

1
Out of stock

92173A

CLAMP

92173-2953

1
Out of stock
