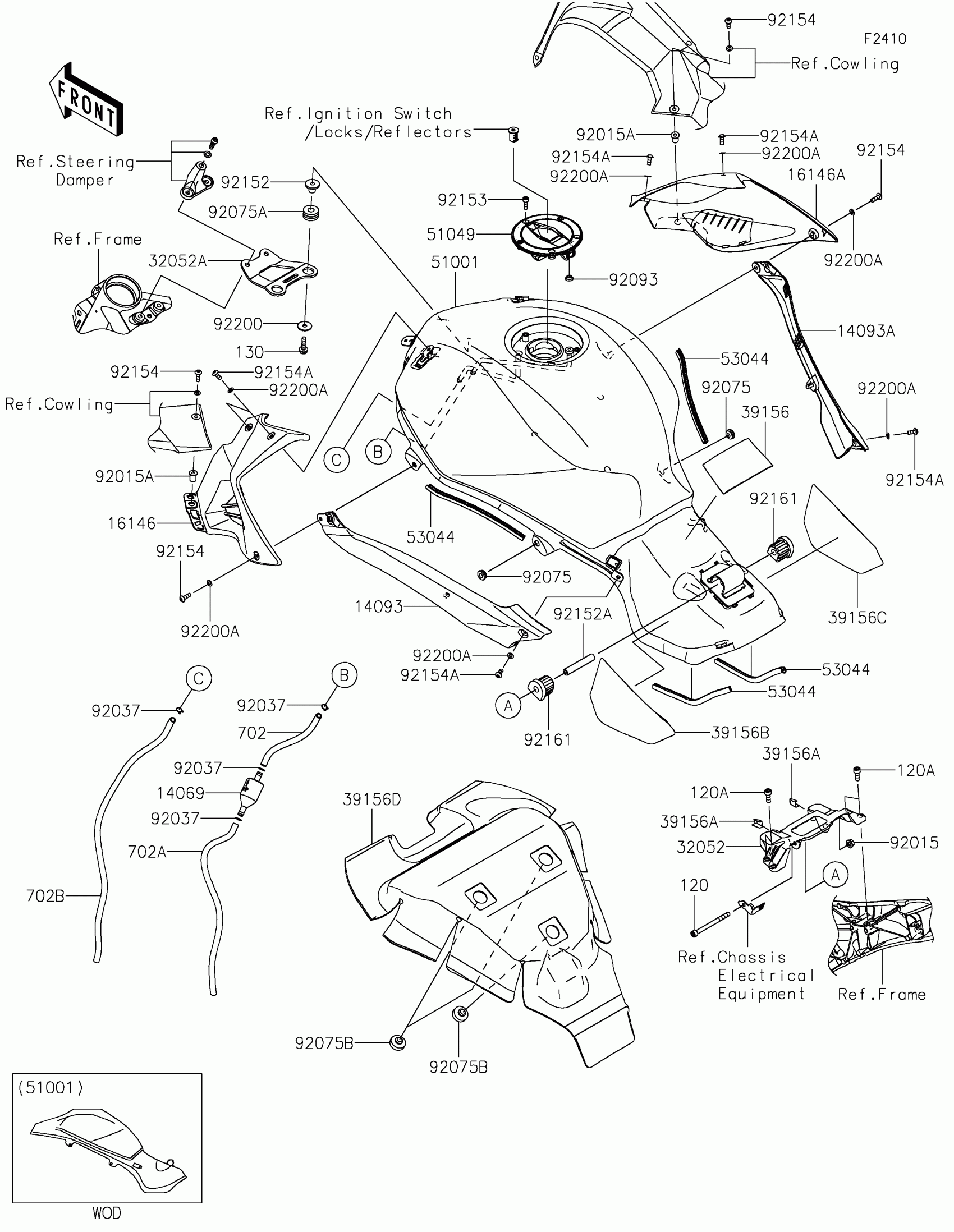

Kawasaki NINJA H2®R ABS Fuel Tank Diagram

#

Description
Price

14069

BREATHER,TANK

14069-0008

$5.97

14093

COVER,KNEE GRIP,LH

14093-0180

$55.13

14093A

COVER,KNEE GRIP,RH

14093-0181

$55.13

16146

COVER-ASSY,TANK,LH,M.C.M.S.BLK

16146-0780-60E

$528.13

16146A

COVER-ASSY,TANK,RH,M.C.M.S.BLK

16146-0781-60E

$528.13

32052

BRACKET-TANK,RR

32052-0763

$58.53

32052A

BRACKET-TANK,FR

32052-0764

$23.53

39156

PAD,RR FRM

39156-1778

$4.49

39156A

PAD,15X20X0.2

39156-1784

$0.98

39156B

PAD,FUEL TANK,LH

39156-1942

$19.97

39156C

PAD,FUEL TANK,RH

39156-1943

$19.97

39156D

PAD,FUEL TANK

39156-2940

$113.49

51001

TANK-COMP-FUEL,M.C.M.S.BLACK

51001-0913-60E

$2,417.76

51049

CAP-TANK,FUEL

51049-0758

$125.48

53044

TRIM,FUEL TANK

53044-0582

$2.85

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92015A

NUT,WELL,5MM

92015-1757

$5.58

92037

CLAMP,TUBE

92037-010

$2.99

92075

DAMPER,6X16X7

92075-1011

$5.61

92075A

DAMPER,10X24X12

92075-1690

$3.81

92075B

DAMPER,9X24X14

92075-281

$4.67

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92152

COLLAR,6.3X10X14.5

92152-0091

$8.91

92152A

COLLAR,6X10X60.2

92152-1964

$17.25

92153

BOLT,SOCKET,5X16

92153-1616

$1.04

92154

BOLT,SOCKET,5X16

92154-1560

$1.77

92154A

BOLT,SOCKET,5X12

92154-1561

$2.05

92161

DAMPER,FUEL TANK

92161-1737

$4.98

92200

WASHER,6.5X22X1.6

92200-1087

$3.01

92200A

WASHER,5.2X10X1.0

92200-1820

$0.60

120

BOLT-SOCKET,6X75

120CA0675

$2.28

120A

BOLT-SOCKET,6X16

120CB0616

$1.00

130

BOLT-FLANGED,6X22

130CA0622

$1.90

702

TUBE-RUBBER,6X9X140

702A06140

$1.66

702A

TUBE-RUBBER,6X9X330

702A06330

$3.29

702B

TUBE-RUBBER,6X9X470

702A06470

$4.58
