2025 Kawasaki Ninja H2®R ABS Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2025 Kawasaki Ninja H2®R ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

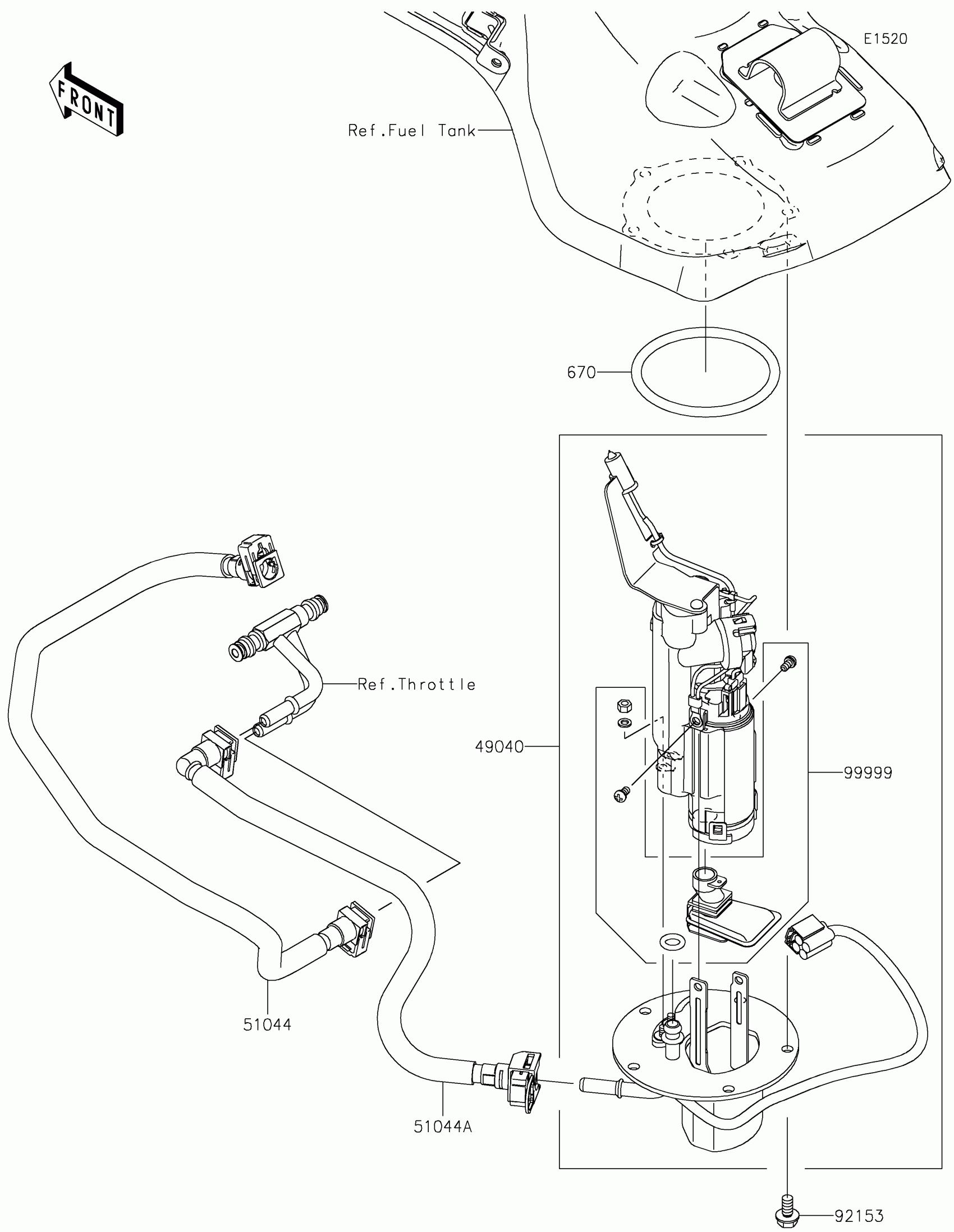

2025 Kawasaki Ninja H2®R ABS Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

49040

PUMP-FUEL

49040-0821

1
Out of stock

51044

TUBE-ASSY

51044-0860

1
Out of stock

51044A

TUBE-ASSY

51044-0861

1
Out of stock

92153

BOLT,FLANGED,6X12

92153-1283

1
Out of stock

99999

KIT,FUEL FILTER

99999-0520

1
Out of stock

670

O RING

670E5075

1
Out of stock
