2025 Kawasaki Ninja H2®R ABS Fuel Injection Diagram

← All diagrams

Find the part on the Fuel Injection diagram for your 2025 Kawasaki Ninja H2®R ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

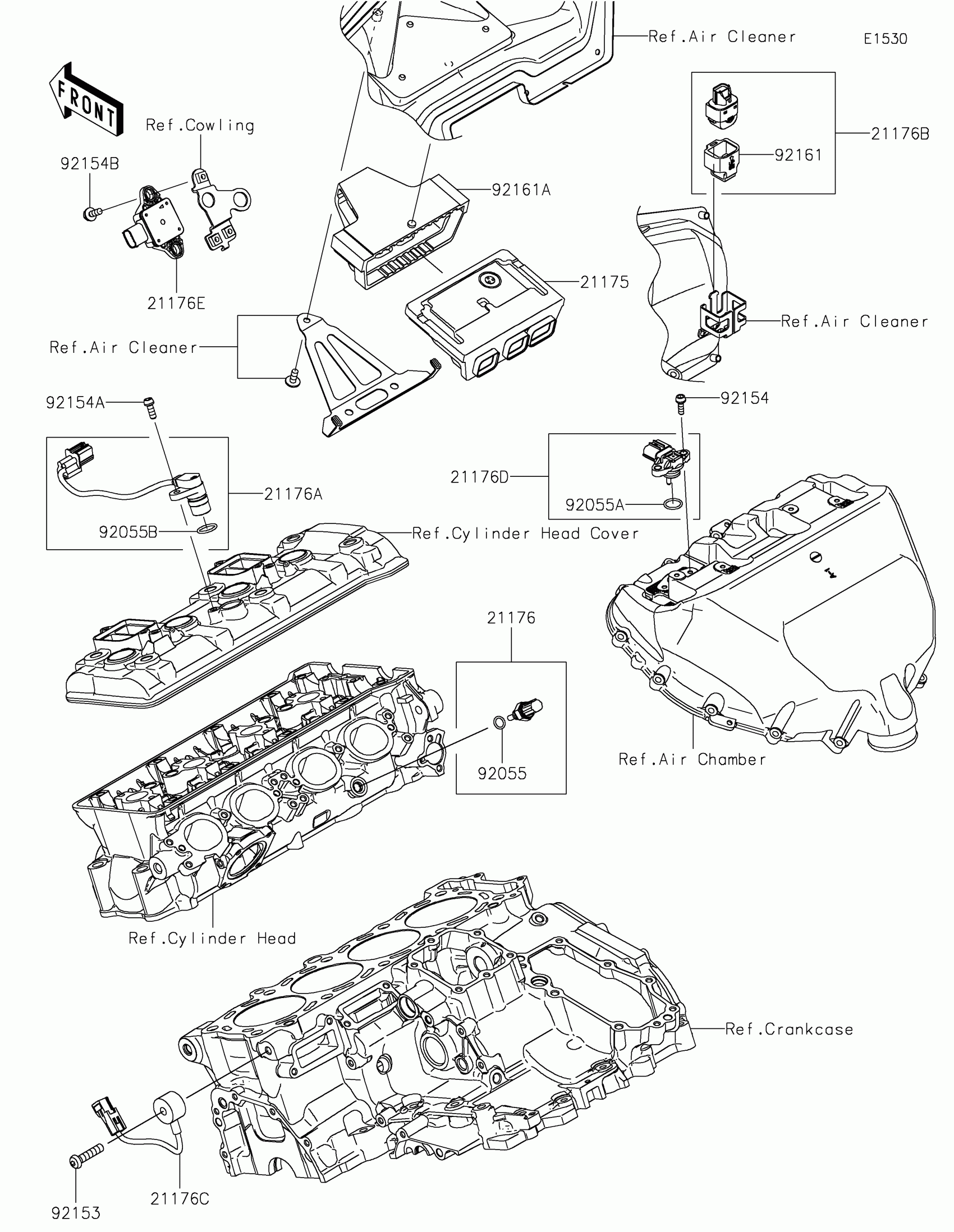

2025 Kawasaki Ninja H2®R ABS Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21175

CONTROL UNIT-ELECTRONIC

21175-1237

1
Out of stock

21176

SENSOR,WATER TEMP

21176-0009

1
Out of stock

21176A

SENSOR,CAM

21176-0101

1
Out of stock

21176B

SENSOR,VEHICLE-DOWN

21176-0704

1
Out of stock

21176C

SENSOR,KNOCK

21176-0788

1
Out of stock

21176D

SENSOR,INTAKE TEMP&PRESSURE

21176-0791

1
Out of stock

21176E

SENSOR,GYRO

21176-0819

1
Out of stock

92055

RING-O,9.5X1.9

92055-0016

1
Out of stock

92055A

RING-O

92055-0842

1
Out of stock

92055B

RING-O

92055-1639

1
Out of stock

92153

BOLT,SOCKET,8X35

92153-0419

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-1449

1
Out of stock

92154A

BOLT,SOCKET,6X16

92154-1454

1
Out of stock

92154B

BOLT,FLANGED,6X16

92154-1851

1
Out of stock

92161

DAMPER

92161-0951

1
Out of stock

92161A

DAMPER,ECU

92161-1719

1

$30.18

In stock
