2016 Kawasaki Ninja H2™ Oil Pump/oil Filter Diagram

← All diagrams

Find the part on the Oil Pump/oil Filter diagram for your 2016 Kawasaki Ninja H2™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

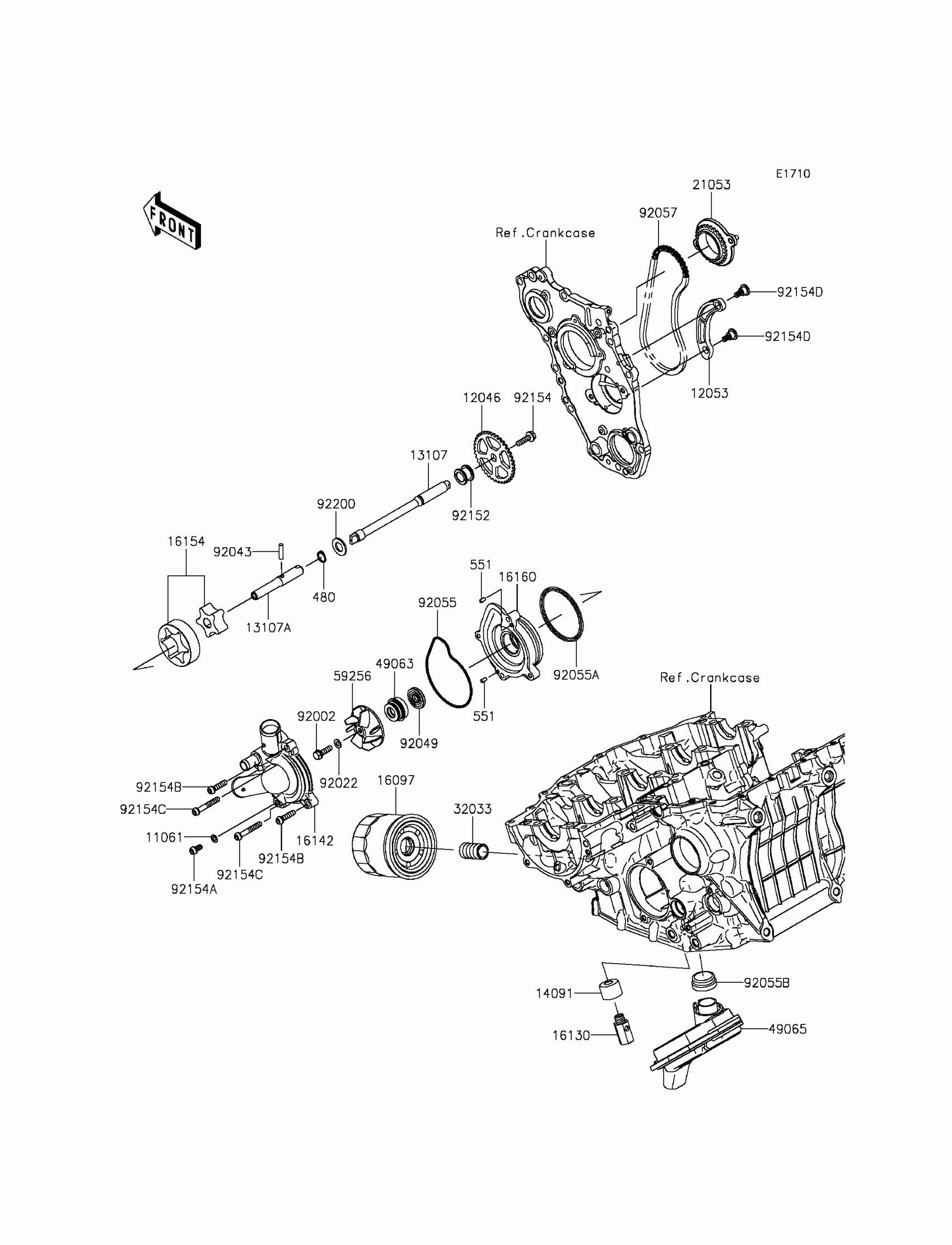

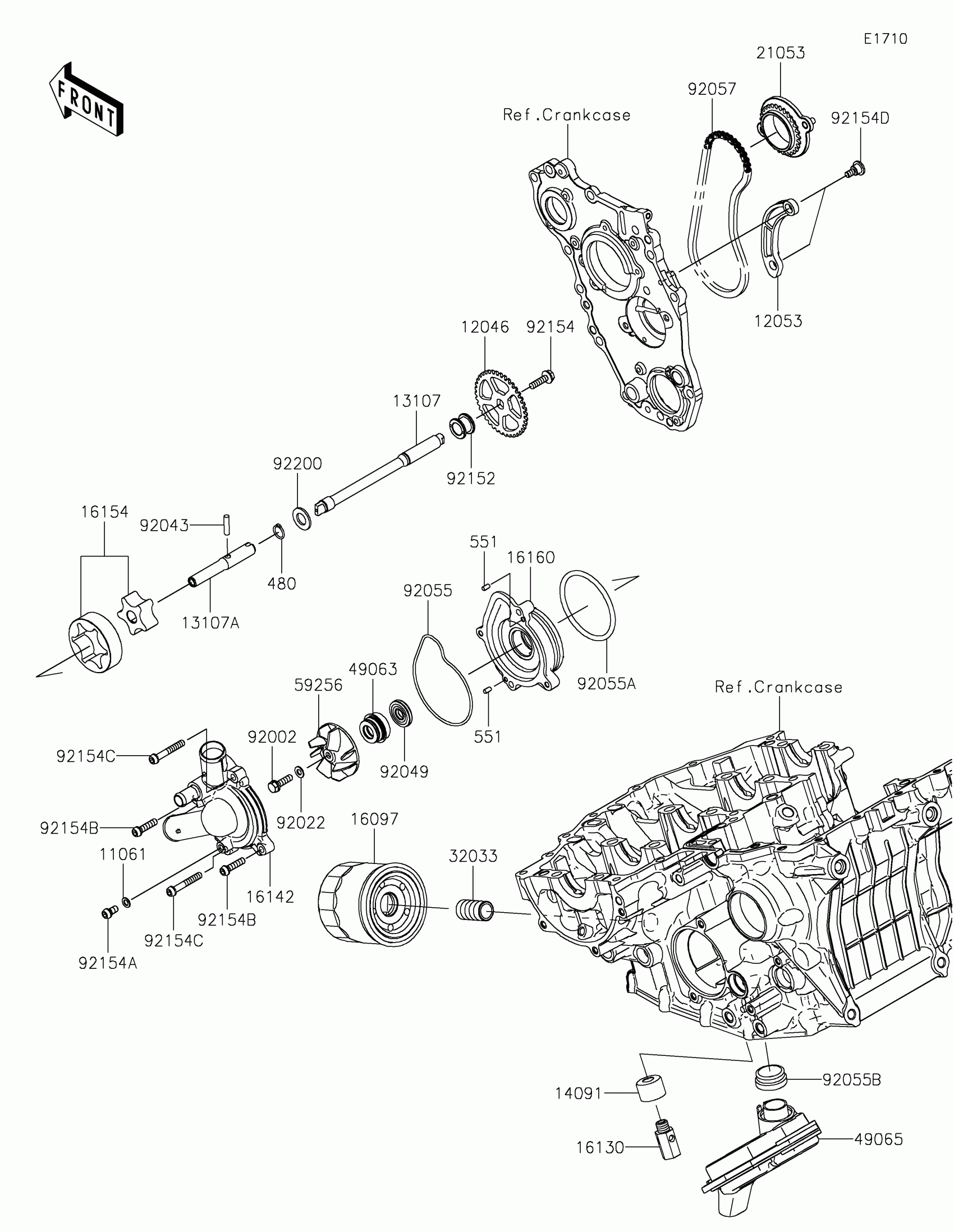

2016 Kawasaki Ninja H2™ Oil Pump/oil Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

480

CIRCLIP-TYPE-C,13MM

480J1300

1
Out of stock

551

PIN-DOWEL,4X8

551A0408

1
Out of stock

11061

GASKET

11061-0107

1
Out of stock

12046

SPROCKET,OIL PUMP,38T

12046-0094

1
Out of stock

12053

GUIDE-CHAIN

12053-0218

1
Out of stock

13107

SHAFT,RH

13107-0809

1
Out of stock

13107A

SHAFT,LH

13107-0810

1
Out of stock

14091

COVER,VALVE

14091-0497

1
Out of stock

16097

FILTER-ASSY-OIL

16097-0009

1
Out of stock

16130

VALVE-ASSY-RELIEF

16130-0005

1
Out of stock

16142

COVER-PUMP,WATER

16142-0733

1
Out of stock

16154

ROTOR-PUMP,OIL

16154-0723

1
Out of stock

16160

BODY,WATER PUMP

16160-0786

1
Out of stock

21053

SPROCKET-ASSY,PUMP DRIVE,29T

21053-0007

1
Out of stock

32033

PIPE,OIL FILTER

32033-1535

1
Out of stock

49063

SEAL-MECHANICAL

49063-1055

1
Out of stock

49065

FILTER-OIL

49065-0037

1
Out of stock

59256

IMPELLER

59256-0011

1
Out of stock

92002

BOLT,6X22

92002-1154

1
Out of stock

92022

WASHER OIL PUMP BANJO

92022-077

1
Out of stock

92043

PIN,5X21.8

92043-1518

1
Out of stock

92049

SEAL-OIL

92049-0778

1
Out of stock

92055

RING-O,WATER PUMP

92055-0208

1
Out of stock

92055A

RING-O,68.2X2.4

92055-1338

1
Out of stock

92055B

RING-O,OIL FILTER

92055-1503

1
Out of stock

92057

CHAIN,92RH2005-76M

92057-0635

1
Out of stock

92152

COLLAR

92152-1935

1
Out of stock

92154

BOLT,FLANGED,6X22

92154-0387

1
Out of stock

92154A

BOLT,SOCKET,6X12

92154-1453

1
Out of stock

92154B

BOLT,SOCKET,6X25

92154-1457

1
Out of stock

92154C

BOLT,SOCKET,6X40

92154-1459

1
Out of stock

92154D

BOLT

92154-1651

1
Out of stock

92200

WASHER,13X24X2

92200-0451

1
Out of stock
