2016 Kawasaki Ninja H2™ Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2016 Kawasaki Ninja H2™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

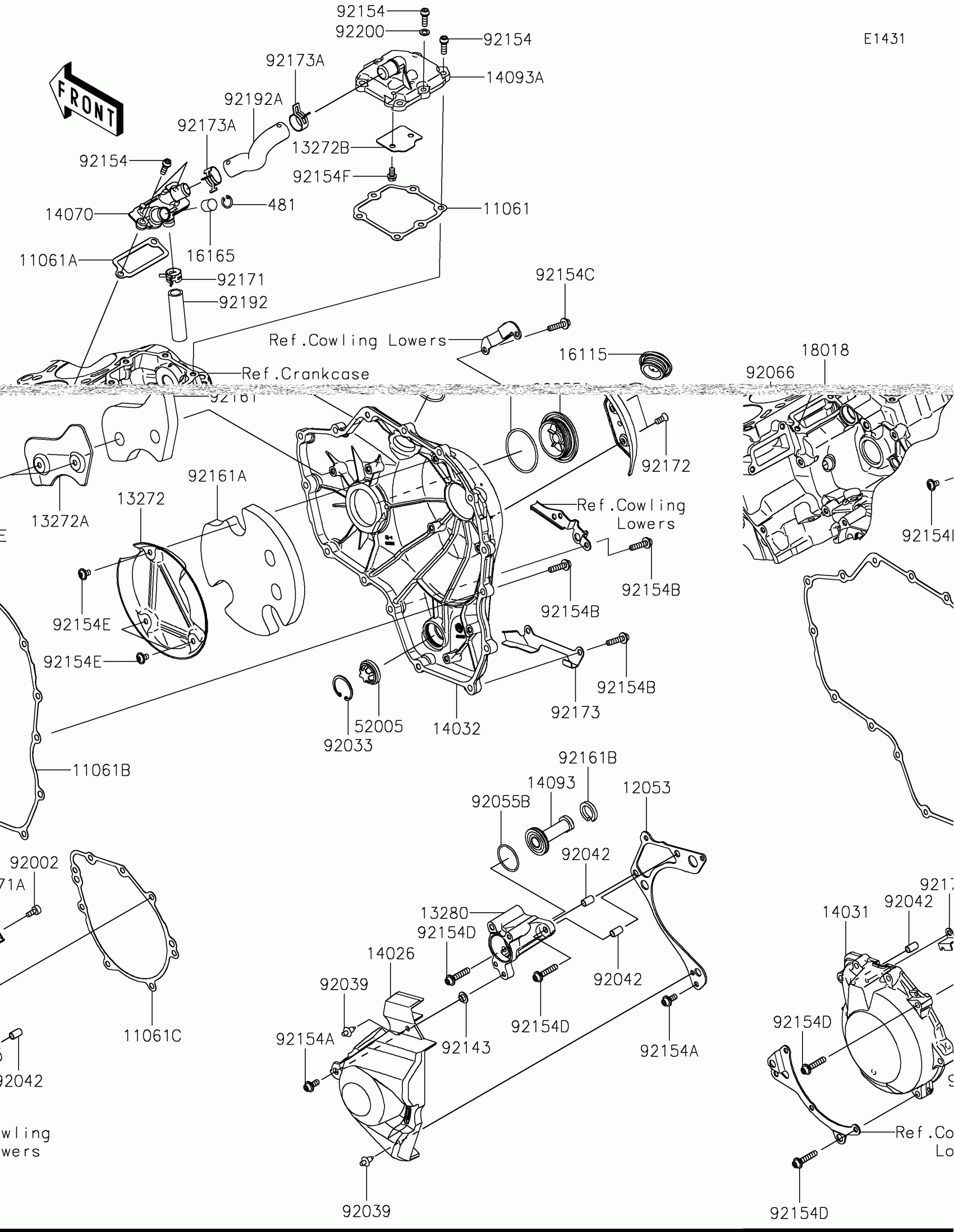

2016 Kawasaki Ninja H2™ Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,BALANCER COVER

11061-0941

1
Out of stock

11061A

GASKET,BREATHER

11061-0942

1
Out of stock

11061B

GASKET,CLUTCH COVER

11061-0944

1
Out of stock

11061C

GASKET,GENERATOR COVER

11061-0945

1
Out of stock

12053

GUIDE-CHAIN

12053-0221

1
Out of stock

13272A

PLATE

13272-1853

1
Out of stock

13272B

PLATE

13272-1854

1
Out of stock

13272C

PLATE

13272-1901

1
Out of stock

13280

HOLDER

13280-0800

1
Out of stock

14026

COVER-CHAIN

14026-0119

1
Out of stock

14031

COVER-GENERATOR

14031-0593

1
Out of stock

14032A

COVER-CLUTCH

14032-0625

1
Out of stock

14041

COVER-COMP

14041-0593

1
Out of stock

14070

BODY-BREATHER

14070-0010

1
Out of stock

14093

COVER,ROD

14093-0293

1
Out of stock

16115

CAP-OIL FILLER

16115-0030

1
Out of stock

16165

SEPARATOR

16165-0011

1
Out of stock

18018

PLATE-HEAT GUARD

18018-0590

1
Out of stock

52005

GAUGE

52005-1120

1
Out of stock

92002

BOLT,SOCKET,6X12

92002-1796

1
Out of stock

92033

RING-SNAP

92033-1305

1
Out of stock

92039

RIVET

92039-0068

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92055

RING-O,49.7X2.4

92055-0183

1
Out of stock

92055A

RING-O,31.5X2.6

92055-049

1
Out of stock

92066

PLUG

92066-0800

1
Out of stock

92143

COLLAR

92143-1331

1
Out of stock

92154

BOLT,SOCKET,6X18

92154-1455

1
Out of stock

92154A

BOLT,SOCKET,6X14

92154-1460

1
Out of stock

92154B

BOLT,SOCKET,6X25

92154-1461

1
Out of stock

92154C

BOLT,SOCKET,6X25

92154-1462

1
Out of stock

92154D

BOLT,SOCKET,6X30

92154-1463

1
Out of stock

92154E

BOLT,SOCKET,6X10

92154-1551

1
Out of stock

92161A

DAMPER

92161-1718

1
Out of stock

92161B

DAMPER

92161-1771

1
Out of stock

92161C

DAMPER

92161-1782

1
Out of stock

92170

CLAMP

92170-1060

1
Out of stock

481

CIRCLIP-TYPE-C

481J1400

1
Out of stock

92171

CLAMP

92171-0533

1
Out of stock

92171A

CLAMP

92171-0938

1
Out of stock

92172

SCREW,TORX,6X14

92172-0901

1
Out of stock

92173

CLAMP

92173-1387

1
Out of stock

92192

TUBE,BREATHER IN-SIDE

92192-1432

1
Out of stock

92192A

TUBE,BREATHER OUT-SIDE

92192-1440

1
Out of stock

92200

WASHER,6.8X11.5X1.0

92200-1461

1
Out of stock
