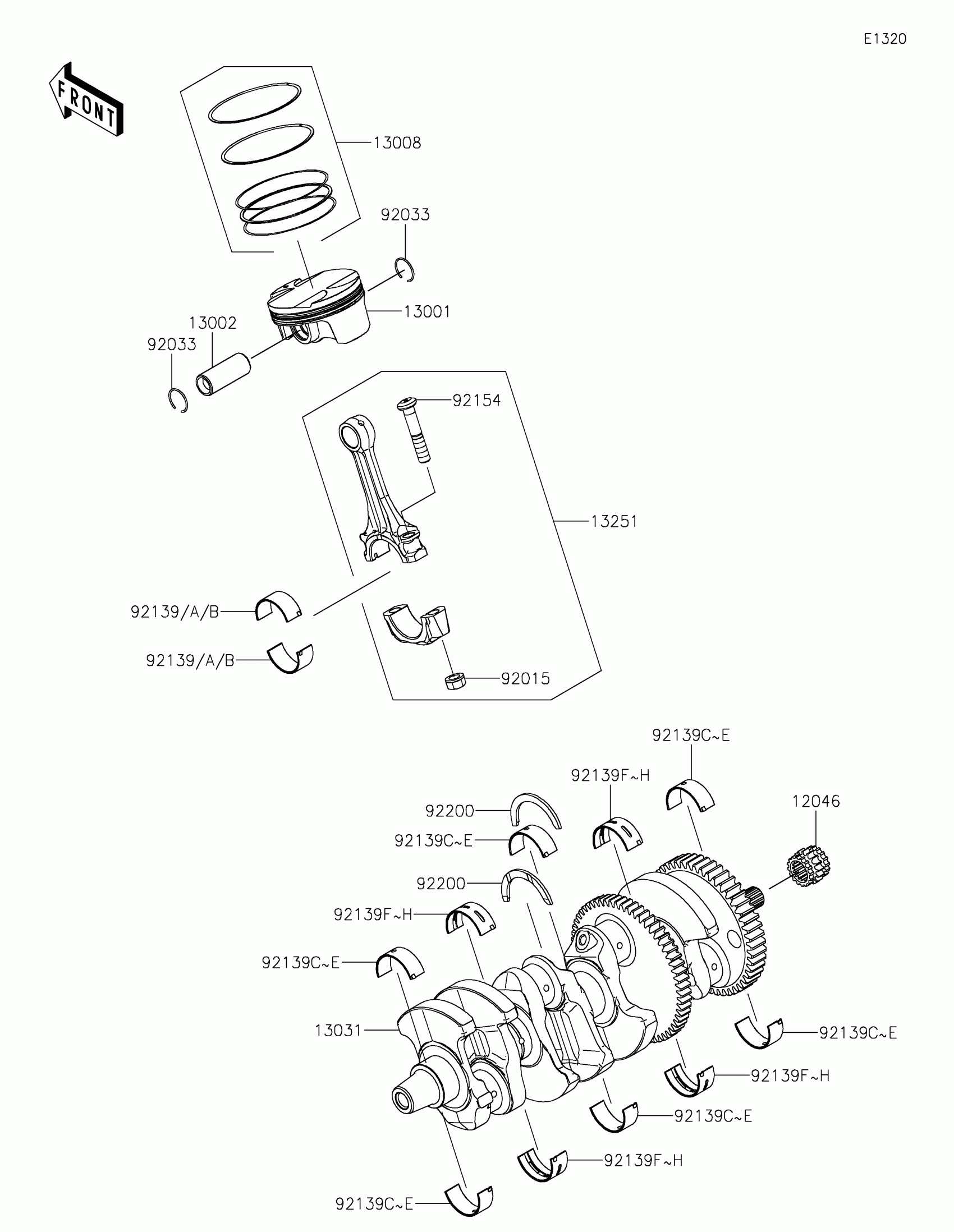

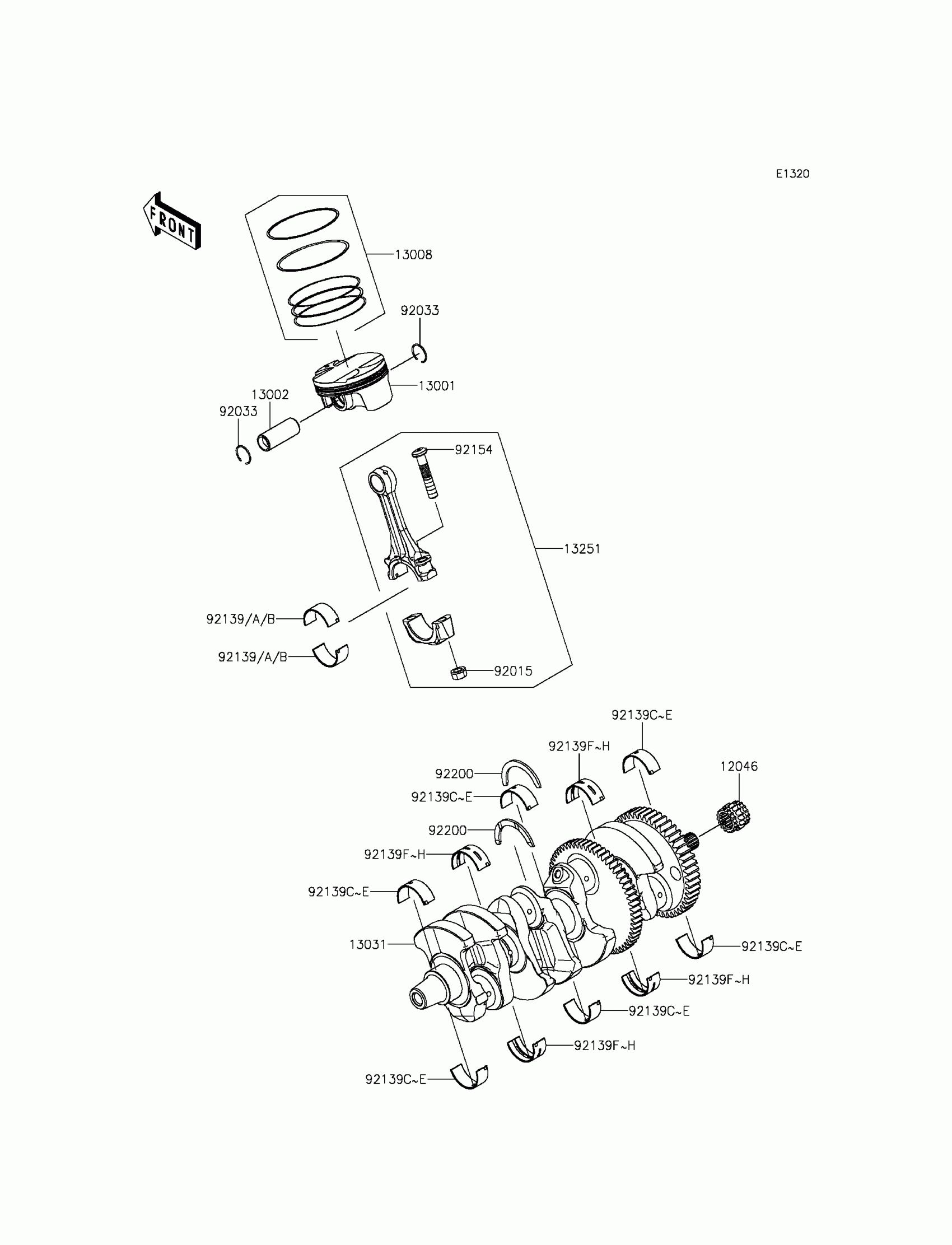

2016 Kawasaki Ninja H2™ Crankshaft/piston Diagram

← All diagrams

Find the part on the Crankshaft/piston diagram for your 2016 Kawasaki Ninja H2™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Ninja H2™ Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12046

SPROCKET,16T

12046-0033

1
Out of stock

13001

PISTON-ENGINE

13001-0764

1
Out of stock

13002

PIN-PISTON

13002-0043

1
Out of stock

13008

RING-SET-PISTON

13008-0560

1
Out of stock

13031

CRANKSHAFT-COMP

13031-0802

1
Out of stock

13251

ROD-ASSY-CONNECTING,I

13251-0045-II

1
Out of stock

92015

NUT,CONNECTING ROD

92015-1559

1
Out of stock

92033

RING-SNAP,20.5X1.2

92033-1099

1
Out of stock

92139

BUSHING,CON-ROD,BLUE

92139-0818

1
Out of stock

92139A

BUSHING,CON-ROD,BLACK

92139-0819

—
Out of stock

92139B

BUSHING,CON-ROD,BROWN

92139-0820

—
Out of stock

92139C

BUSHING,#1,BLUE

92139-0821

1
Out of stock

92139D

BUSHING,#1,BLACK

92139-0822

—
Out of stock

92139E

BUSHING,#1,BROWN

92139-0823

—
Out of stock

92139F

BUSHING,#2,BLUE

92139-0824

1
Out of stock

92139G

BUSHING,#2,BLACK

92139-0825

—
Out of stock

92139H

BUSHING,#2,BROWN

92139-0826

—
Out of stock

92154

BOLT,CON-ROD,9X47.5

92154-1367

1
Out of stock

92200

WASHER,T=2.5

92200-0744

1
Out of stock
