2016 Kawasaki Ninja H2™ Crankcase Bolt Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt Pattern diagram for your 2016 Kawasaki Ninja H2™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

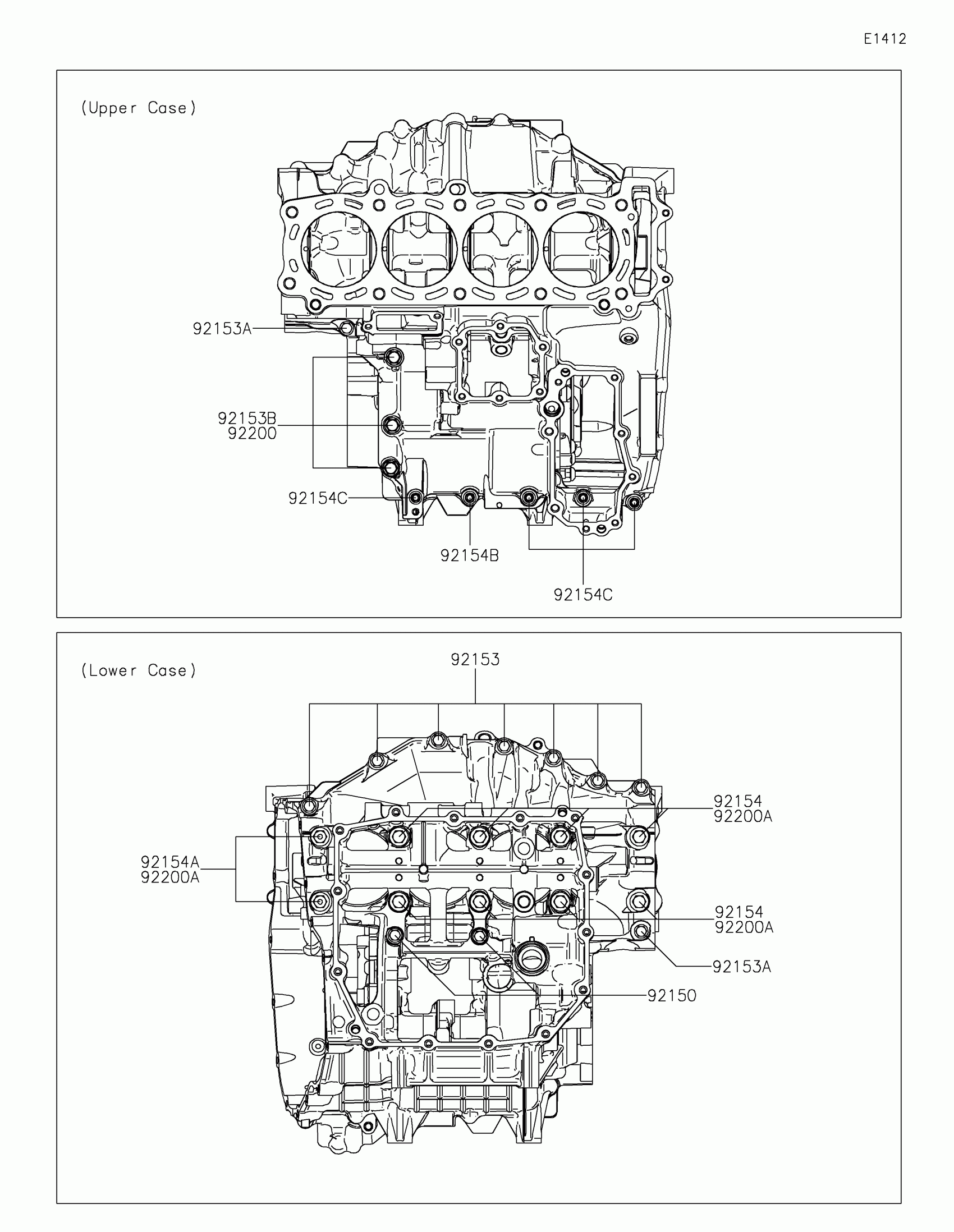

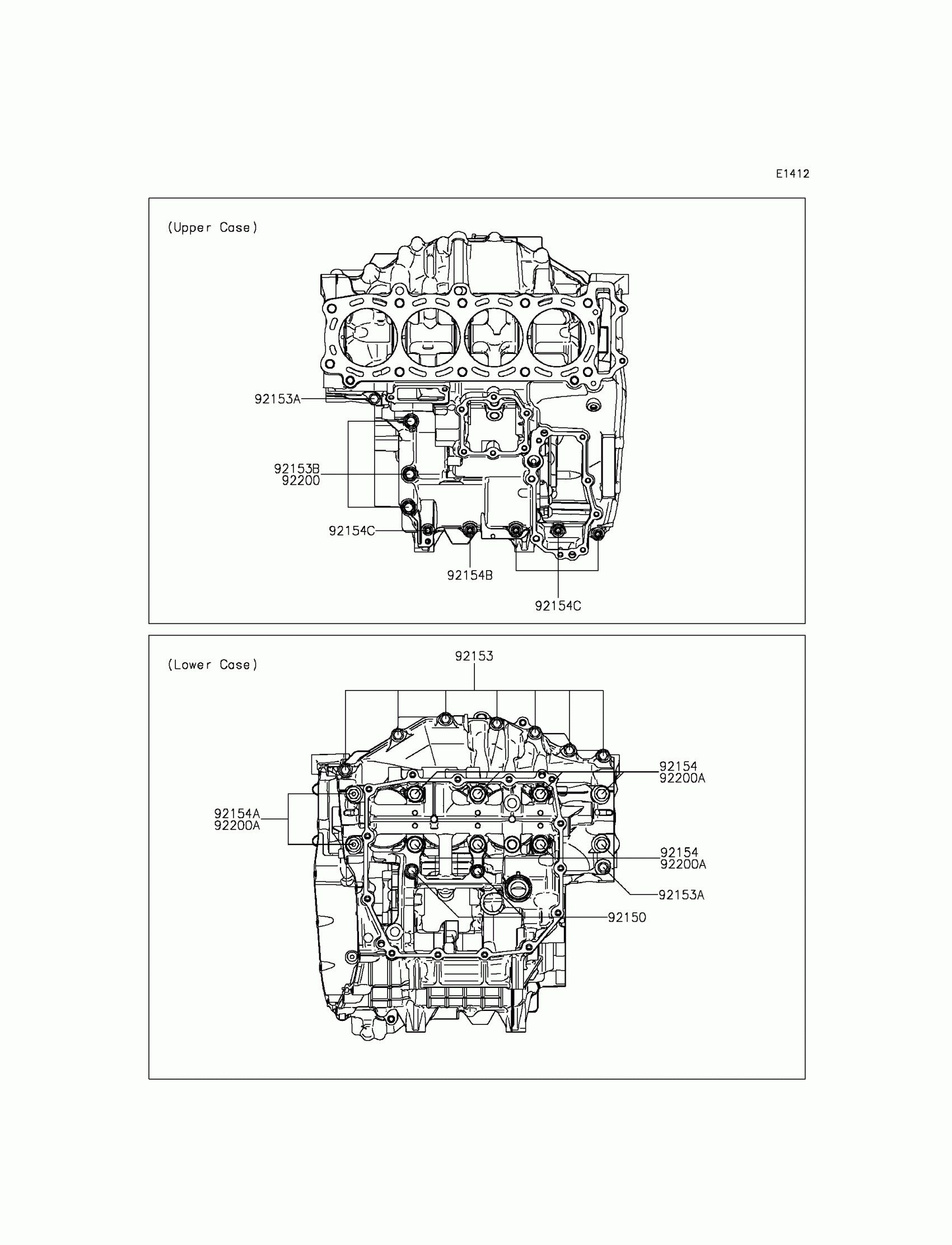

2016 Kawasaki Ninja H2™ Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92150

BOLT,FLANGED,7X85

92150-1251

1

$10.63

In stock

92153

BOLT,FLANGED,7X45

92153-1041

1
Out of stock

92153A

BOLT,FLANGED,7X60

92153-1045

1
Out of stock

92153B

BOLT,8X63

92153-1110

1
Out of stock

92154

BOLT,FLANGED,10X100

92154-1446

1

$12.00

In stock

92154A

BOLT,FLANGED,10X120

92154-1447

1

$13.42

In stock

92154B

BOLT,SOCKET,6X30

92154-1463

1

$1.47

In stock

92154C

BOLT,SOCKET,6X40

92154-1465

1

$2.44

In stock

92200

WASHER,8.2X16X1.6

92200-0047

1
Out of stock

92200A

WASHER,10.2X18.4X1.8

92200-0990

1
Out of stock
← Crankcase Crankshaft/piston →
