2016 Kawasaki Ninja H2™ Cylinder Head Cover Diagram

← All diagrams

Find the part on the Cylinder Head Cover diagram for your 2016 Kawasaki Ninja H2™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

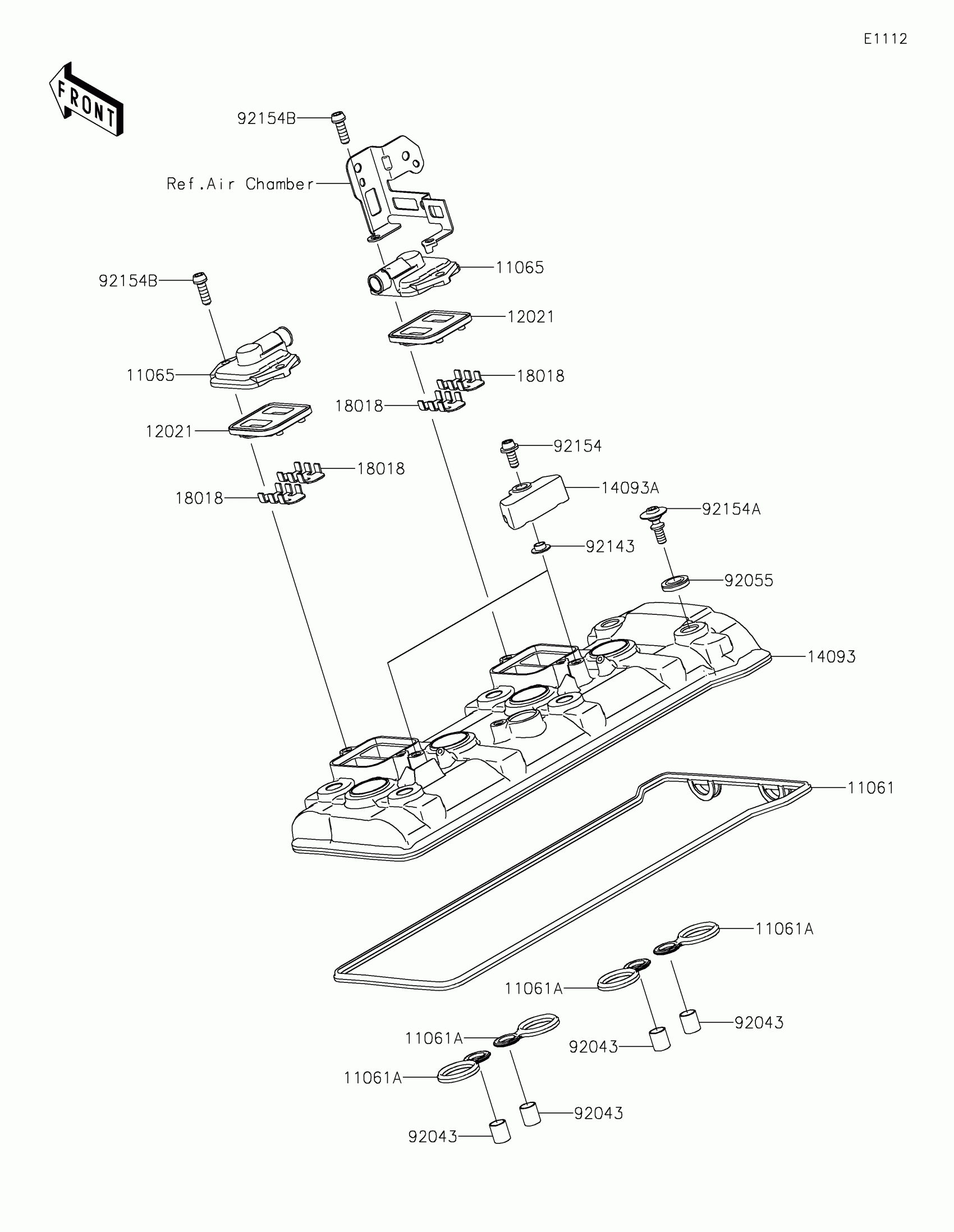

2016 Kawasaki Ninja H2™ Cylinder Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,HEAD COVER

11061-0979

1
Out of stock

11061B

GASKET,PLUG HOLE

11061-1185

1
Out of stock

11065

CAP,ASV

11065-0869

1
Out of stock

12021

VALVE-ASSY-REED

12021-0021

1
Out of stock

14093

COVER,HEAD

14093-0092

1
Out of stock

14093A

COVER

14093-0291

1
Out of stock

18018

PLATE-HEAT GUARD

18018-0591

1
Out of stock

92043

PIN,10.1X12X14

92043-4009

1
Out of stock

92055

RING-O

92055-0820

1
Out of stock

92143

COLLAR

92143-1331

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-1460

1
Out of stock

92154A

BOLT

92154-1468

1
Out of stock

92154B

BOLT,SOCKET,6X18

92154-1498

1
Out of stock
