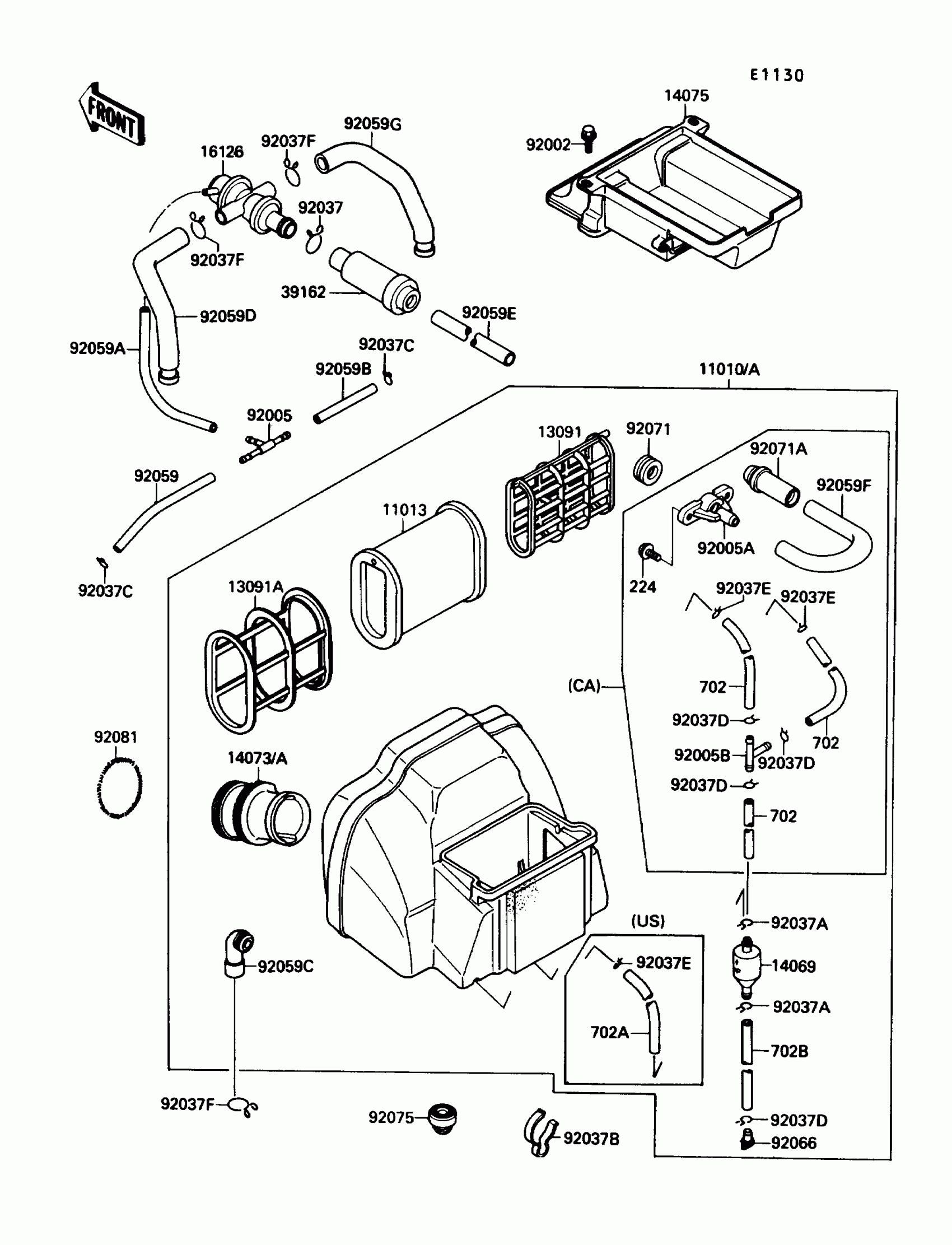

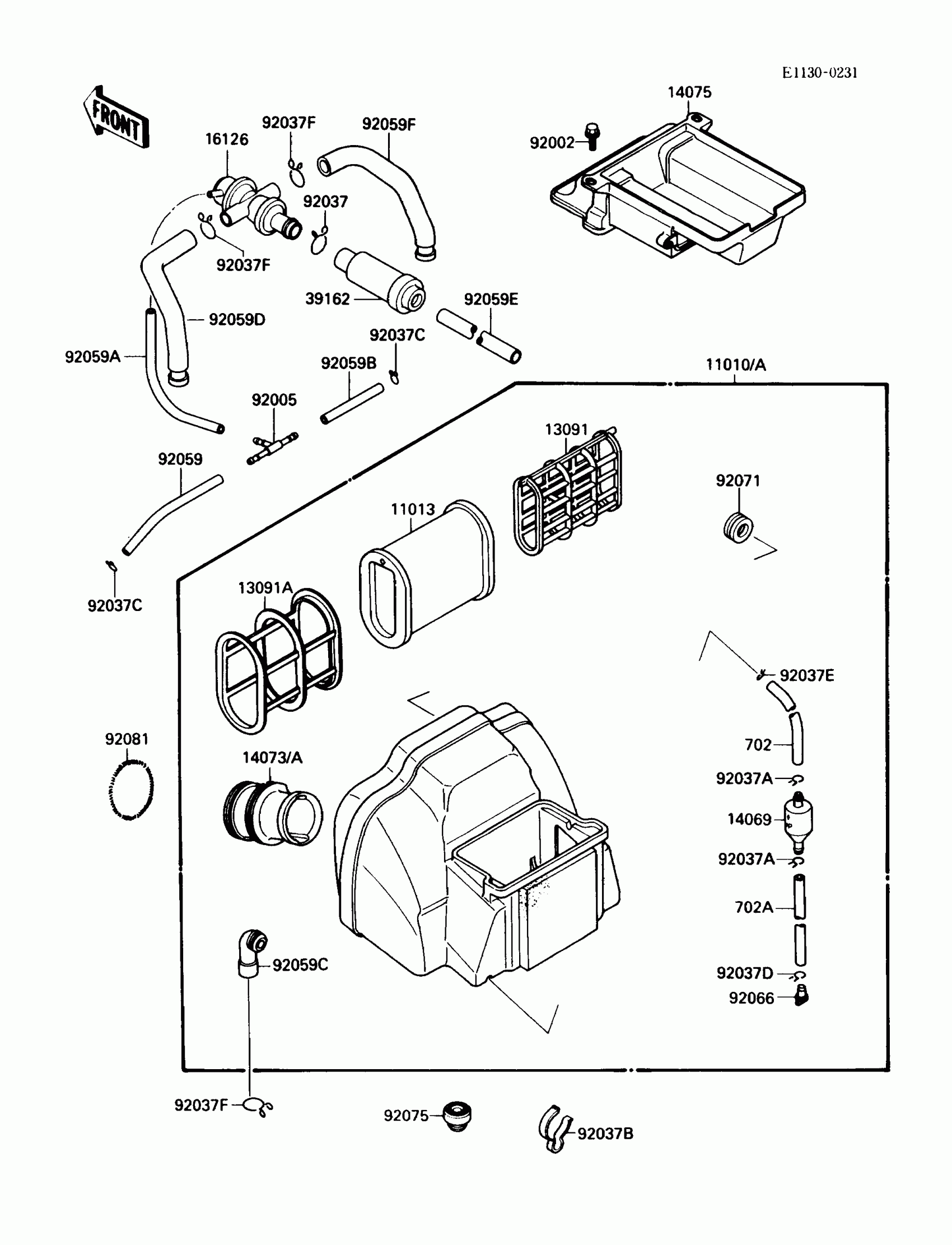

Kawasaki Ninja® 750R Air Cleaner Diagram

#

Description
Price

11010

FILTER-ASSY-AIR

11010-1306

Unavailable

11013

ELEMENT-AIR FILTER

11013-1154

$31.07

13091

HOLDER,ELEMENT

13091-1467

$16.54

13091A

HOLDER,ELEMENT

13091-1468

$15.51

14069

BREATHER

14069-1051

$7.76

14073

DUCT,#1,#4

14073-1277

$66.04

14073A

DUCT,#2,#3

14073-1278

$74.92

14075

CAP-ASSY,AIR FILTER

14075-1070

Unavailable

16126

VALVE,AIR SWITCH

16126-1104

$197.28

39162

SILENCER-INTAKE

39162-1003

$69.57

92002

BOLT,6X16

92002-1720

$3.85

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92037

CLAMP,TUBE

92037-1076

$7.14

92037A

CLAMP,TUBE

92037-147

$5.61

92037B

CLAMP,HOSE

92037-1552

$9.63

92037C

CLAMP

92037-1610

$1.42

702

TUBE-RUBBER,7X10X200

702A07200

$10.11

702A

TUBE-RUBBER

702A07240

$10.11

92037D

CLAMP

92037-1712

$3.81

92037E

CLAMP,TUBE

92037-1972

$3.29

92037F

CLAMP,TUBE

92037-213

$3.29

92059

TUBE,4X9X190

92059-1032

$14.40

92059A

TUBE,4X9X290

92059-1043

$9.85

92059B

TUBE,4X9X100

92059-1058

$14.40

92059C

TUBE,BREATHER

92059-1716

Unavailable

92059D

TUBE,AIR SWITCH-HEAD,LH

92059-1717

$21.95

92059E

TUBE,AIR SWITCH-AIR FILTER

92059-1718

Unavailable

92059F

TUBE,AIR SWITCH-HEAD,RH

92059-1765

$13.88

92066

PLUG,DRAIN

92066-1211

$6.48

92071

GROMMET,AIR FILTER

92071-1028

$5.55

92075

DAMPER

92075-1045

$6.75

92081

SPRING,AIR FILTER DUCT

92081-1422

$9.84
