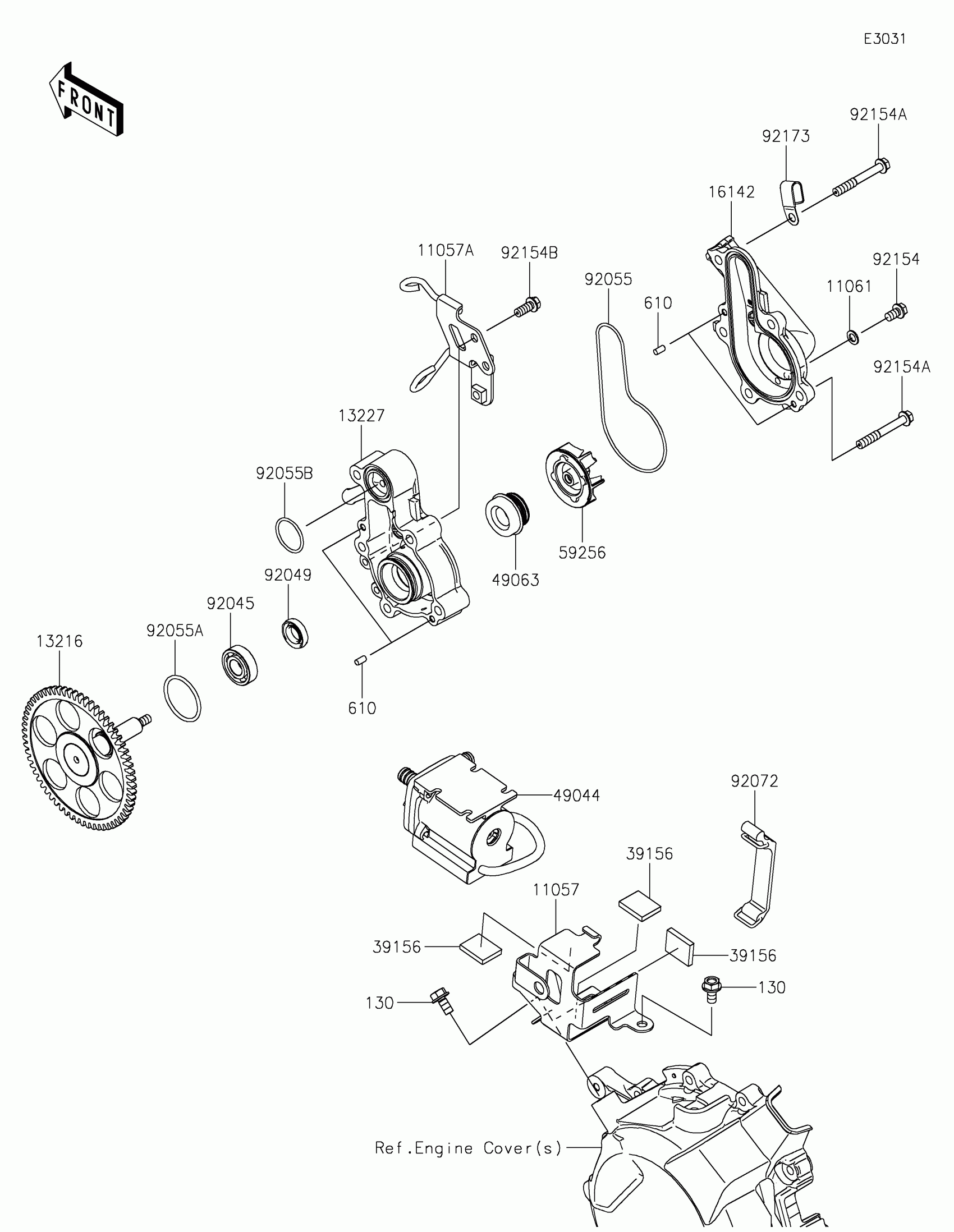

Find the part on the Water Pump diagram for your 2024 Kawasaki Ninja® 7 Hybrid, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Ninja® 7 Hybrid Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,WATER PUMP

11057-7939

1
Out of stock

11057A

BRACKET

11057-7997

1
Out of stock

11061

GASKET,DRAIN

11061-0875

1
Out of stock

13216

GEAR-COMP,WATER PUMP,62T

13216-0894

1
Out of stock

13227

HOUSING,WATER PUMP

13227-0713

1
Out of stock

16142

COVER-PUMP

16142-0766

1
Out of stock

39156

PAD

39156-0285

1

$1.20

In stock

49044

PUMP-WATER

49044-0018

1
Out of stock

49063

SEAL-MECHANICAL

49063-1055

1
Out of stock

59256

IMPELLER

59256-0554

1
Out of stock

92045

BEARING-BALL

92045-0067

1
Out of stock

92049

SEAL-OIL,12X22X5

92049-0783

1
Out of stock

92055

RING-O

92055-0889

1
Out of stock

92055A

RING-O,31.20X2.4

92055-0896

1
Out of stock

92055B

RING-O,23.3X1.9

92055-1555

1
Out of stock

92072

BAND,TOOL,L=82

92072-1294

1
Out of stock

92154

BOLT,FLANGED,6X10

92154-2344

1
Out of stock

92154A

BOLT,FLANGED,6X45

92154-2789

1
Out of stock

92154B

BOLT,FLANGED,6X14

92154-2838

1
Out of stock

92173

CLAMP

92173-1828

1
Out of stock

130

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock

610

ROLLER,4X8

610A0408

1
Out of stock
