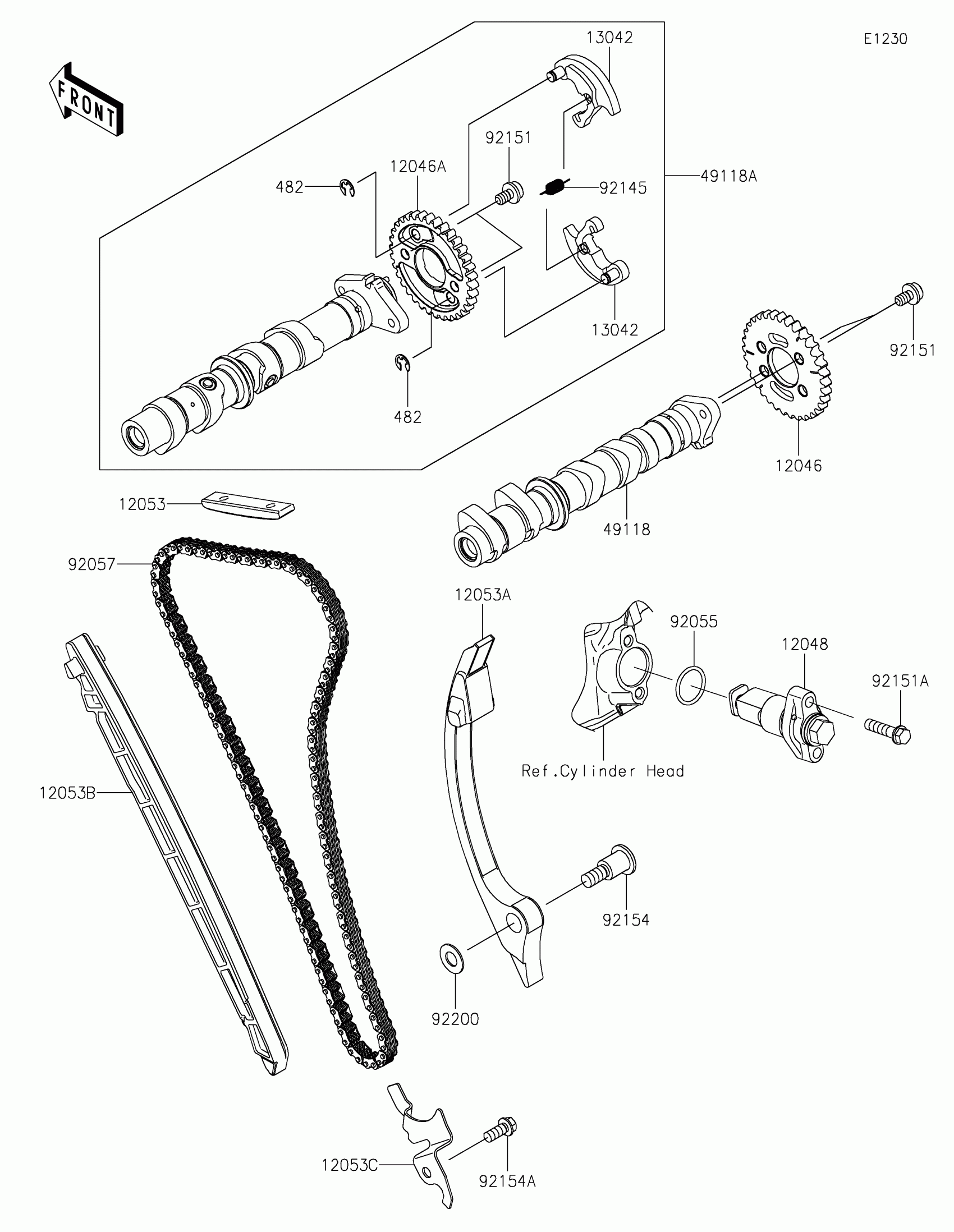

Kawasaki Ninja® 7 Hybrid Camshaft(s)/Tensioner Diagram

Description

Price

12046

SPROCKET,34T

12046-0599

$42.13

12046A

SPROCKET,34T

12046-0635

$82.49

12048

TENSIONER-ASSY

12048-0132

$109.04

12053

GUIDE-CHAIN,UPP

12053-0051

$19.45

12053A

GUIDE-CHAIN,RR

12053-0244

$66.63

12053B

GUIDE-CHAIN,FR

12053-0323

$35.73

12053C

GUIDE-CHAIN,LWR

12053-0324

$2.58

13042

WEIGHT

13042-0005

$33.76

49118

CAMSHAFT-COMP,INTAKE

49118-1272

$302.68

49118A

CAMSHAFT-COMP,EXHAUST

49118-1293

$629.14

92055

RING-O,18.8X1.9

92055-086

$3.29

92057

CHAIN,CAM,92RH2015 126M

92057-0602

$87.62

92145

SPRING

92145-0390

$2.31

92151

BOLT,SOCKET,6X10

92151-1829

$1.98

92151A

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98

92154

BOLT,SOCKET,8X29.2

92154-0953

$4.46

92154A

BOLT,FLANGED,6X14

92154-2907

$0.69

92200

WASHER,9X18X1

92200-1954

$1.47

482

CIRCLIP-TYPE-E,5MM

482J5000

$2.36
