2024 Kawasaki Ninja® 7 Hybrid Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2024 Kawasaki Ninja® 7 Hybrid, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

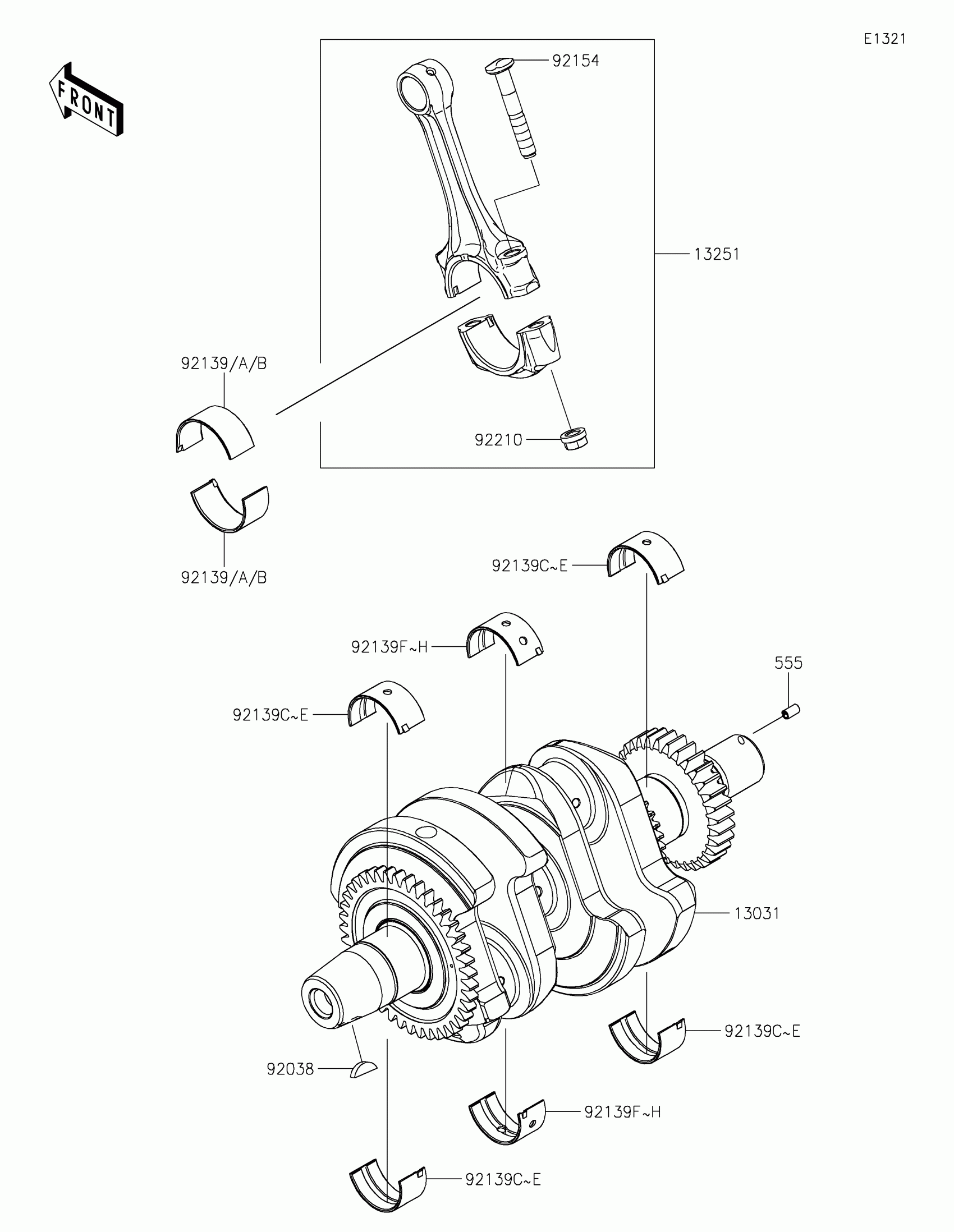

2024 Kawasaki Ninja® 7 Hybrid Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-1526

1

$825.62

In stock

13251

ROD-ASSY-CONNECTING,G

13251-0757-GG

1

$167.00

In stock

92038

KEY,WOODRUFF

92038-001

1

$3.94

In stock

92139

—

$18.44

In stock

92139A

1

$18.44

In stock

92139B

—

$18.44

In stock

92139C

—

$10.73

In stock

92139D

1

$10.73

In stock

92139E

—

$10.73

In stock

92139F

—

$18.44

In stock

92139G

1

$18.44

In stock

92139H

—

$18.44

In stock

92154

BOLT,7MM

92154-7075

1

$2.27

In stock

92210

NUT,CONNECTING ROD,7MM

92210-0384

1
Out of stock

555

PIN-SPRING,4X8

555A0408

1

$3.12

In stock
