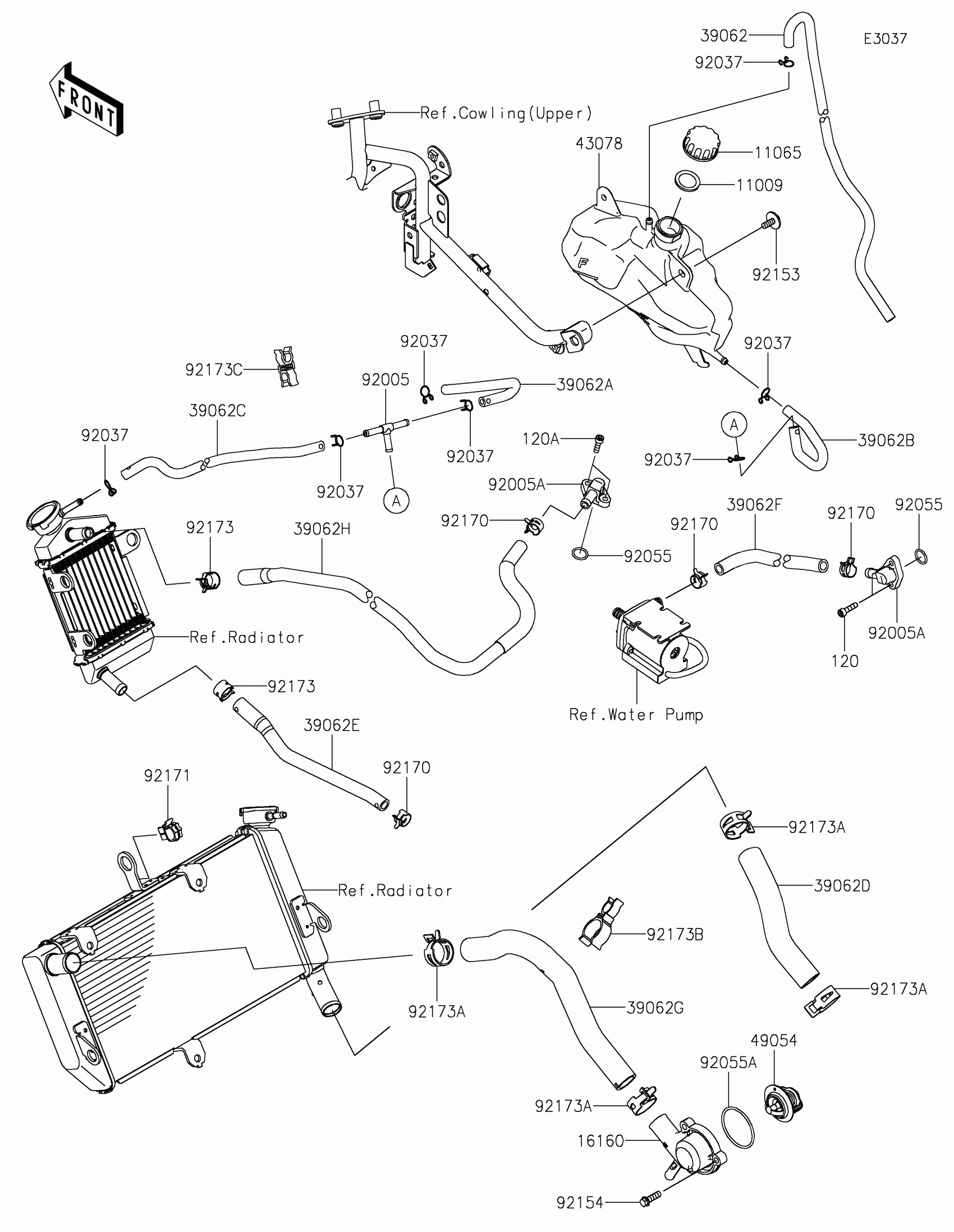

Find the part on the Water Pipe diagram for your 2024 Kawasaki Ninja® 7 Hybrid, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Ninja® 7 Hybrid Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,RESERVOIR TANK CAP

11009-1145

1
Out of stock

11065

CAP

11065-0969

1
Out of stock

16160

BODY,THERMOSTAT

16160-0834

1
Out of stock

39062

HOSE-COOLING,OVER FLOW

39062-0823

1
Out of stock

39062A

HOSE-COOLING,RADIATOR-FITTING

39062-0941

1
Out of stock

39062B

HOSE-COOLING,RESERVOIR-FITTING

39062-0942

1
Out of stock

39062C

HOSE-COOLING,RADIATOR-FITTING

39062-0943

1
Out of stock

39062D

HOSE-COOLING,RAD.-W/P

39062-0945

1
Out of stock

39062E

HOSE-COOLING,RAD.-W/P

39062-0949

1
Out of stock

39062F

HOSE-COOLING,W/P-MOTOR

39062-0950

1
Out of stock

39062G

HOSE-COOLING,THERMOSTAT-RAD.

39062-0951

1
Out of stock

39062H

HOSE-COOLING,MOTOR-RAD.

39062-1973

1
Out of stock

43078

RESERVOIR

43078-0600

1
Out of stock

49054

THERMOSTAT

49054-0001

1
Out of stock

92005

FITTING,T

92005-0885

1
Out of stock

92005A

FITTING

92005-1439

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92055

RING-O,13.8X1.9

92055-0065

1
Out of stock

92055A

RING-O,46.7X2.4

92055-0992

1
Out of stock

92153

BOLT,FLANGED-SMALL,6X16

92153-1798

1
Out of stock

92154

BOLT,FLANGED,6X20

92154-1778

1
Out of stock

92170

CLAMP

92170-1938

1

$2.97

In stock

92171

CLAMP,EDGE CLIP

92171-1722

1
Out of stock

92173

CLAMP

92173-1552

1
Out of stock

92173A

CLAMP

92173-1688

1
Out of stock

92173B

CLAMP,CLIP

92173-2286

1
Out of stock

92173C

CLAMP

92173-2663

1
Out of stock

120

BOLT-SOCKET,5X20

120CA0520

1
Out of stock

120A

BOLT-SOCKET,5X18

120CB0518

1
Out of stock
