2024 Kawasaki Ninja® 7 Hybrid Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2024 Kawasaki Ninja® 7 Hybrid, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

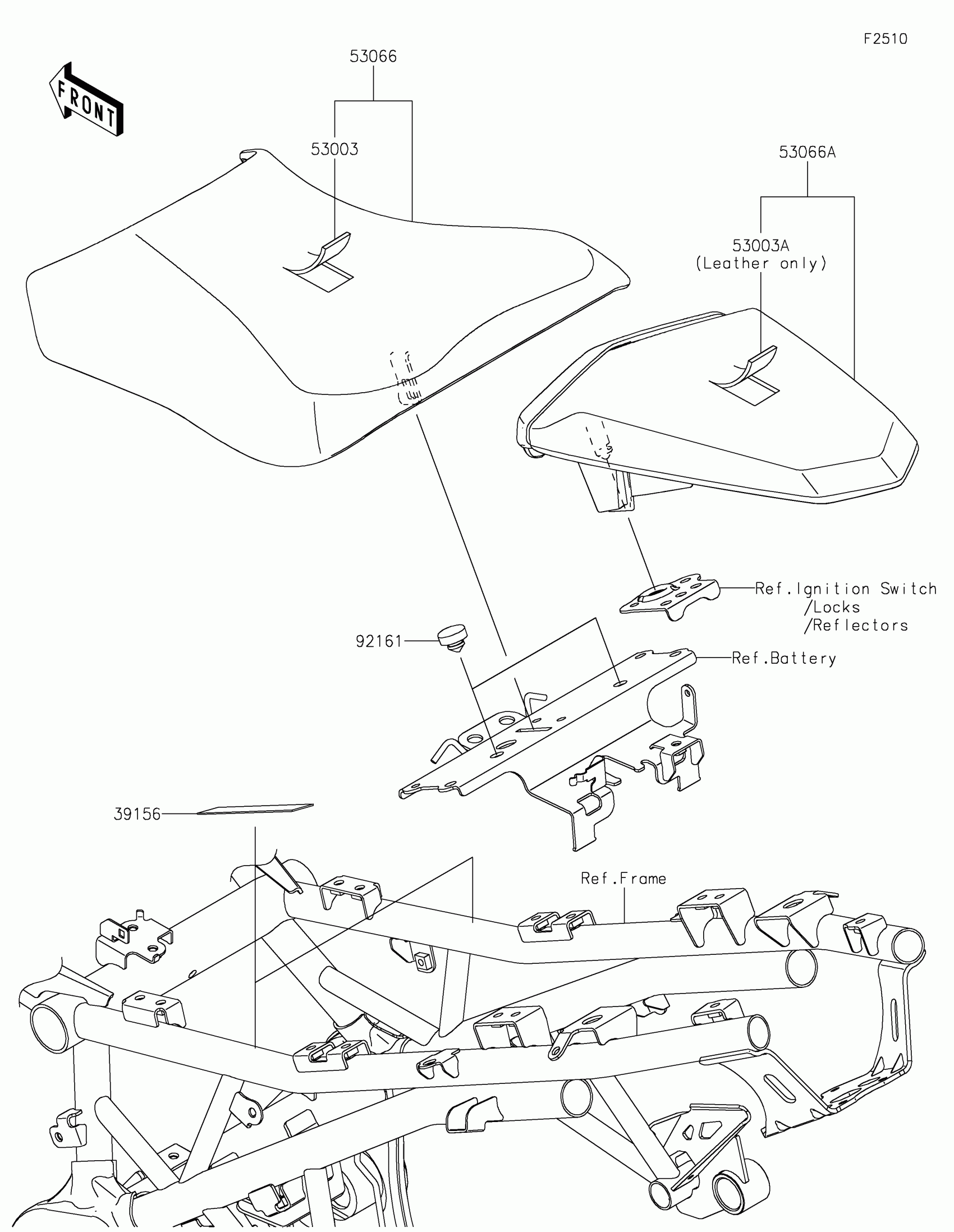

2024 Kawasaki Ninja® 7 Hybrid Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39156

PAD,35X75X1

39156-2383

1
Out of stock

53003

LEATHER,FR,BLACK

53003-0651-MA

1
Out of stock

53003A

LEATHER,RR,BLACK

53003-0652-MA

1
Out of stock

53066

SEAT-ASSY,FR,BLACK

53066-0860-MA

1
Out of stock

53066A

SEAT-ASSY,RR,BLACK+BLK

53066-0861-12Y

1
Out of stock

92161

DAMPER,10X20X8

92161-0855

1
Out of stock
