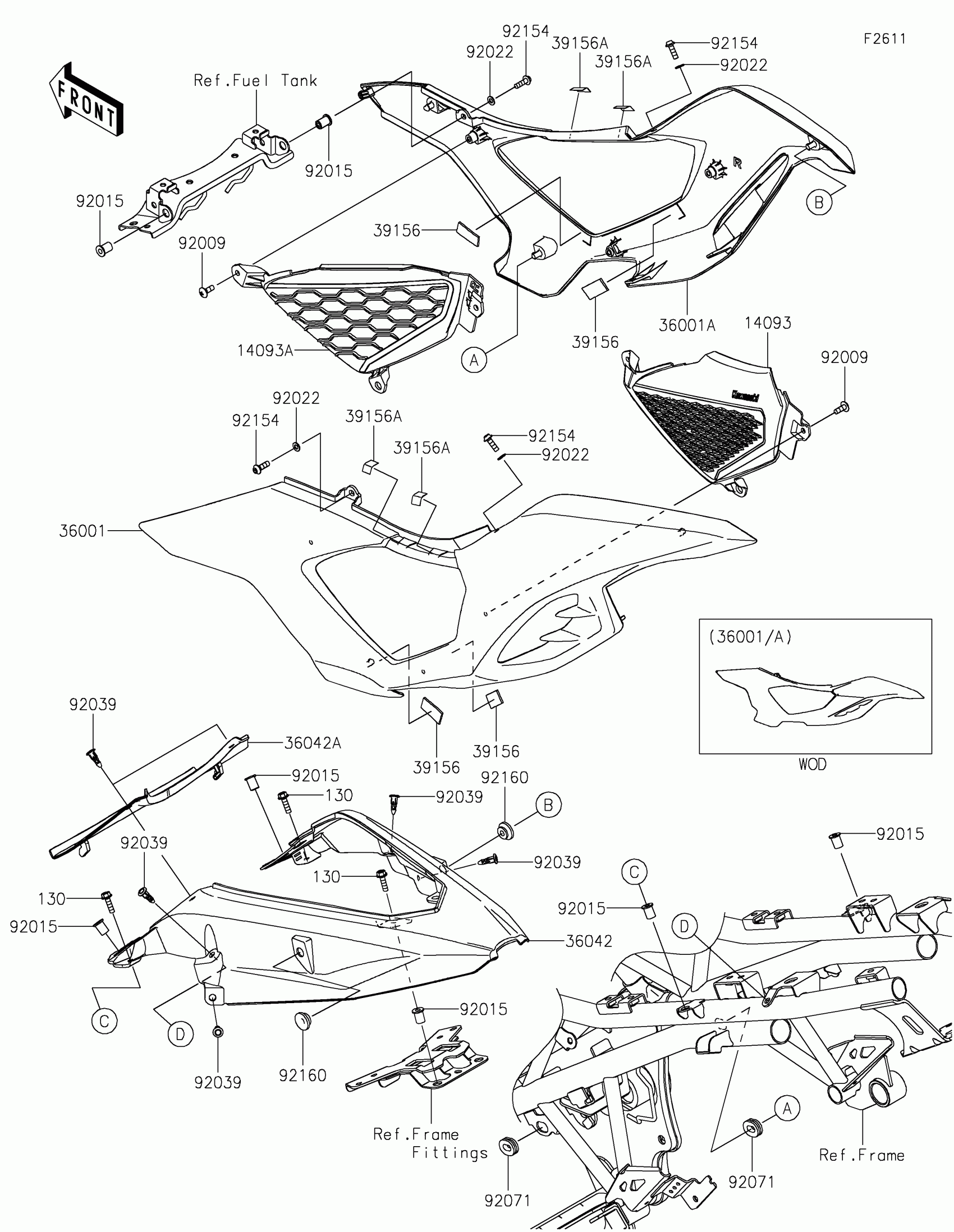

Kawasaki Ninja® 7 Hybrid Side Covers Diagram

Description

Price

14093

COVER,LH

14093-1294

$50.65

14093A

COVER,RH

14093-1295

$50.65

36001

COVER-SIDE,LH,M.B.SILVER

36001-0792-63S

$283.10

36001A

COVER-SIDE,RH,M.B.SILVER

36001-0793-63S

$279.73

36042

COVER-TAIL,RR

36042-0016

$125.82

36042A

COVER-TAIL,FR

36042-0017

$37.07

39156

PAD,30X15X2

39156-2897

$1.20

39156A

PAD,17X17X0.36

39156-2898

$1.03

92009

SCREW,TAPPING,5X14

92009-1197

$2.99

92015

NUT,WELL,5MM

92015-1757

$5.58

92022

WASHER,5.1X10X1.0

92022-1977

$2.76

92039

RIVET

92039-0709

$1.89

92071

GROMMET,11X23X7

92071-0762

$1.27

92154

BOLT,SOCKET,5X16

92154-4294

$1.95

92160

DAMPER

92160-1613

$2.84

130

BOLT-FLANGED,5X18

130BA0518

$1.31
