2024 Kawasaki Ninja® 7 Hybrid Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2024 Kawasaki Ninja® 7 Hybrid, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

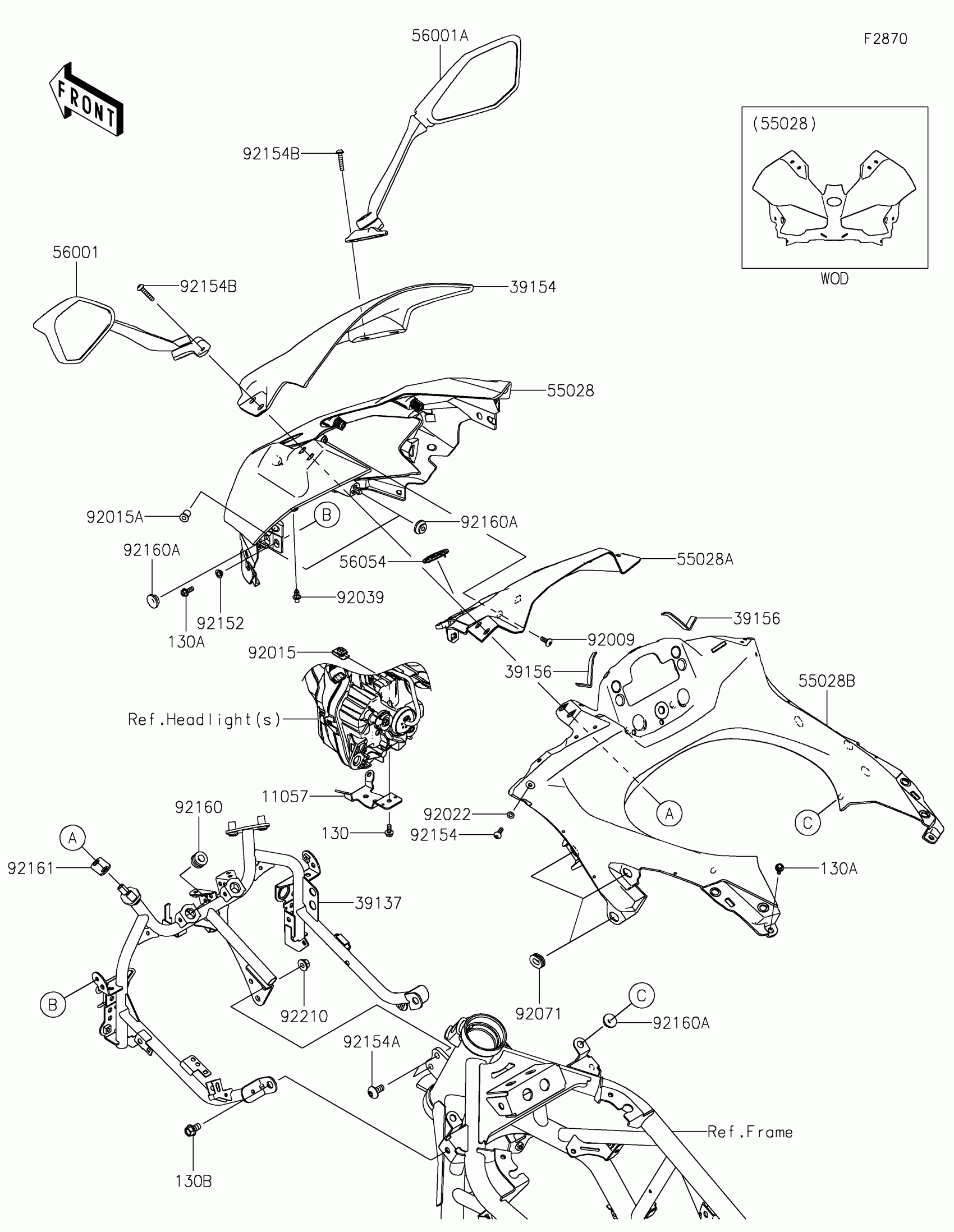

2024 Kawasaki Ninja® 7 Hybrid Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,HEAD LAMP,LWR

11057-7976

1
Out of stock

39137

STAY-COMP,UPP COWLING

39137-0733

1
Out of stock

39154

WINDSHIELD

39154-0426

1
Out of stock

39156

PAD,70X8X2

39156-2934

1
Out of stock

55028

COWLING,UPP,EBONY

55028-0832-H8

1
Out of stock

55028A

COWLING,UPP,CNT

55028-0833

1
Out of stock

55028B

COWLING,METER PANEL

55028-0840

1
Out of stock

56001

MIRROR-ASSY,LH

56001-0378

1
Out of stock

56001A

MIRROR-ASSY,RH

56001-0379

1
Out of stock

56054

MARK,UPP COWL.,RIVER

56054-3842

1
Out of stock

92009

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92015

NUT,5MM

92015-1710

1
Out of stock

92015A

NUT,WELL,5MM

92015-1757

1
Out of stock

92022

WASHER,5.1X10X1.0

92022-1977

1
Out of stock

92039

RIVET

92039-0709

1
Out of stock

92071

GROMMET,11X23X7

92071-0762

1
Out of stock

92152

COLLAR,6X8X4.5

92152-2395

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-1701

1
Out of stock

92154A

BOLT,SOCKET,8X18

92154-2656

1
Out of stock

92154B

BOLT,SOCKET,6X25

92154-2806

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1
Out of stock

92160A

DAMPER

92160-1613

1
Out of stock

92161

DAMPER

92161-1467

1
Out of stock

92210

NUT,FLANGED,8MM

92210-0304

1
Out of stock

130

BOLT-FLANGED,5X12

130BA0512

1

$1.80

In stock

130A

BOLT-FLANGED,5X14

130BA0514

1

$1.73

In stock

130B

BOLT-FLANGED,8X14

130BA0814

1

$1.78

In stock
