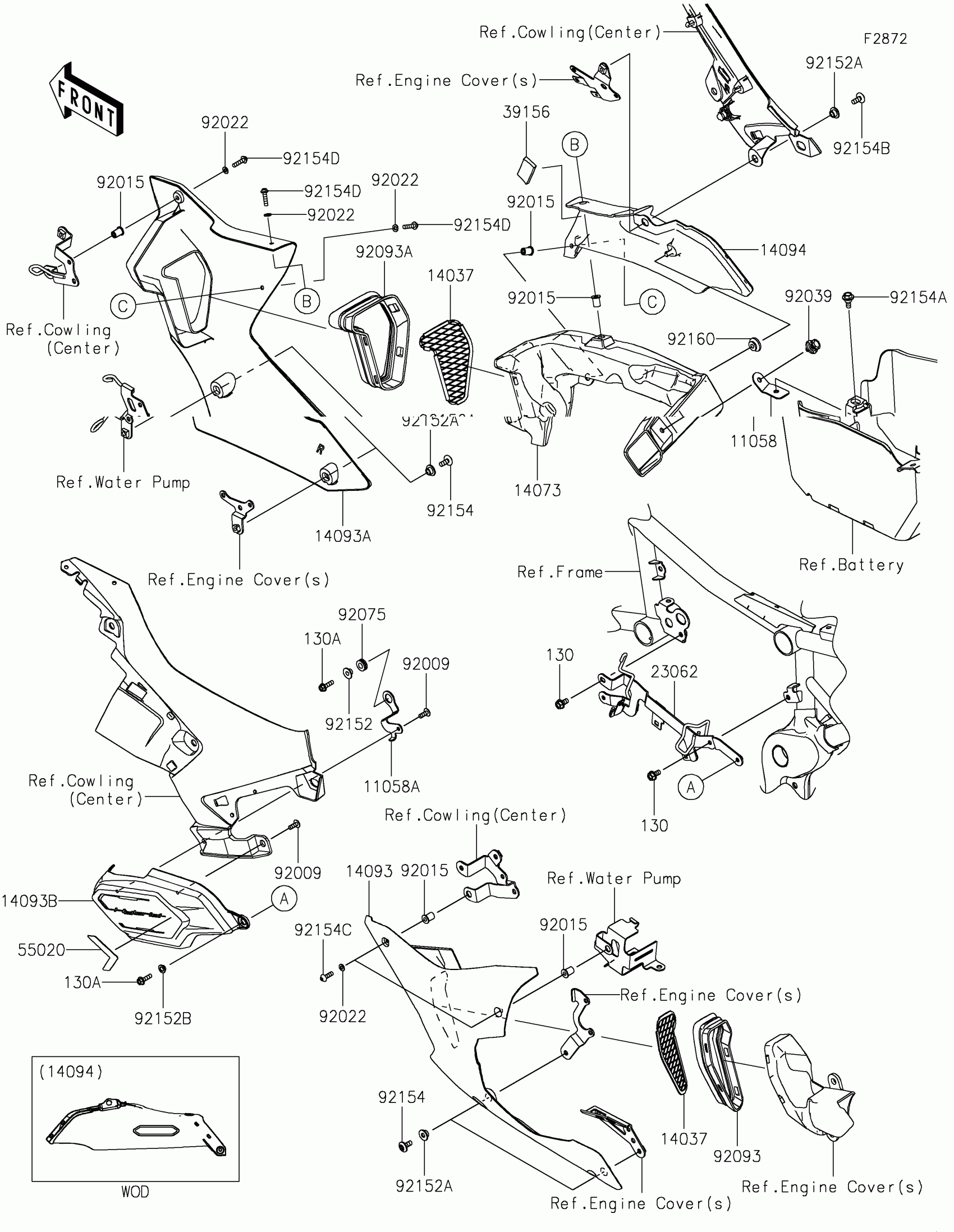

Kawasaki Ninja® 7 Hybrid Cowling Lowers Diagram

#

Description
Price

11058

BRACKET,DUCT

11058-0664

$4.47

11058A

BRACKET,MOTOR COVER

11058-1820

$3.58

14037

SCREEN,DUCT,F.S.BLACK

14037-0827-18R

$53.11

14073

DUCT,RH

14073-1882

$181.22

14093

COVER,DUCT,LH,M.M.R.GREEN

14093-1291-63R

$238.51

14093A

COVER,DUCT,RH,FR,M.M.R.GREEN

14093-1292-63R

$238.78

14093B

COVER,MOTOR,M.M.R.GREEN

14093-1296-63R

Unavailable

14094

COVER,DUCT,RH,RR

14094-0264

$56.73

23062

BRACKET-COMP

23062-1465

$59.29

39156

PAD,40X20X10

39156-2937

$1.20

55020

GUARD,MOTOR COVER

55020-2485

$22.86

92009

SCREW,TAPPING,5X14

92009-1197

$2.99

92015

NUT,WELL,5MM

92015-1757

$5.58

92022

WASHER,5.1X10X1.0

92022-1977

$2.76

92039

RIVET,HOLE 8MM

92039-0014

$2.28

92075

DAMPER

92075-161

$3.57

92093

SEAL,DUCT,LH

92093-0772

$18.49

92093A

SEAL,DUCT,RH

92093-0773

$18.49

92152

COLLAR

92152-0017

$1.98

92152A

COLLAR,6.5X10X6.4

92152-2287

$2.20

92152B

COLLAR,6X8X4.5

92152-2395

$0.95

92154

BOLT,SOCKET,6X14

92154-0745

$1.66

92154A

BOLT

92154-0929

$3.27

92154B

BOLT,SOCKET,6X14

92154-0932

$1.44

92154C

BOLT,SOCKET,5X16

92154-4294

$1.95

92154D

BOLT,SOCKET,5X20

92154-4301

$1.54

92160

DAMPER

92160-1613

$2.84

130

BOLT-FLANGED,6X12

130BA0612

$1.25

130A

BOLT-FLANGED,5X18

130BB0518

$1.71
