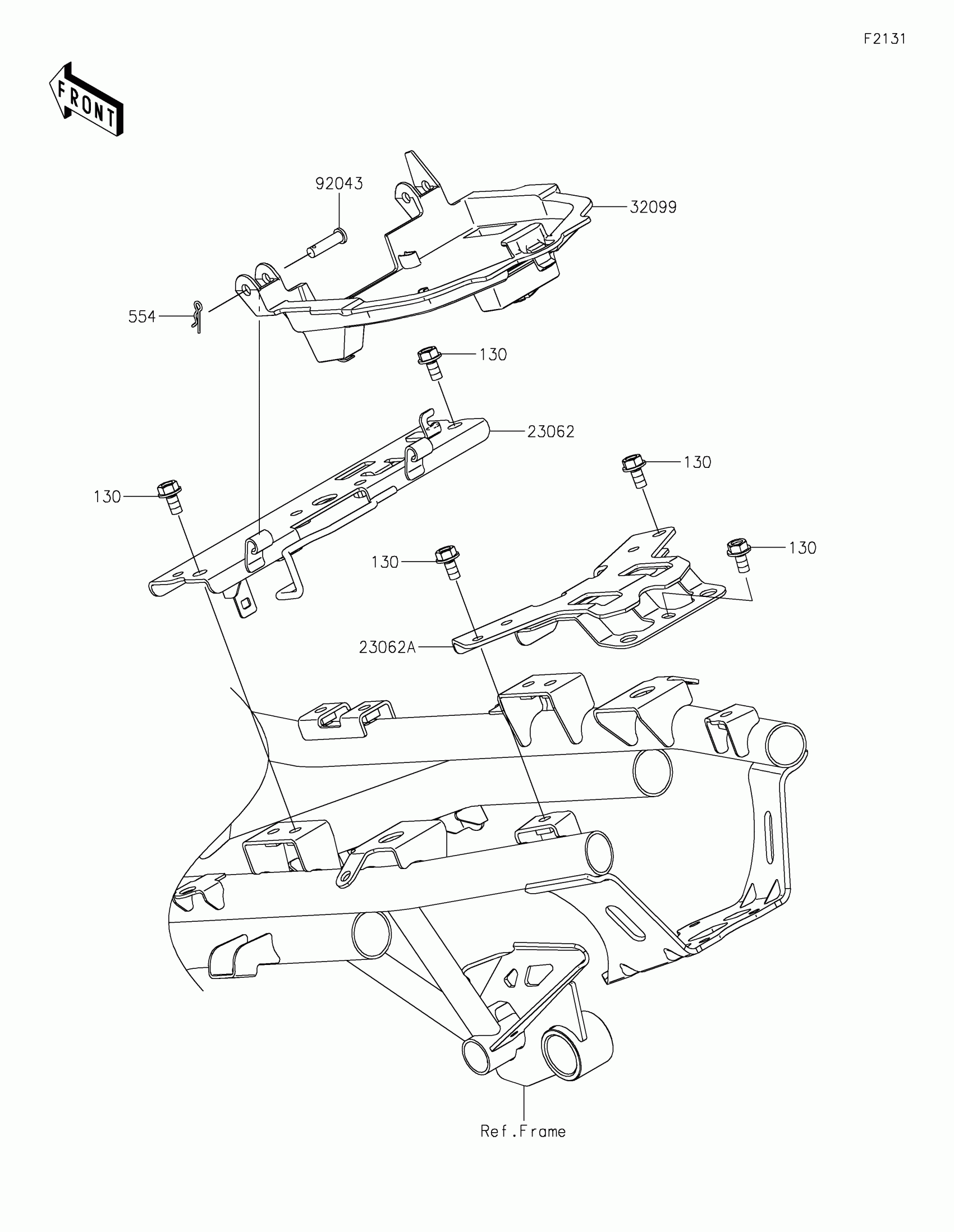

Kawasaki Ninja® 7 Hybrid Frame Fittings Diagram

#

Description

Price

23062

BRACKET-COMP,RR SEAT,FR

23062-1370

$36.73

23062A

BRACKET-COMP,RR SEAT,RR

23062-1371

$36.06

32099

CASE,SEAT UNDER

32099-0787

$10.59

92043

PIN,6X23

92043-0746

$1.68

130

BOLT-FLANGED,6X12

130BA0612

$1.25

554

PIN-SNAP,1.2X21.2

554DA0600

$0.79
