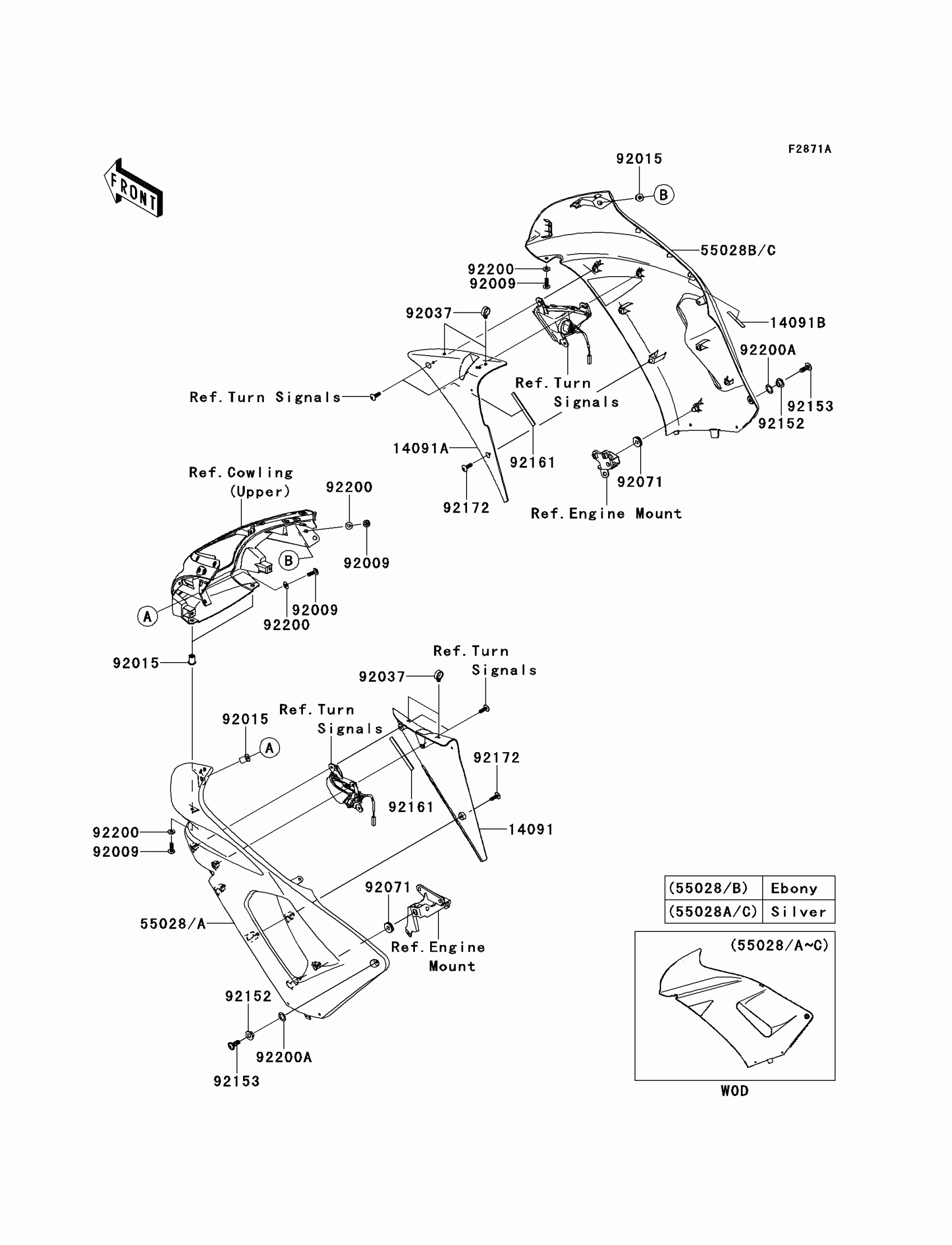

Kawasaki Ninja® 650R Cowling(Center)(A6F) Diagram

Description

Price

14091

COVER,CNT COWLING,INNER,LH

14091-0596

Unavailable

14091A

COVER,CNT COWLING,INNER,RH

14091-0597

Unavailable

14091B

COVER

14091-0607

$1.31

55028

COWLING,CNT,LH,EBONY

55028-0116-H8

$464.58

55028A

COWLING,CNT,LH,G.SILVER

55028-0116-474

$464.58

55028B

COWLING,CNT,RH,EBONY

55028-0117-H8

$464.58

55028C

COWLING,CNT,RH,G.SILVER

55028-0117-474

$464.58

92009

SCREW,5X16

92009-1909

$1.47

92015

NUT,WELL,5MM

92015-1757

$5.58

92037

CLAMP,HOSE

92037-1827

$5.69

92071

GROMMET

92071-056

$3.25

92152

COLLAR

92152-0422

Unavailable

92153

BOLT,6X18

92153-0478

$1.81

92161

DAMPER

92161-1315

$2.58

92172

SCREW,TAPPING,5X16

92172-0175

$1.32

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.36

92200A

WASHER,10.4X15.9X0.5

92200-0157

$1.57
