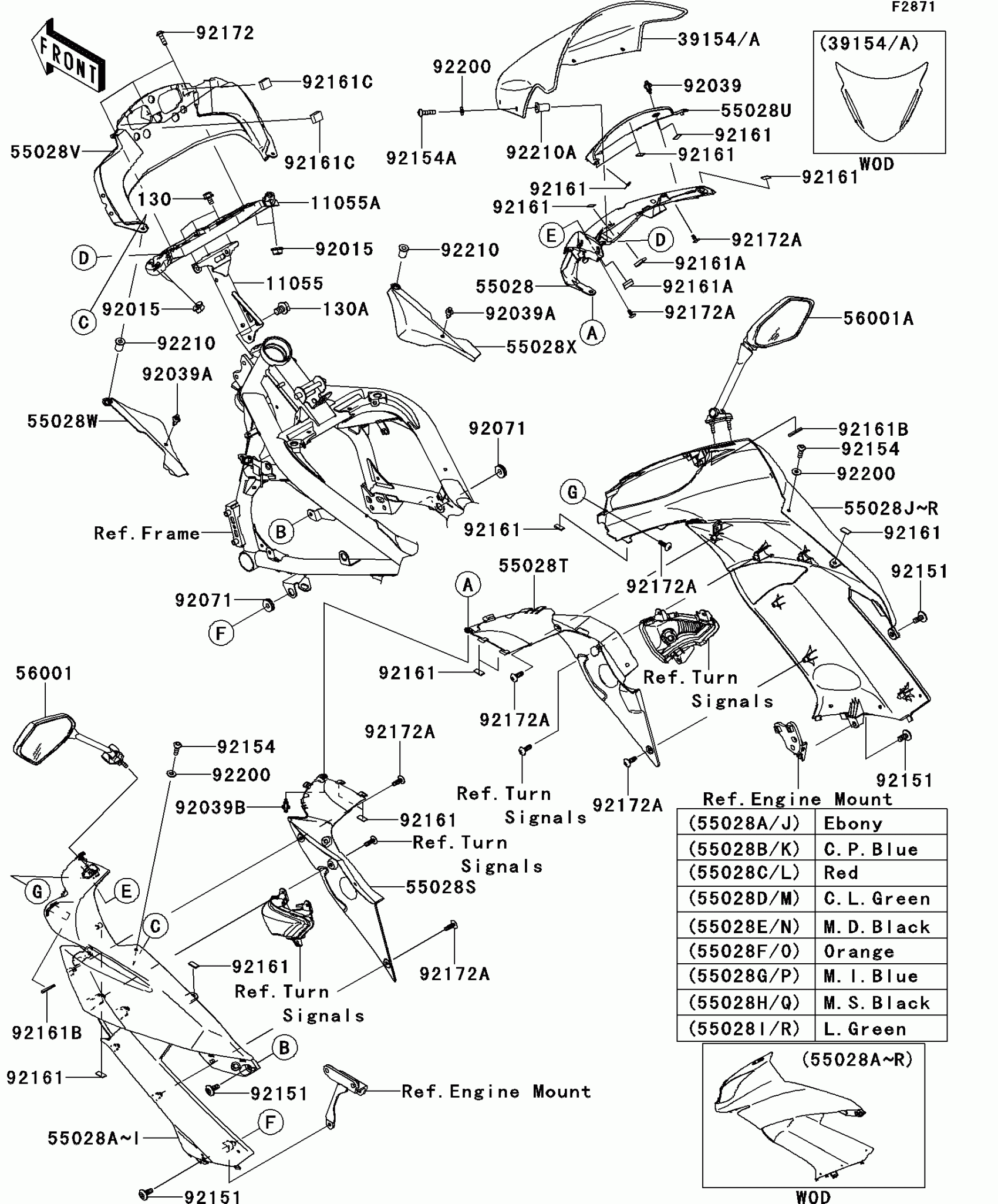

Kawasaki NINJA® 650R Cowling(Upper) Diagram

#

Description
Price

11055

BRACKET,MAIN COWLING

11055-0948

$59.96

11055A

BRACKET,METER&MIRROR STAY

11055-0949

$122.62

39154A

WINDSHIELD

39154-0055

$144.47

55028

COWLING,UPP,CNT

55028-0233

$78.26

55028F

COWLING,UPP,LH,C.B.ORANGE

55028-0234-15T

$497.51

55028H

COWLING,UPP,LH,M.S.BLACK

55028-0234-15Z

$497.51

55028O

COWLING,UPP,RH,C.B.ORANGE

55028-0235-15T

$497.51

55028Q

COWLING,UPP,RH,M.S.BLACK

55028-0235-15Z

$497.51

55028S

COWLING,INNER,FR,LH

55028-0241

$67.66

55028T

COWLING,INNER,FR,RH

55028-0242

$67.66

55028U

COWLING,METER

55028-0243

$39.81

55028V

COWLING,INNER,CNT

55028-0246

$78.26

55028W

COWLING,INNER,LH

55028-0247

$25.31

55028X

COWLING,INNER,RH

55028-0248

$25.31

56001

MIRROR-ASSY,LH

56001-0142

$79.03

56001A

MIRROR-ASSY,RH

56001-0143

$79.03

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92039

RIVET

92039-0023

$2.97

92039A

RIVET

92039-0051

$4.65

92039B

RIVET

92039-1283

$2.80

92071

GROMMET

92071-056

$4.26

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92154

BOLT,SOCKET,5X16

92154-0182

$2.55

92154A

BOLT,SOCKET,5X20

92154-0216

$2.12

92161

DAMPER

92161-0726

$2.55

92161A

DAMPER,UPP CNT COWLING

92161-0731

$3.97

92161B

DAMPER,UPP SIDE COWLING

92161-0740

$3.70

92161C

DAMPER,20X20X10

92161-0835

$3.71

92172

SCREW,6X14

92172-0004

$2.80

92172A

SCREW,TAPPING,5X16

92172-0427

$2.55

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.86

92210

NUT,WELL,5MM

92210-0498

$7.29

92210A

NUT,POP,5MM

92210-1227

$3.09

130

BOLT-FLANGED,6X12

130BB0612

$2.34

130A

BOLT-FLANGED,8X12

130BB0812

$0.68
