2008 Kawasaki Ninja® 650R Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2008 Kawasaki Ninja® 650R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

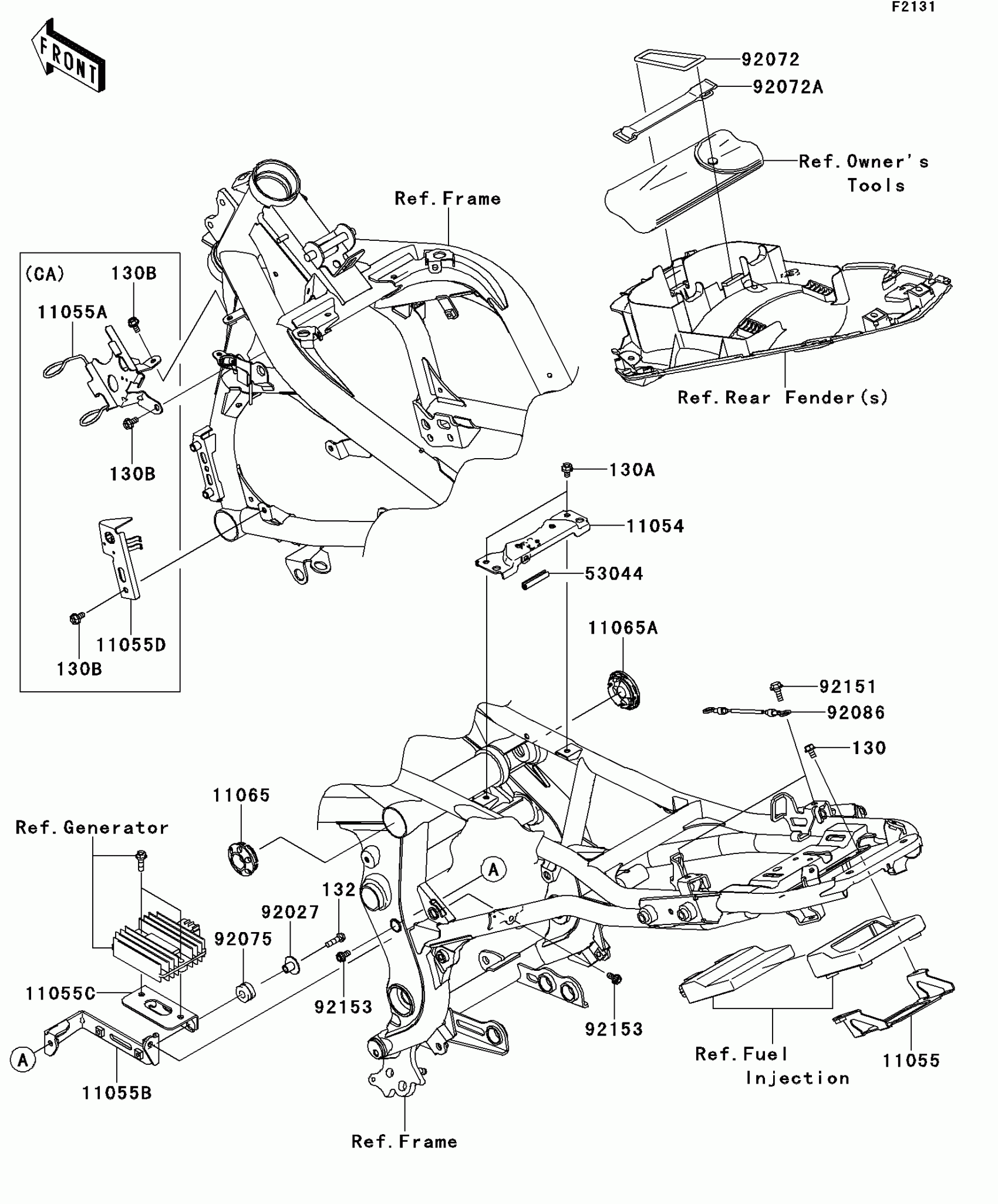

2008 Kawasaki Ninja® 650R Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X10

130L0610

1
Out of stock

11012

CAP,CROSS PIPE,F.P.SILVER

11012-1717-10C

1

$8.37

In stock

11012C

CAP,CROSS PIPE,BLACK

11012-1717-18T

1
Out of stock

11053

1

$9.41

In stock

11054

BRACKET,FUEL TANK

11054-0248

1

$21.58

In stock

11054A

BRACKET,ECU

11054-0347

1

$16.05

In stock

11054C

BRACKET,REGULATOR

11054-1283

1

$32.41

In stock

11054D

BRACKET,REGULATOR

11054-1284

1

$15.07

In stock

11065

CAP,FRAME,F.P.SILVER

11065-0125-10C

1

$8.37

In stock

11065C

CAP,FRAME,BLACK

11065-0125-18T

1

$8.37

In stock

53044

TRIM,L=40

53044-1174

1

$3.85

In stock

92027

COLLAR,L=13.1,BLACK

92027-1450

1

$4.93

In stock

92072

BAND

92072-1085

1

$14.27

In stock

92072A

BAND,TOOL

92072-1176

1

$12.34

In stock

92072B

BAND,L=150

92072-1203

1

$11.26

In stock

92075

1

$3.72

In stock

92086

WIRE,L=150

92086-1075

1
Out of stock

92151

BOLT,FLANGED,6X13

92151-1703

1

$3.14

In stock

92153

BOLT,SOCKET,6X16

92153-1517

1
Out of stock

132

BOLT-FLANGED-SMALL,6X22

132J0622

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X10

132L0610

1
Out of stock

130A

BOLT-FLANGED,6X12

130L0612

1
Out of stock

11053A

BRACKET,CANISTER

11053-1964

1

$72.45

In stock
