2008 Kawasaki Ninja® 650R Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2008 Kawasaki Ninja® 650R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

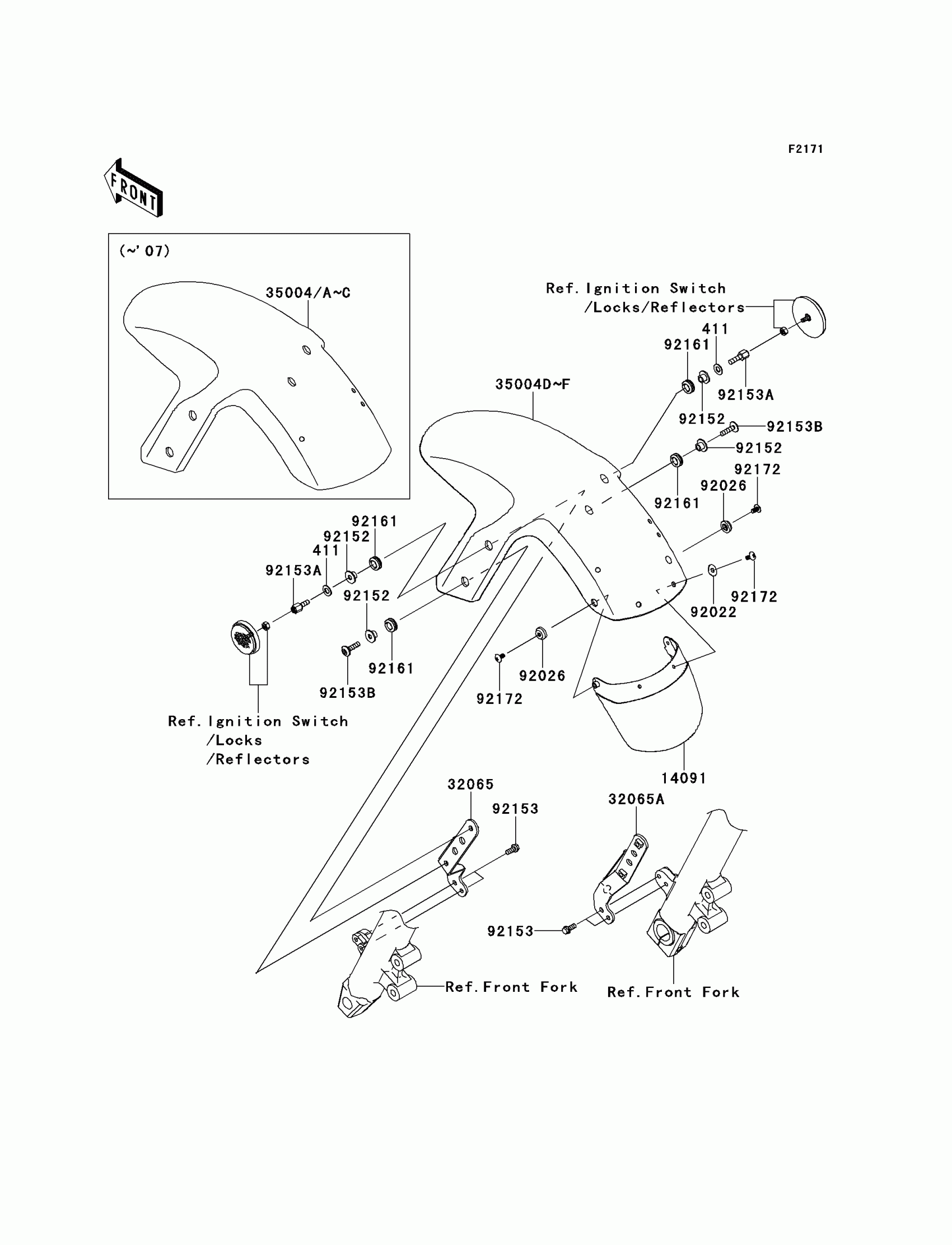

2008 Kawasaki Ninja® 650R Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

411

WASHER PLAIN

411F0600

1
Out of stock

14091

COVER,FRONT FENDER

14091-0885

1
Out of stock

32065

BRACKET-FENDER,LH

32065-0022

1
Out of stock

32065A

BRACKET-FENDER,RH

32065-0023

1
Out of stock

35004D

FENDER-FRONT,S.RED

35004-0103-H1

1
Out of stock

35004E

FENDER-FRONT,M.D,BLACK

35004-0103-17K

1
Out of stock

35004F

FENDER-FRONT,L.GREEN

35004-0103-777

1
Out of stock

92022

WASHER,6X16X1

92022-1818

1
Out of stock

92026

SPACER

92026-0118

1
Out of stock

92152

COLLAR

92152-0295

1
Out of stock

92153

BOLT,FLANGED,6X14

92153-0589

1
Out of stock

92153A

BOLT,6MM

92153-1004

1
Out of stock

92153B

BOLT,SOCKET,6X23

92153-1267

1
Out of stock

92161

DAMPER

92161-0266

1
Out of stock

92172

SCREW,TAPPING,5X10

92172-0335

1
Out of stock
