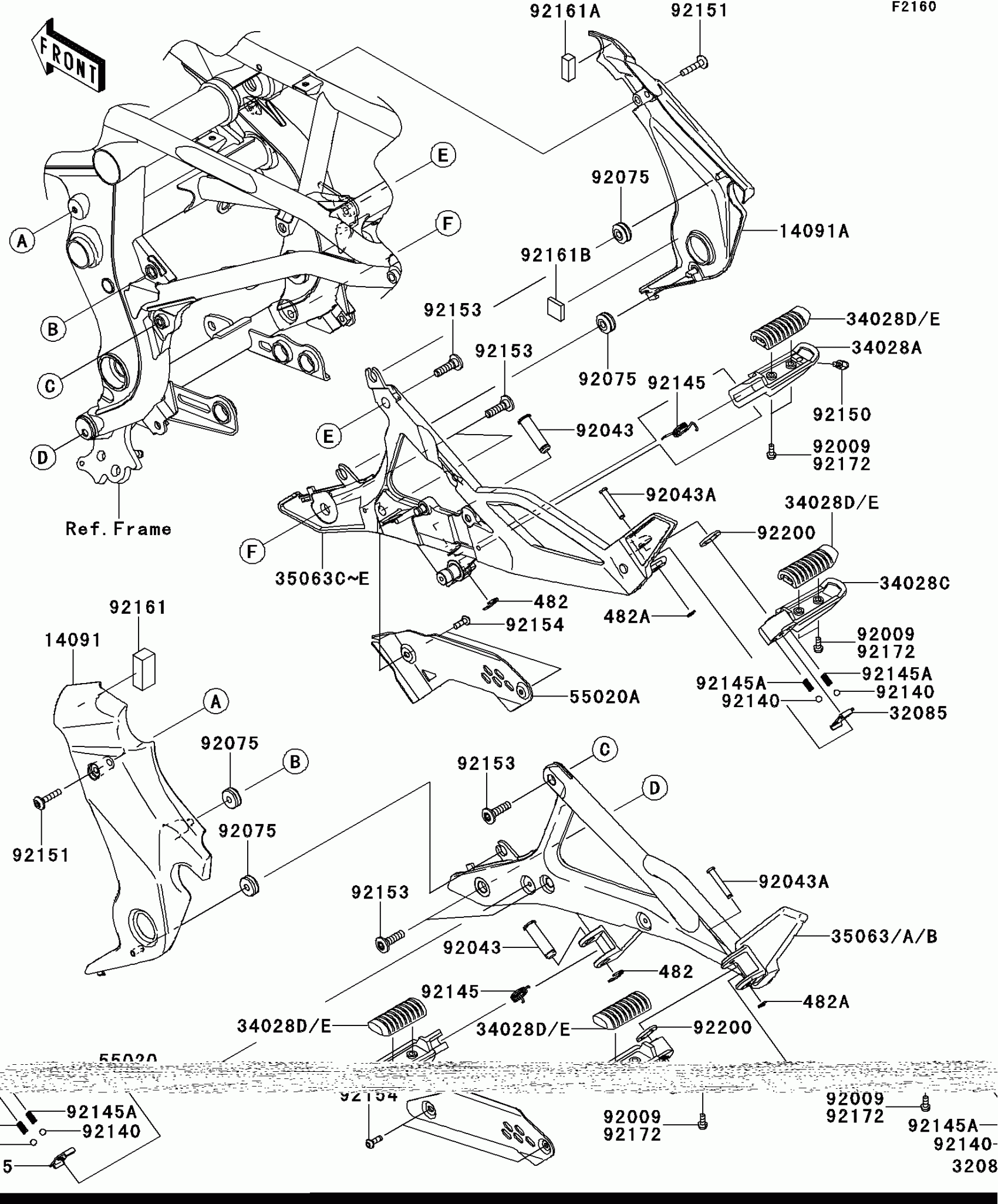

Kawasaki NINJA® 650R Footrests Diagram

#

Description
Price

14091

COVER,PIVOT,LH

14091-1584

$47.22

14091A

COVER,PIVOT,RH

14091-1585

$47.22

32085

STOPPER,REAR STEP

32085-0047

$5.57

34028

STEP,FR,LH

34028-0127

$52.67

34028A

STEP,FR,RH

34028-0128

$52.67

34028B

STEP,RR,LH

34028-0129

Unavailable

34028C

STEP,RR,RH

34028-0130

Unavailable

34028D

STEP,RUBBER

34028-0133

$14.85

35063

STAY,STEP,LH,F.S.BLACK

35063-0522-18R

$204.00

35063C

STAY,STEP,RH,F.S.BLACK

35063-0523-18R

$204.00

55020

GUARD,STEP,LH

55020-0461

$56.26

55020A

GUARD,STEP,RH

55020-0597

$56.37

92043

PIN,12X37.5

92043-0026

$5.57

92043A

PIN,6X40

92043-1595

$2.34

92075

DAMPER

92075-1067

$4.69

92140

BALL,6.35MM

92140-0008

Unavailable

92145

SPRING,STEP RETURN

92145-0723

$3.67

92145A

SPRING

92145-1319

$1.81

92150

BOLT,BANK SENSOR

92150-1114

$11.39

92151

BOLT,SOCKET,6X30

92151-1605

$2.34

92153

BOLT,SOCKET,8X30

92153-1630

$2.61

92154

BOLT,SOCKET,5X16

92154-0182

$2.55

92161

DAMPER,19X15X40

92161-0670

$3.97

92161A

DAMPER,10X10X28

92161-0671

$3.09

92161B

DAMPER,UPP CNT COWLING

92161-0731

$3.97

92172

SCREW-PAN-WP-CROS,5X14

92172-0473

$2.32

92200

WASHER,16X26X2.3

92200-0043

$7.65

482

CIRCLIP-TYPE-E,10MM

482EA0100

$1.04

482A

CIRCLIP-TYPE-E

482EA5000

$1.34
