2024 Kawasaki Ninja 650 KRT Edition Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2024 Kawasaki Ninja 650 KRT Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

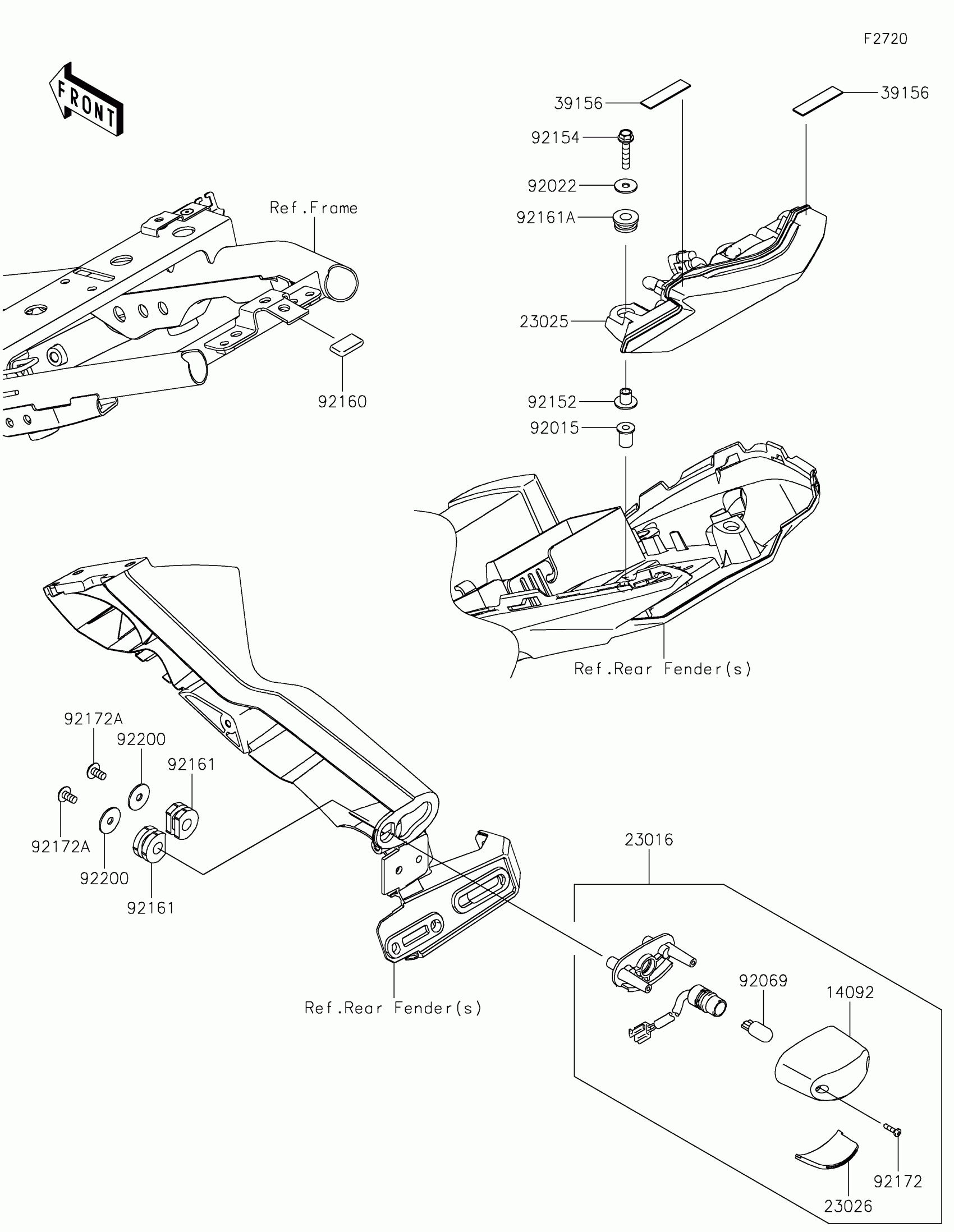

2024 Kawasaki Ninja 650 KRT Edition Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14092

COVER,LICENSE LAMP

14092-0001

1
Out of stock

23016

LAMP-ASSY,LICENSE

23016-0656

1
Out of stock

23025

LAMP-TAIL,LED

23025-0362

1
Out of stock

23026

LENS,LICENCE LAMP

23026-0035

1
Out of stock

39156

PAD,40X10X1

39156-2595

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92022

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92069

BULB,12V 5W

92069-1016

1
Out of stock

92152

COLLAR,5.6X8X11.2

92152-1562

1
Out of stock

92154

BOLT,FLANGED,5X25

92154-0846

1
Out of stock

92160

DAMPER

92160-1190

1
Out of stock

92161

DAMPER

92161-0776

1
Out of stock

92161A

DAMPER,8X18X8.1

92161-1369

1
Out of stock

92172

SCREW,TAPPING,2.9X13

92172-0343

1
Out of stock

92172A

SCREW,TAPPING,5X16

92172-0427

1
Out of stock

92200

WASHER,5.5X20X1.2

92200-0284

1
Out of stock
