2024 Kawasaki Ninja 650 KRT Edition Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2024 Kawasaki Ninja 650 KRT Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

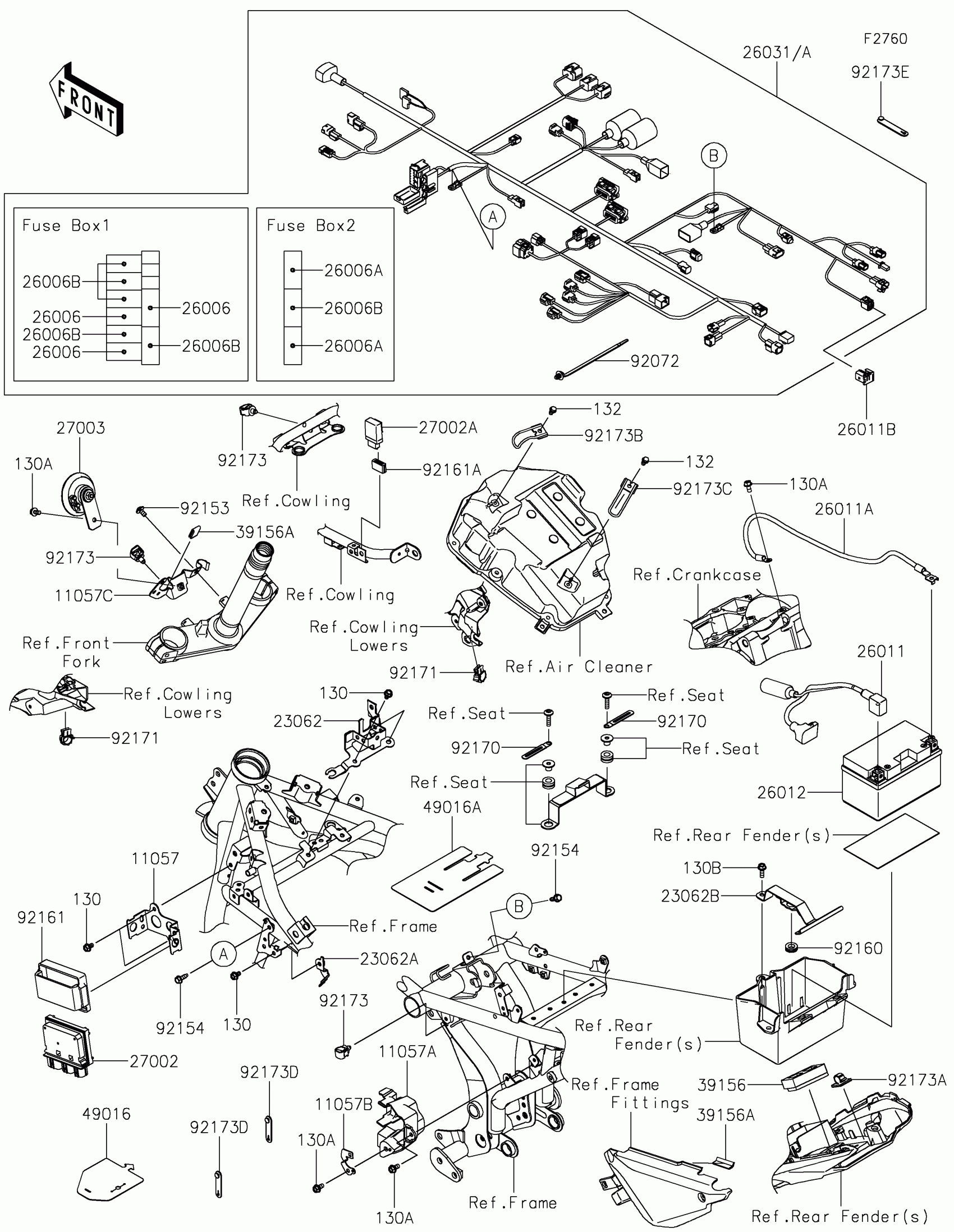

2024 Kawasaki Ninja 650 KRT Edition Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,RELAY BOX

11057-0122

1
Out of stock

11057A

BRACKET,MAGNETIC SW.

11057-0137

1
Out of stock

11057B

BRACKET,COUPLER

11057-0138

1
Out of stock

11057C

BRACKET,HORN

11057-0184

1
Out of stock

23062

BRACKET,VEHICLE DOWN SENSOR

23062-1258

1
Out of stock

23062A

BRACKET-COMP,FUSE BOX

23062-1259

1
Out of stock

23062B

BRACKET-COMP,BATTERY

23062-1269

1
Out of stock

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

1
Out of stock

26006A

FUSE,MINI BLADE,5A,TAN

26006-1077

1
Out of stock

26006B

FUSE,MINI BLADE,10A,RED

26006-1078

1
Out of stock

26011

WIRE-LEAD,BATTERY(+)

26011-0979

1
Out of stock

26011A

WIRE-LEAD,BATTERY(-)

26011-0981

1
Out of stock

26011B

WIRE-LEAD,DIAG CONNECTOR

26011-1901

1
Out of stock

26012

BATTERY,YTZ10,12V 8.6AH

26012-0689

1
Out of stock

27002

RELAY-ASSY

27002-0061

1
Out of stock

27002A

RELAY-ASSY,SIGNAL LAMP

27002-0062

1
Out of stock

27003

HORN

27003-0065

1
Out of stock

39156

PAD,DIAGNOSTIC-CONNECTOR

39156-2627

1
Out of stock

39156A

PAD,40X15X2

39156-2639

1
Out of stock

49016

COVER-SEAL

49016-0645

1
Out of stock

49016A

COVER-SEAL,ECU CONNECTOR

49016-0672

1
Out of stock

92072

BAND,OS170-FT7(BLACK)

92072-1414

—
Out of stock

92153

BOLT,SOCKET,6X12

92153-1948

1
Out of stock

92154

BOLT,FLANGED,6X18

92154-4008

1
Out of stock

92160

DAMPER

92160-1278

1
Out of stock

92161

DAMPER,RELAY BOX

92161-0203

1
Out of stock

92161A

DAMPER,15X25X8.5

92161-1443

1
Out of stock

92170

CLAMP

92170-1514

1
Out of stock

92171

CLAMP,EDGE CLIP

92171-1722

1
Out of stock

92173

CLAMP,12MM DIA.

92173-0736

1
Out of stock

92173A

CLAMP,DRAIN

92173-1055

1
Out of stock

92173B

CLAMP,A/C CASE,FR

92173-1586

1
Out of stock

92173C

CLAMP,A/C CASE,RR

92173-1587

1
Out of stock

92173D

CLAMP

92173-2198

1
Out of stock

92173E

CLAMP

92173-2199

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1
Out of stock

130A

BOLT-FLANGED,6X12

130BA0612

1
Out of stock

130B

BOLT-FLANGED,6X18

130BA0618

1
Out of stock

132

BOLT-FLANGED-SMALL,6X10

132BA0610

1
Out of stock
