2024 Kawasaki Ninja 650 KRT Edition Starter Motor Diagram

← All diagrams

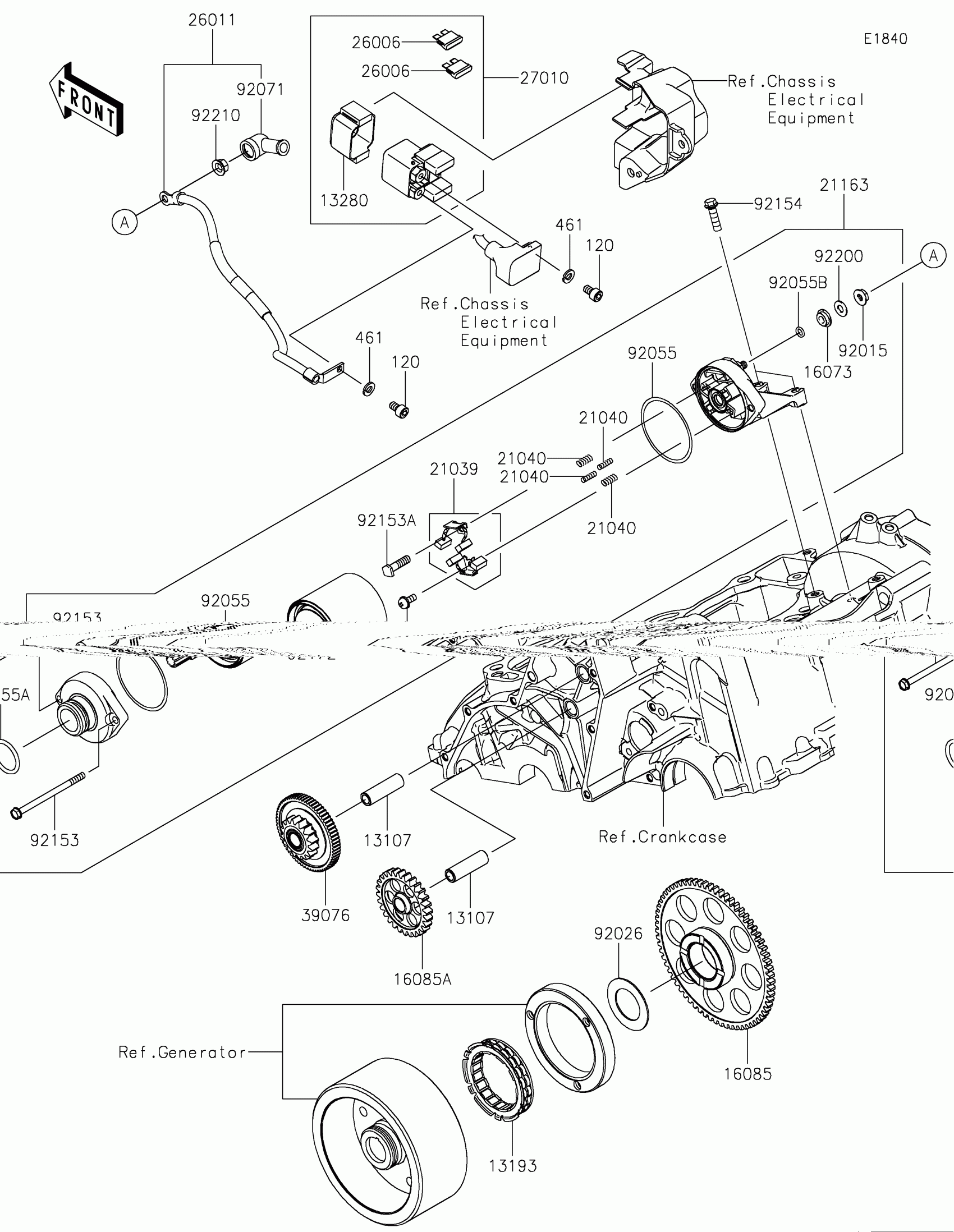

Find the part on the Starter Motor diagram for your 2024 Kawasaki Ninja 650 KRT Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Ninja 650 KRT Edition Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,IDLE GEAR

13107-1106

1
Out of stock

13193

CLUTCH-ASSY-ONEWAY

13193-0006

1
Out of stock

13280

HOLDER

13280-0710

1
Out of stock

16073

INSULATOR

16073-0053

1
Out of stock

16085

GEAR,67T

16085-0076

1
Out of stock

16085A

GEAR,IDLE,28T

16085-0148

1
Out of stock

21039

BRUSH,CARBON

21039-0004

1
Out of stock

21040

SPRING-BRUSH

21040-0003

1
Out of stock

21163

STARTER-ELECTRIC

21163-0746

1
Out of stock

26006

FUSE,BLADE,30A,GREEN

26006-1006

1
Out of stock

26011

WIRE-LEAD

26011-0939

1
Out of stock

27010

SWITCH,MAGNETIC

27010-0709

1
Out of stock

39076

LIMITER,16T&66T

39076-0034

1
Out of stock

92015

NUT,STARTER MOTOR

92015-1476

1
Out of stock

92026

SPACER,29.1X47.5X1.2

92026-087

1
Out of stock

92055

RING-O

92055-0136

1
Out of stock

92055A

RING-O

92055-1276

1
Out of stock

92055B

RING-O,4.5X2.0

92055-1370

1
Out of stock

92071

GROMMET

92071-0024

1
Out of stock

92153

BOLT

92153-1850

1
Out of stock

92153A

BOLT

92153-1866

1
Out of stock

92154

BOLT,FLANGED,6X22

92154-0504

1
Out of stock

92172

SCREW

92172-0334

1
Out of stock

92200

WASHER

92200-0386

1
Out of stock

92210

NUT,6MM

92210-0188

1
Out of stock

120

BOLT-SOCKET,6X10

120CB0610

1
Out of stock

461

WASHER-SPRING,6MM

461DB0600

1
Out of stock
