2024 Kawasaki Ninja 650 KRT Edition Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2024 Kawasaki Ninja 650 KRT Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

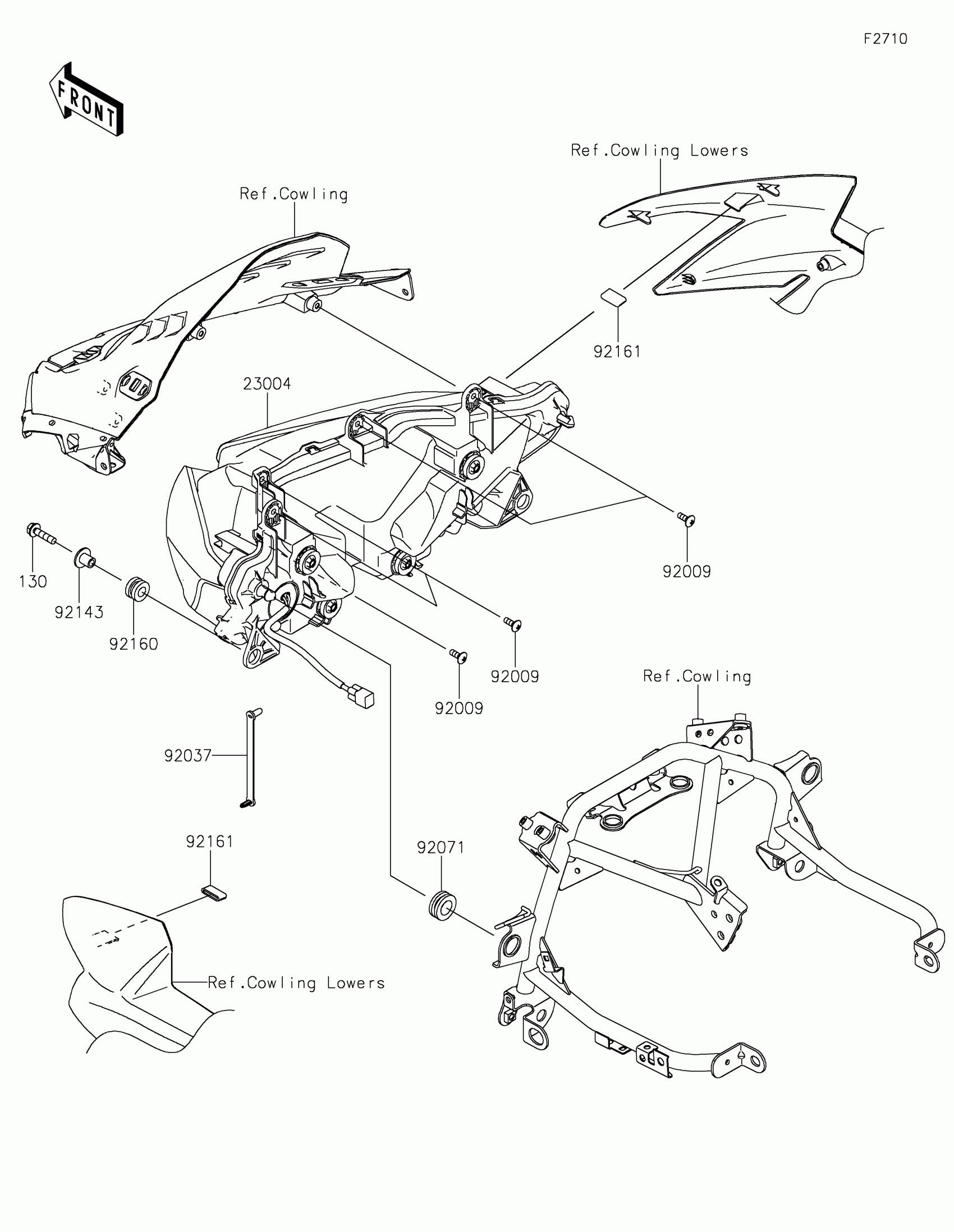

2024 Kawasaki Ninja 650 KRT Edition Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23004

LAMP-HEAD,LED

23004-0423

1

$1,249.46

In stock

92009

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92037

CLAMP,SPEED,L=80.5

92037-1903

1

$6.24

In stock

92071

GROMMET

92071-1131

1

$6.18

In stock

92143

COLLAR

92143-1353

1

$6.81

In stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92161

DAMPER,12X23

92161-1367

1

$1.10

In stock

130

BOLT-FLANGED,6X25

130BA0625

1

$1.01

In stock
