2024 Kawasaki Ninja 650 KRT Edition Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 2024 Kawasaki Ninja 650 KRT Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

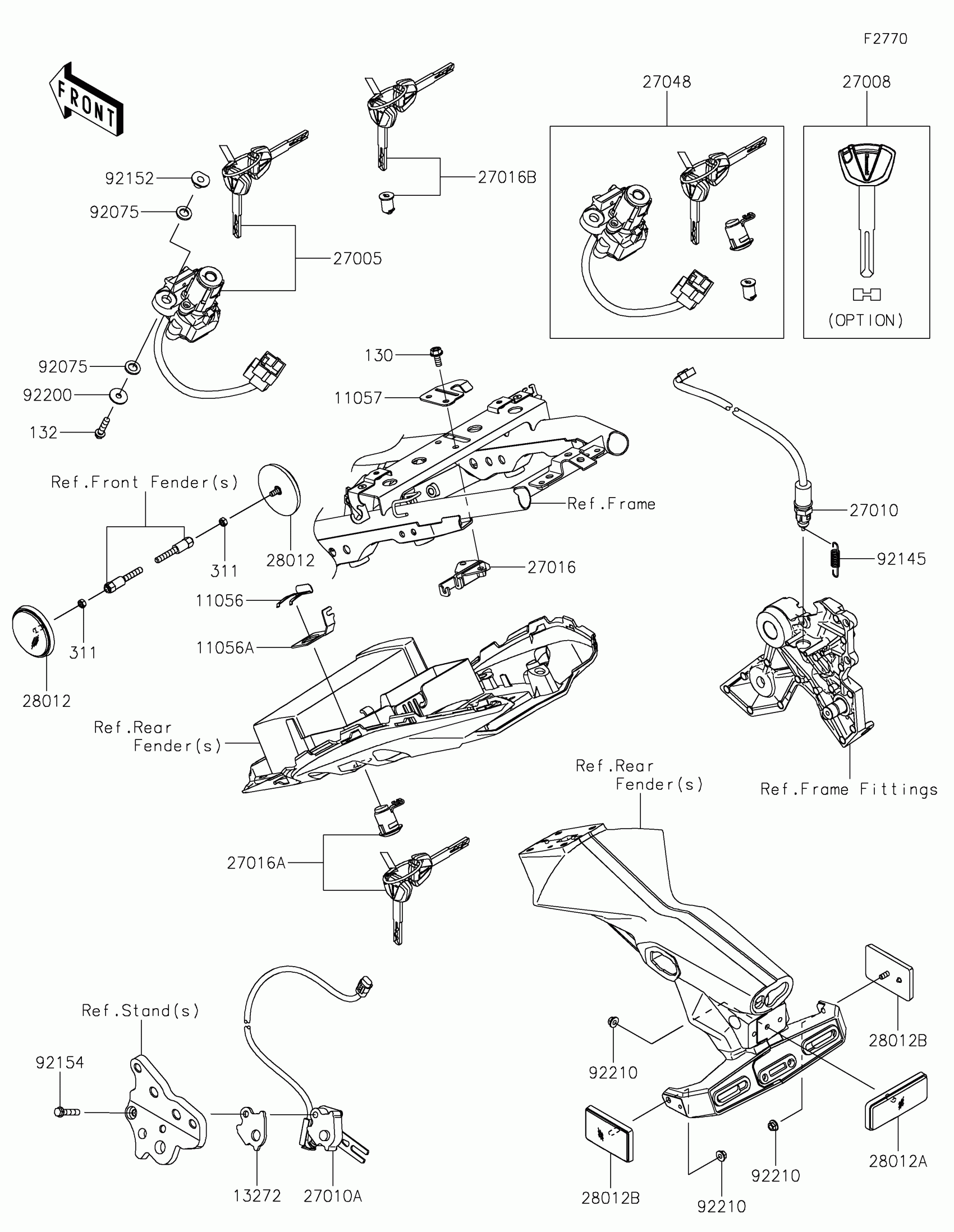

2024 Kawasaki Ninja 650 KRT Edition Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,CLASP

11056-0238

1

$4.75

In stock

11056A

BRACKET,SEAT LOCK

11056-2119

1

$3.93

In stock

11057

BRACKET,STRIKER

11057-2812

1

$1.93

In stock

13272

PLATE

13272-1330

1

$2.95

In stock

27005

1

$181.84

In stock

27008

KEY-LOCK,BLANK

27008-0662

1

$26.43

In stock

27010

SWITCH,BRAKE

27010-0857

1

$26.53

In stock

27010A

SWITCH,SIDE STAND

27010-0920

1

$120.25

In stock

27016

1

$14.14

In stock

27016A

LOCK-ASSY,SEAT

27016-5430

1

$137.10

In stock

27016B

LOCK-ASSY,TANK CAP

27016-5431

1

$124.05

In stock

27048

SWITCH-ASSY

27048-5282

1

$421.09

In stock

28012

1

$22.37

In stock

28012A

REFLECTOR-REFLEX

28012-1077

1

$21.76

In stock

28012B

REFLECTOR-REFLEX

28012-1088

1

$20.82

In stock

92075

DAMPER

92075-1564

1

$4.35

In stock

92145

SPRING,REAR BRAKE

92145-1896

1

$4.42

In stock

92152

COLLAR,6X9X10.6

92152-1971

1
Out of stock

92154

BOLT,FLANGED,6X30

92154-1040

1

$2.19

In stock

92200

WASHER,6X20X1.6

92200-0780

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock

130

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

132

1

$2.29

In stock

311

NUT-HEX,5MM

311AB0500

1

$0.49

In stock
