1989 Kawasaki Ninja® 600R Oil Pan Diagram

← All diagrams

Find the part on the Oil Pan diagram for your 1989 Kawasaki Ninja® 600R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

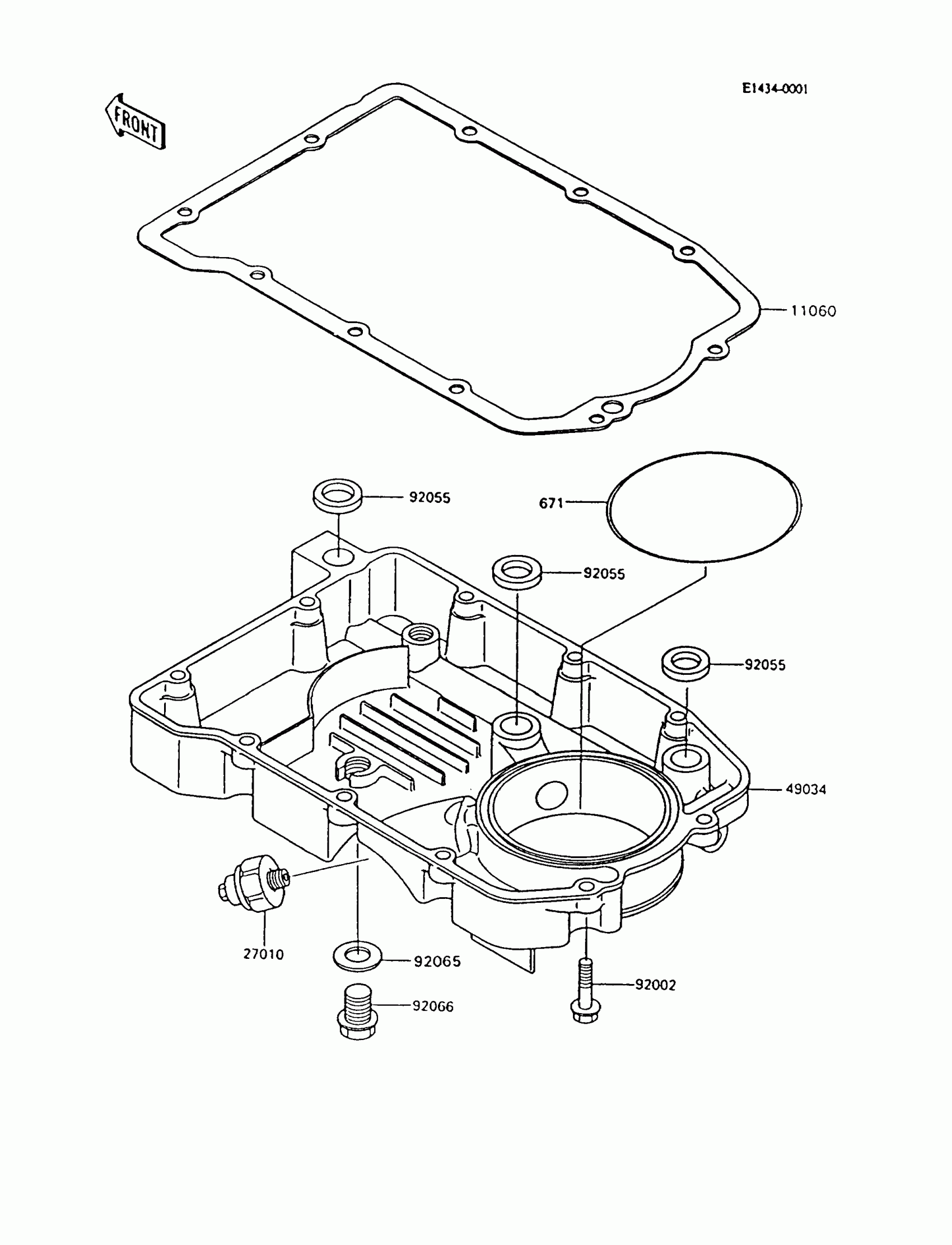

1989 Kawasaki Ninja® 600R Oil Pan Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,OIL PAN

11009-1501

1
Out of stock

11009A

GASKET,12X22X2

92065-097

1

$0.76

In stock

27010

SWITCH,OIL PRESSURE

27010-1155

1

$36.57

In stock

49034

PAN-OIL

49034-1060

1
Out of stock

92002

BOLT,6X25

92002-1089

1

$1.92

In stock

92055

RING-O,19.5MM

92055-077

1

$4.65

In stock

92066

1

$4.88

In stock

671

O RING,90MM

671B2590

1

$7.86

In stock
