1989 Kawasaki Ninja® 600R Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 1989 Kawasaki Ninja® 600R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

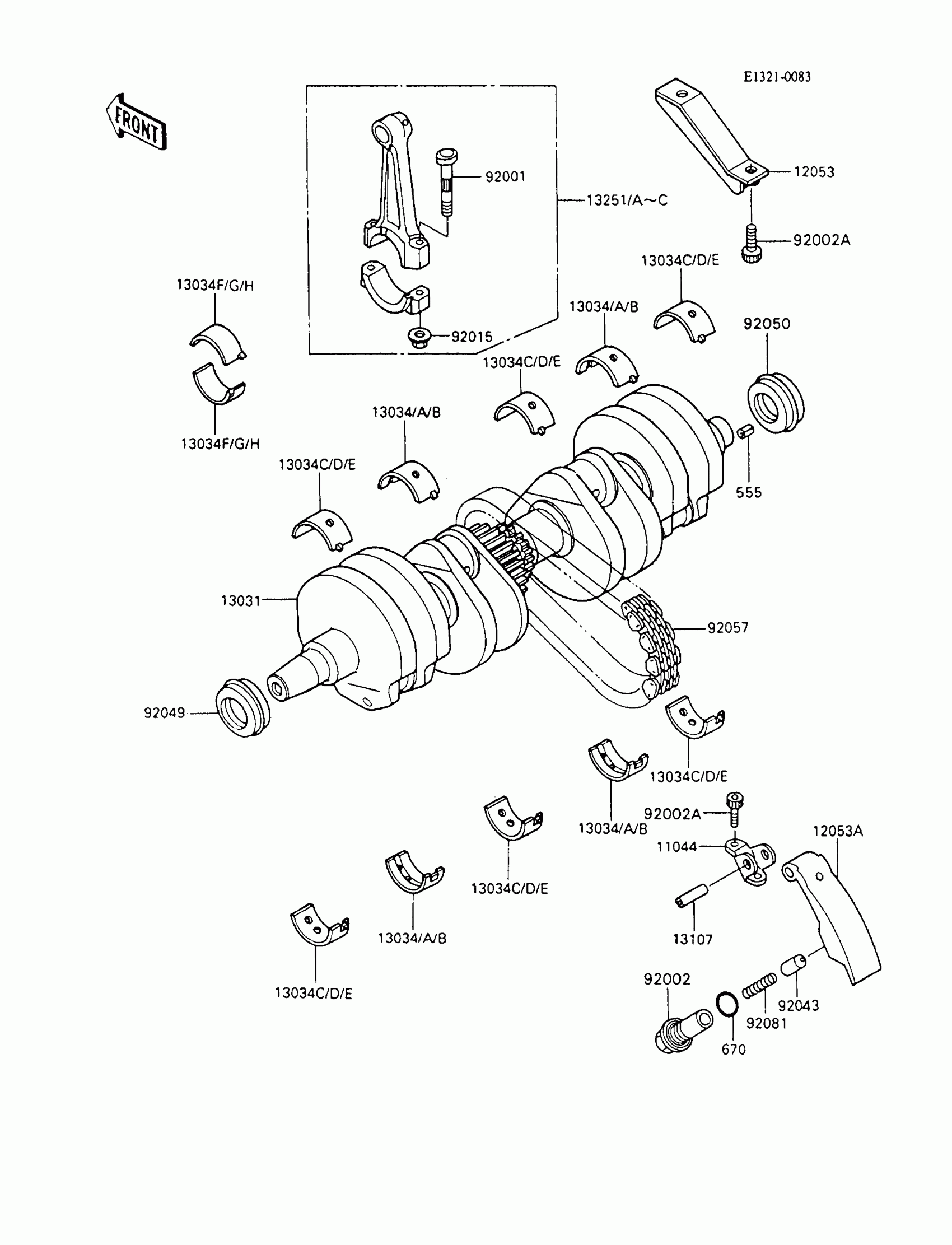

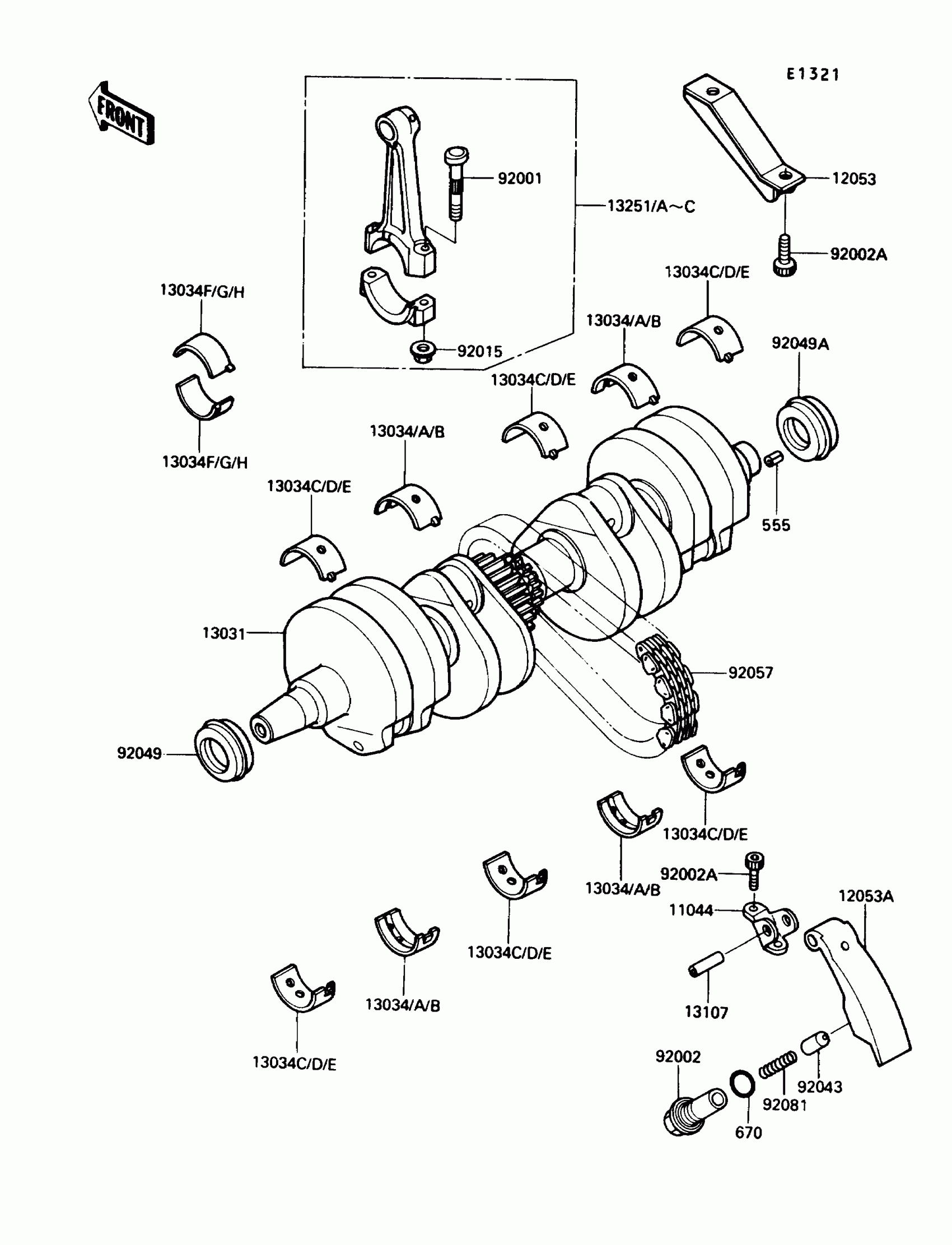

1989 Kawasaki Ninja® 600R Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11044

BRACKET,CHAIN GUIDE

11044-1075

1
Out of stock

12053

GUIDE-CHAIN,UPP

12053-1156

1
Out of stock

12053A

GUIDE-CHAIN,LWR

12053-1157

1

$57.24

In stock

13031

CRANKSHAFT-COMP

13031-1245

1
Out of stock

13034

—

$19.83

In stock

13034A

—

$19.83

In stock

13034B

—

$19.60

In stock

13034C

—

$19.83

In stock

13034D

—

$19.83

In stock

13034E

—

$19.83

In stock

13034F

—

$19.83

In stock

13034G

—

$19.83

In stock

13034H

BUSHING,CONNECTING ROD,BROWN

13034-1069

—
Out of stock

13107

SHAFT,8X25

13107-1142

1

$7.56

In stock

13251

ROD-ASSY-CONNECTING,H

13251-1081-HH

1
Out of stock

13251A

ROD-ASSY-CONNECTING,I

13251-1081-II

1
Out of stock

13251B

ROD-ASSY-CONNECTING,J

13251-1081-JJ

1
Out of stock

13251C

ROD-ASSY-CONNECTING,K

13251-1081-KK

1
Out of stock

92001

1

$9.27

In stock

92002

BOLT

92002-1479

1
Out of stock

92002A

BOLT,SOCKET,6X14

92002-1592

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1311

1
Out of stock

92043

PIN

92043-076

1

$11.22

In stock

92049

SEAL-OIL,HSCY25367

92049-1013

1
Out of stock

92049A

SEAL-OIL,HSCY25397

92050-081

1
Out of stock

92057

1

$158.21

In stock

92081

SPRING

92081-112

1

$5.37

In stock

555

PIN-SPRING,4X8

555A0408

1

$3.12

In stock

670

O RING,16MM

670B2016

1

$1.20

In stock
