1989 Kawasaki Ninja® 600R Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 1989 Kawasaki Ninja® 600R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

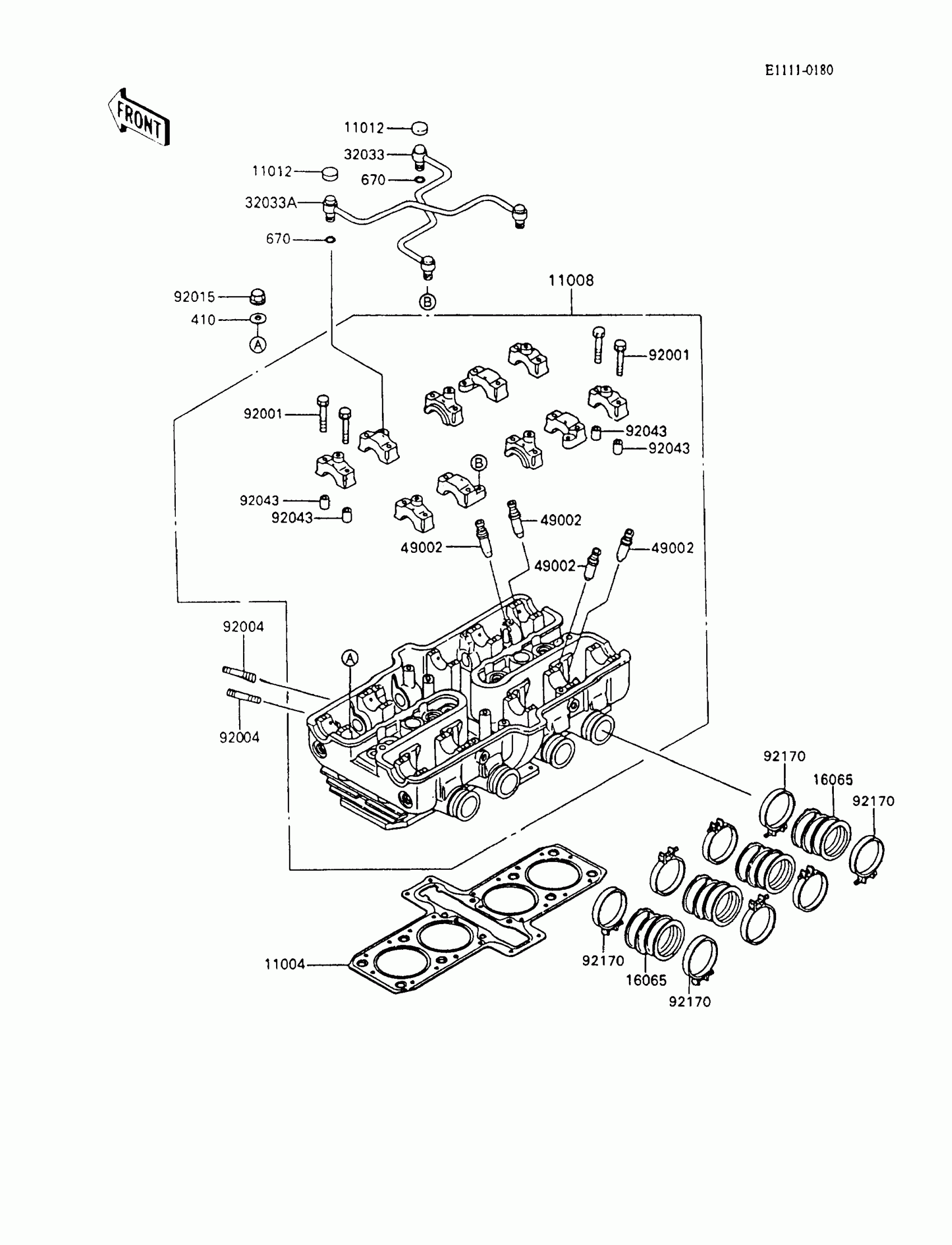

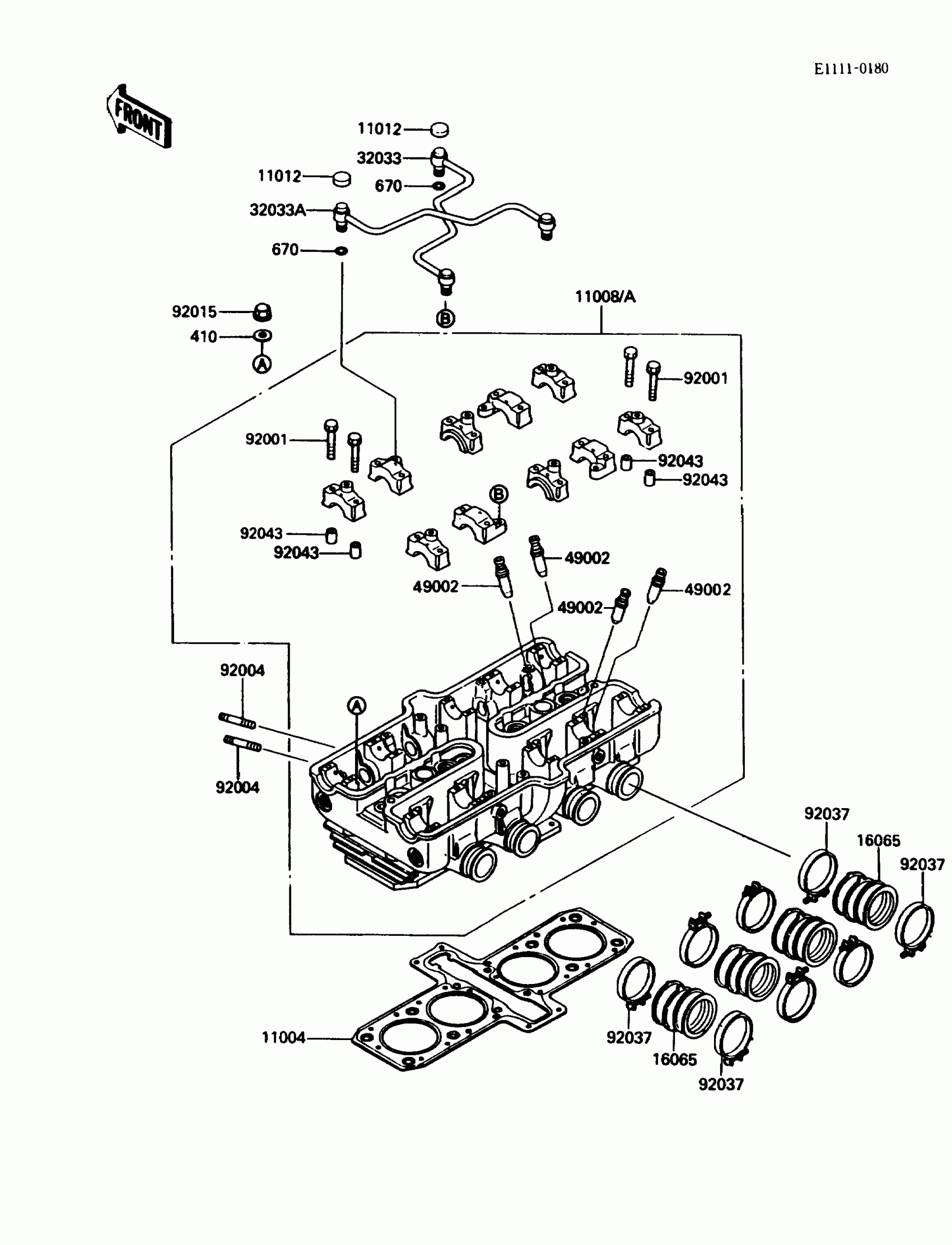

1989 Kawasaki Ninja® 600R Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-1152

1

$109.59

In stock

11008

HEAD-COMP-CYLINDER

11008-1195

1
Out of stock

11008A

HEAD-COMP-CYLINDER

11008-1196

1
Out of stock

11012

CAP

11012-1491

1
Out of stock

16065

HOLDER-CARBURETOR

16065-1129

1

$22.41

In stock

32033

PIPE

32033-1942

1
Out of stock

32033A

PIPE

32033-1943

1
Out of stock

49002

GUIDE-VALVE

49002-1081

1
Out of stock

92001

BOLT,FLANGED,6X38

92001-1105

1

$3.72

In stock

92004

STUD,6X27

92004-066

1
Out of stock

92015

NUT,CAP,8MM

92015-1151

1
Out of stock

92037

CLAMP

92037-1326

1

$7.14

In stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

410

WASHER PLAIN 8MM

410B0800

1
Out of stock

670

O RING

670D1505

1

$3.43

In stock
