1989 Kawasaki Ninja® 600R Muffler Diagram

← All diagrams

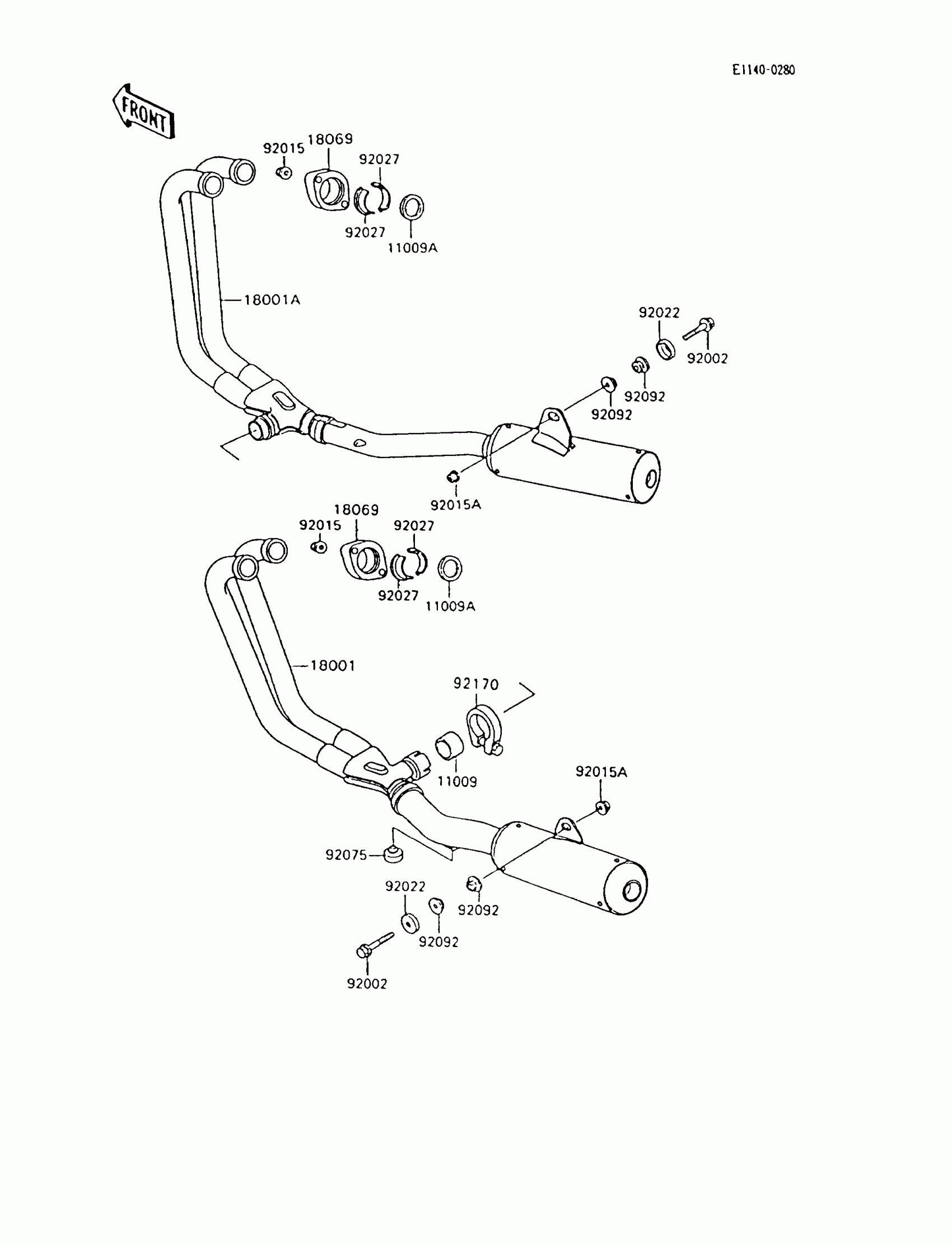

Find the part on the Muffler diagram for your 1989 Kawasaki Ninja® 600R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Ninja® 600R Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,MUFFLER CONNECTING

11009-1638

1
Out of stock

11009A

1

$6.55

In stock

18001

MUFFLER,LH

18001-1617

1

$527.83

In stock

18001A

MUFFLER,RH

18001-1655

1

$527.83

In stock

18001B

MUFFLER,LH

18001-1719

1
Out of stock

18001C

MUFFLER,RH

18001-1720

1

$761.53

In stock

18069

HOLDER-EXHAUST PIPE

18069-1025

1

$22.27

In stock

92002

BOLT,10X55

92002-1127

1

$9.27

In stock

92015

NUT,6MM

92015-1365

1

$3.97

In stock

92015A

NUT,FLANGED,10MM

92015-1387

1

$3.43

In stock

92022

WASHER

92022-289

1
Out of stock

92027

COLLAR

92027-1365

1

$7.14

In stock

92037

1

$9.70

In stock

92075

DAMPER

92075-015

1

$3.97

In stock

92092

1

$13.70

In stock
