1986 Kawasaki Ninja® 600 Rocker Arms/valves Diagram

← All diagrams

Find the part on the Rocker Arms/valves diagram for your 1986 Kawasaki Ninja® 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

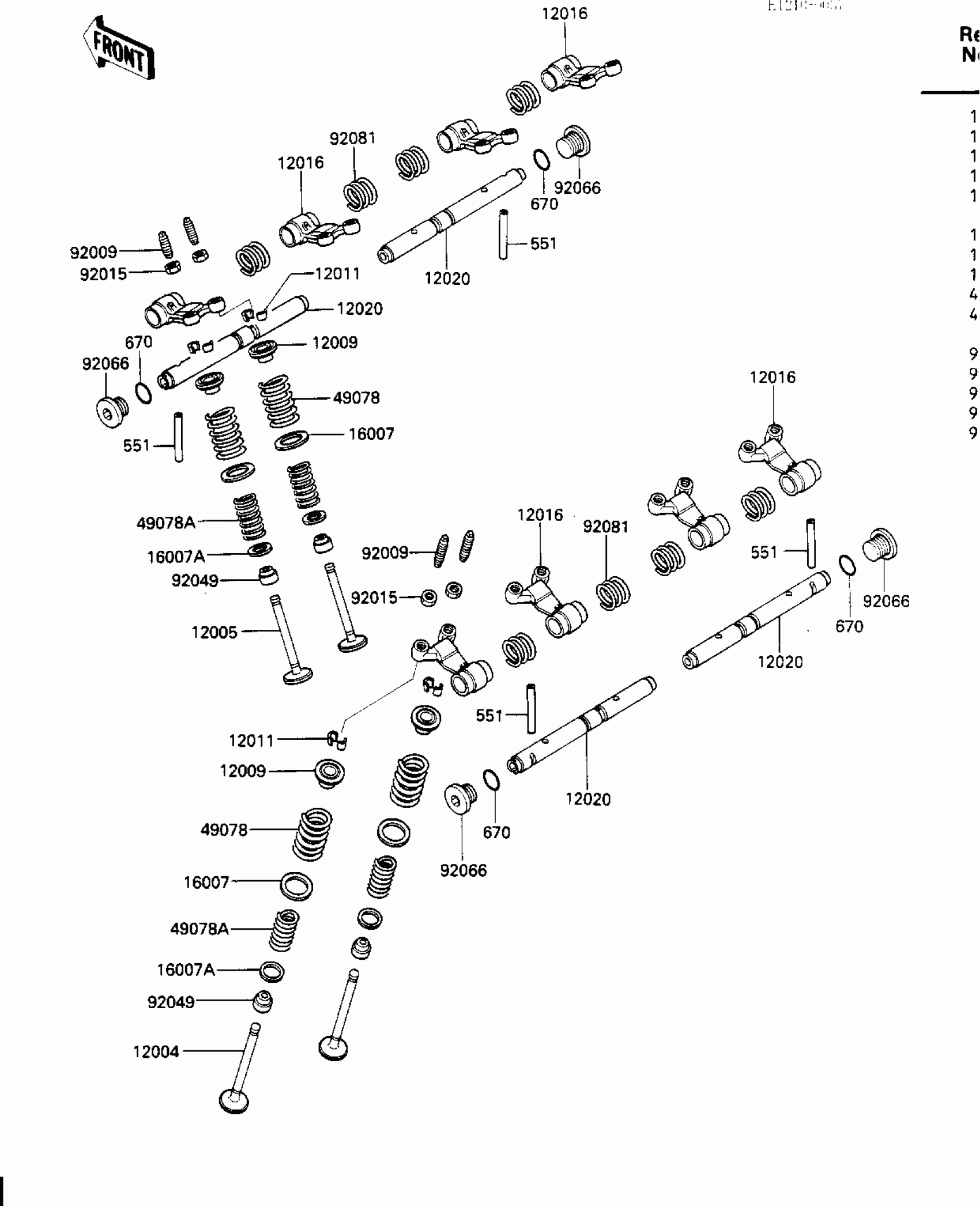

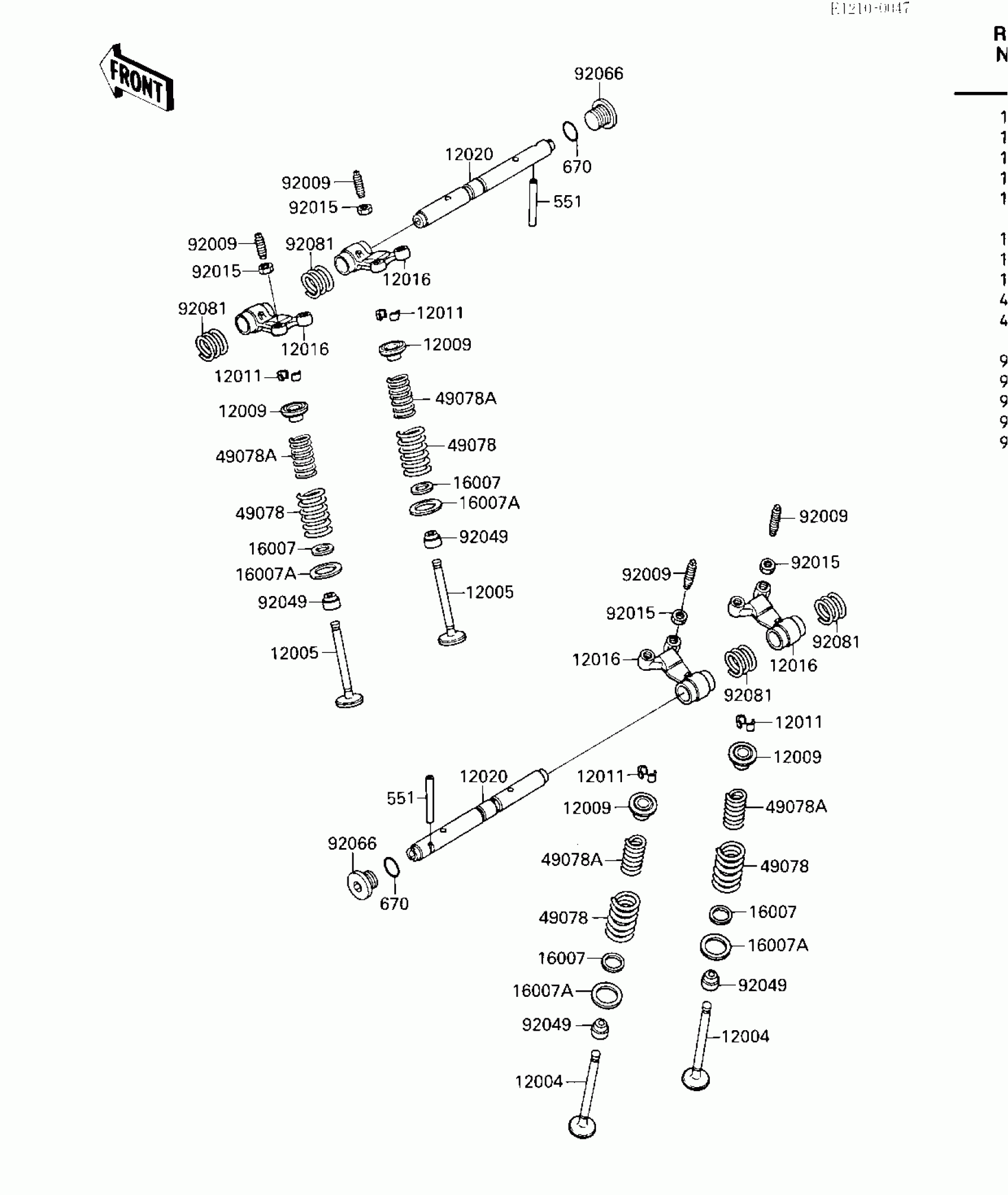

1986 Kawasaki Ninja® 600 Rocker Arms/valves Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12004

VALVE-INTAKE

12004-1075

1
Out of stock

12005

VALVE-EXHAUST

12005-1062

1
Out of stock

12009

RETAINER-VALVE SPRING

12009-1060

1
Out of stock

12011

COLLET

12011-1051

1
Out of stock

12016

ARM-ROCKER

12016-1062

1
Out of stock

12020

SHAFT-ROCKER

12020-1058

1
Out of stock

16007

SEAT-SPRING,17.5X23.8X0.5

16007-1144

1
Out of stock

16007A

SEAT-SPRING,12.1X16.2X0.5

16007-1143

1
Out of stock

49078

SPRING-ENGINE VALVE,OUTER

49078-1060

1
Out of stock

49078A

SPRING-ENGINE VALVE,INNER

49078-1061

1
Out of stock

92009

SCREW,VALVE ADJUST

92009-1109

1
Out of stock

92015

NUT,5MM

92015-1529

1
Out of stock

92049

SEAL-OIL,VSB58.558

92049-1218

1
Out of stock

92066

PLUG,14X11.5

92066-1192

1
Out of stock

92081

SPRING,ROCKER ARM

92081-1636

1
Out of stock

551

PIN-DOWEL

551A0540

1
Out of stock

670

O RING,15MM

670B2015

1
Out of stock
