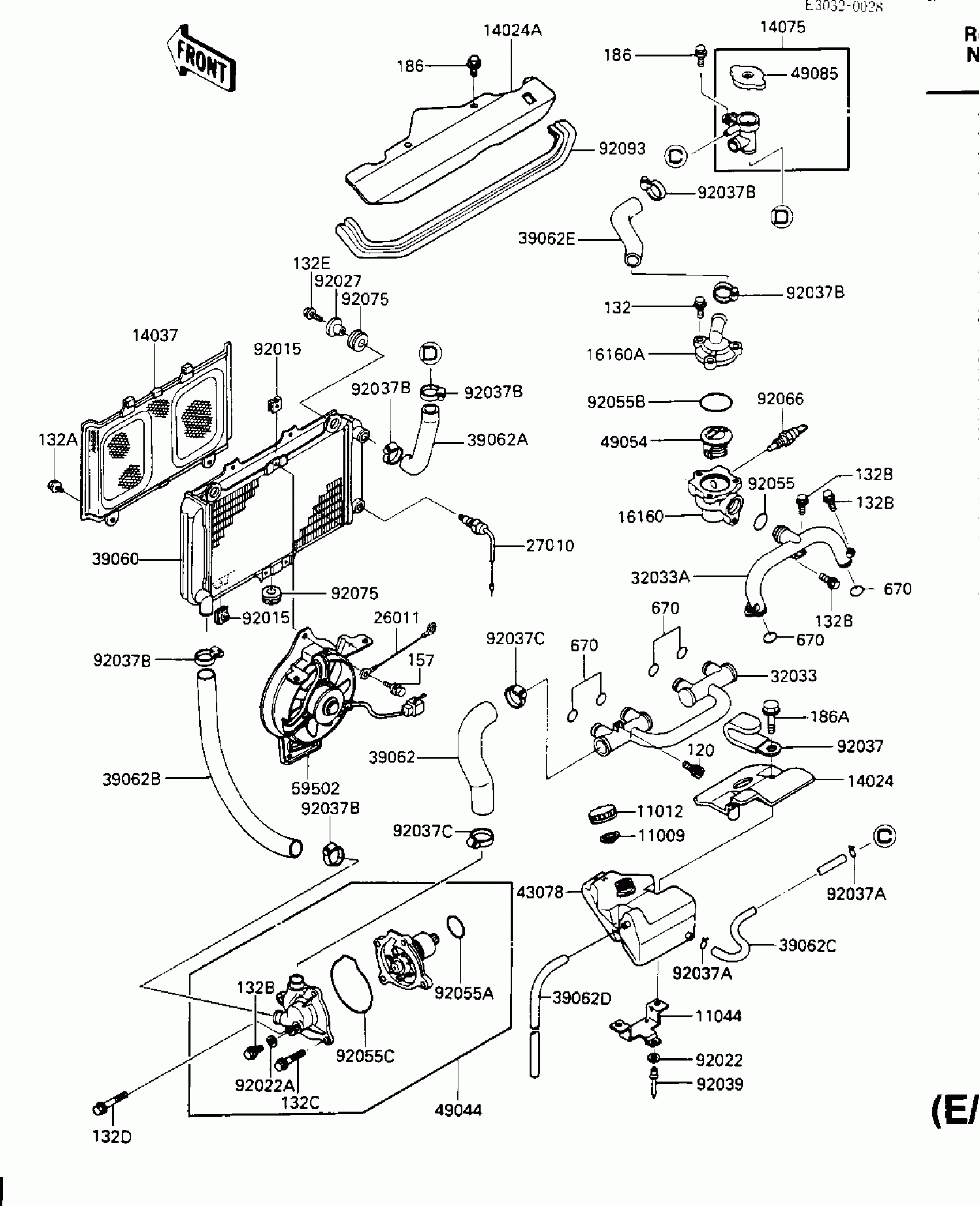

Kawasaki Ninja® 600 RADIATOR/FAN/WATER PUMP (E/NO. 029801-) Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.49

11012

CAP

11012-1084

$1.72

11044

BRACKET,RESERVOIR

11044-1170

Unavailable

14024

COVER

14024-1090

Unavailable

14024A

COVER,RADIATOR

14024-1137

Unavailable

14037

SCREEN

14037-1083

$101.49

14075

CAP-ASSY,RADIATOR

14075-1061

$148.83

16160

BODY,THERMOSTAT,LWR

16160-1092

$79.09

16160A

BODY,THERMOSTAT,UPP

16160-1129

Unavailable

26011

WIRE-LEAD,GROUND

26011-1360

$4.66

27010

SWITCH,FAN

27010-1180

$134.14

32033

PIPE

32033-1593

Unavailable

32033A

PIPE

32033-1594

$121.93

39060

RADIATOR

39060-1067

Unavailable

39062

HOSE-COOLING,PUMP-CYLINDER

39062-1111

$36.50

39062A

HOSE-COOLING

39062-1113

Unavailable

39062B

HOSE-COOLING

39062-1114

Unavailable

39062C

HOSE-COOLING,RESERVOIR

39062-1269

$26.99

39062D

HOSE-COOLING,RESERVOIR

39062-1269

$26.99

39062E

HOSE-COOLING

39062-1130

Unavailable

43078

RESERVOIR

43078-1062

Unavailable

49044

PUMP-WATER

49044-1054

$364.83

49054

THERMOSTAT

49054-1055

$54.56

49085

CAP-ASSY-PRESSURE

49085-1003

$32.91

59502

FAN-ASSY

59502-1057

$467.01

92015

NUT

92015-1487

$4.80

92022

WASHER,5.2X16X1.2

25009-004

$2.72

92022A

WASHER,6MM

92022-1627

$4.66

92027

COLLAR,FUEL TANK FITT

92027-1134

$10.28

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP,TUBE

92037-147

$7.34

92037B

CLAMP,COOLING HOSE

92037-1589

$18.57

92037C

CLAMP,COOLING HOSE

92037-1600

$6.34

92039

RIVET

92039-1038

Unavailable

92055

RING-O,22.1X2.4

92055-1081

$3.55

92055A

RING-O,33.8MM

92055-1266

$20.41

92055B

RING-O,44.7X2.4

92055-1279

$7.34

92055C

RING-O,WATER PUMP

92055-1315

$12.78

92066

PLUG,SENSOR WATER

92066-1183

$66.41

92075

DAMPER

92160-1007

$5.52

92093

SEAL,RADIATOR COVER

92093-1189

$32.14

120

BOLT-SOCKET,6X12

120S0612

Unavailable

132

BOLT-FLANGED-SMALL,6X20

132E0620

Unavailable

132A

BOLT-FLANGED-SMALL,6X10

132J0610

Unavailable

132B

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

132C

BOLT-FLANGED-SMALL,6X25

132J0625

Unavailable

132D

BOLT-FLANGED-SMALL

132J0645

Unavailable

132E

BOLT-FLANGED-SMALL,8X25

132J0825

Unavailable

157

BOLT-WSP

157J0616

$1.08

186

BOLT-UPSET-WP,6X14

186C0614

Unavailable

186A

BOLT-UPSET-WP

186C0650

$2.49

670

O RING,16MM

670B2016

$1.49
