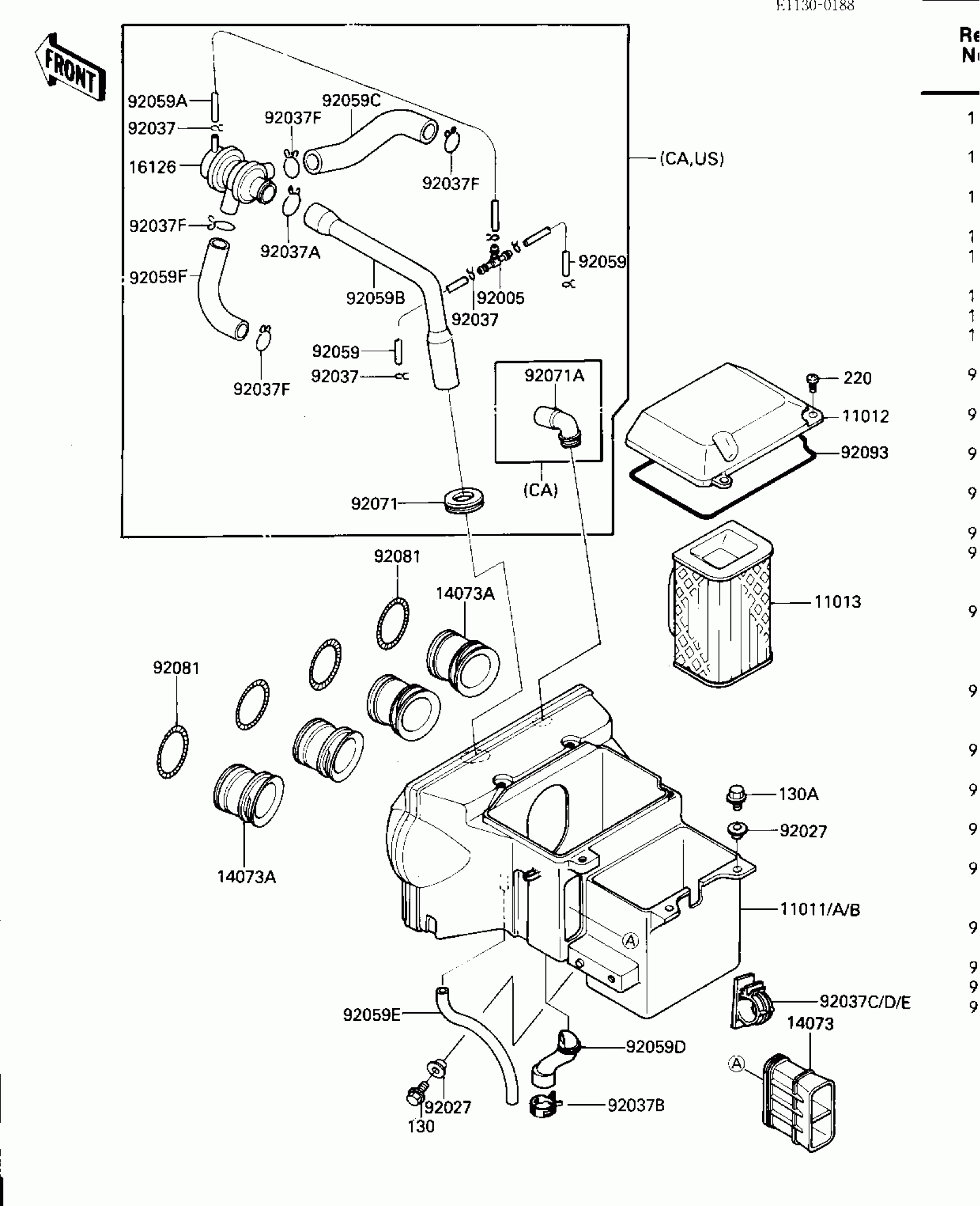

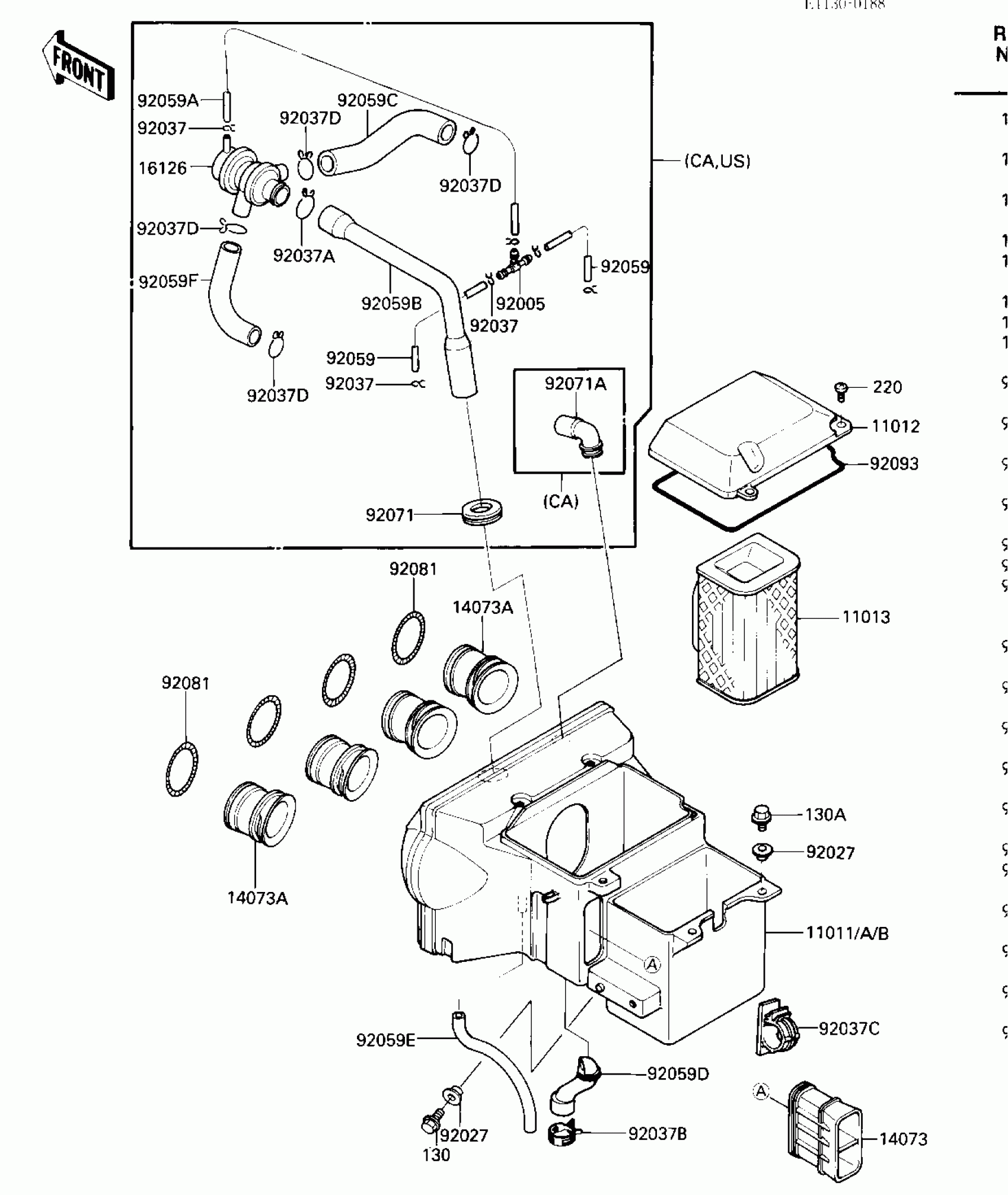

Kawasaki Ninja® 600 AIR CLEANER Diagram

#

Description
Price

11011

CASE-AIR FILTER

11011-1191

Unavailable

11011A

CASE-AIR FILTER (Canada)

11011-1196

Unavailable

11011B

CASE-AIR FILTER

11011-1197

Unavailable

11012

CAP,AIR FILTER CASE

11012-1437

Unavailable

11013

ELEMENT-AIR FILTER

11013-1157

$49.08

14073

DUCT,AIR INTAKE

14073-1210

Unavailable

14073A

DUCT,CARBURETOR

14073-1211

$32.75

16126

VALVE,AIR SWITCH

16126-1133

$166.66

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92027

COLLAR

92027-122

$6.56

92037

CLAMP,TUBE

92037-072

$5.51

92037A

CLAMP,TUBE

92037-1076

$7.14

92037B

CLAMP

92037-1730

$8.39

92037C

CLAMP,HARNESS

92037-1793

$8.03

92037D

CLAMP,HARNESS

92037-1793

$8.03

92037E

CLAMP,HARNESS

92037-1793

$8.03

92037F

CLAMP,TUBE

92037-213

$3.29

92059A

TUBE,4X9X290

92059-1043

$9.85

92059B

TUBE,L=355

92059-1448

$30.25

92059C

TUBE,RH

92059-1543

Unavailable

92059D

TUBE,BREATHER

92059-1545

Unavailable

92059E

TUBE

92059-1600

$11.44

92059F

TUBE,AIR

92059-1624

Unavailable

92071

GROMMET,AIR FILTER

92071-1013

$5.61

92071A

GROMMET,AIR FILTER

92071-1114

$23.73

92081

SPRING,AIR FILTER DUCT

92144-1771

$9.84

92093

SEAL,AIR FILTER CASE

92093-1186

$9.90

130

BOLT-FLANGED

130B0614

Unavailable

130A

BOLT,FLANGED,6X20

130B0620

Unavailable

220

SCREW PAN HEAD 6X10

220B0610

Unavailable
