1986 Kawasaki Ninja® 600 Crankcase Diagram

← All diagrams

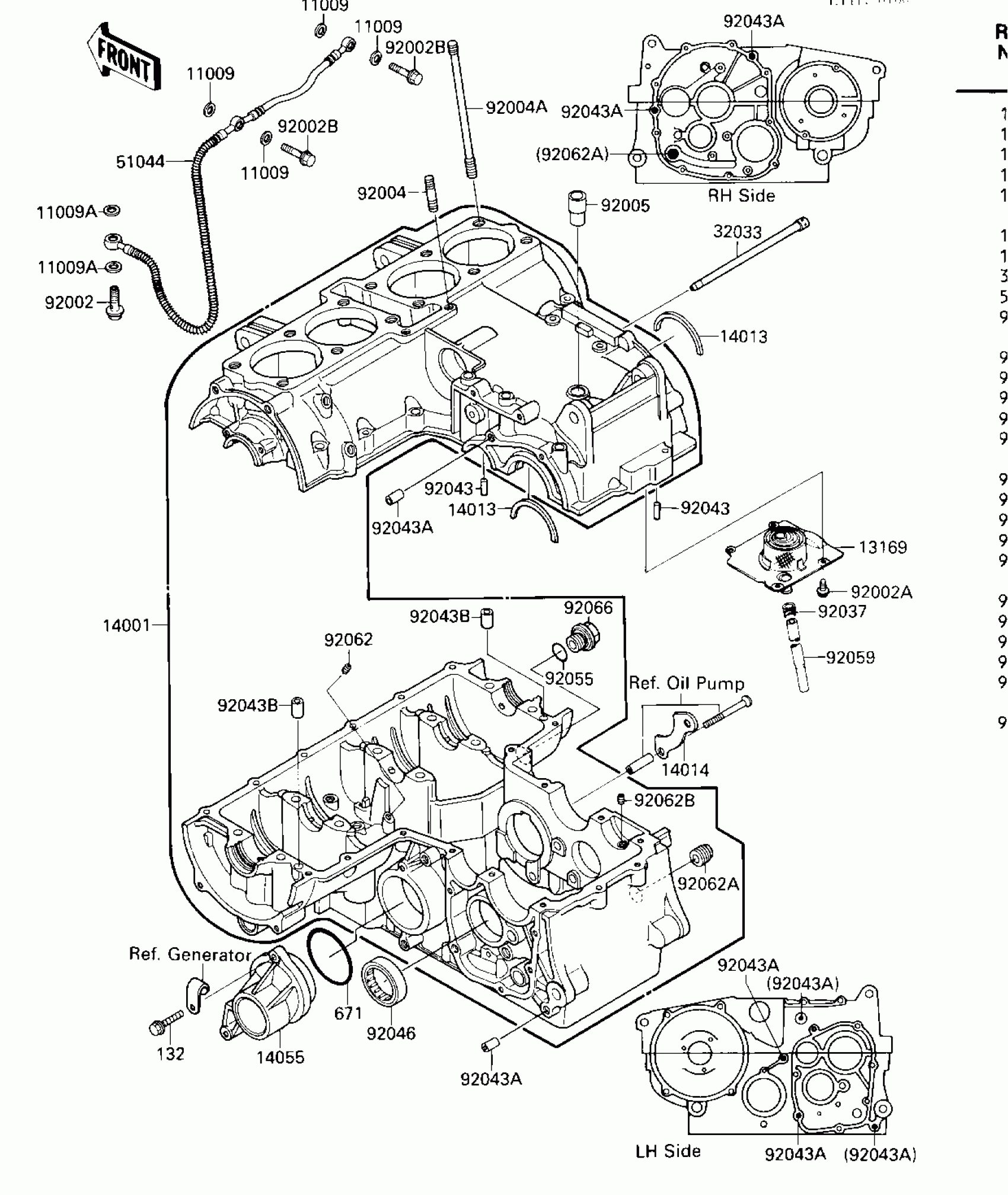

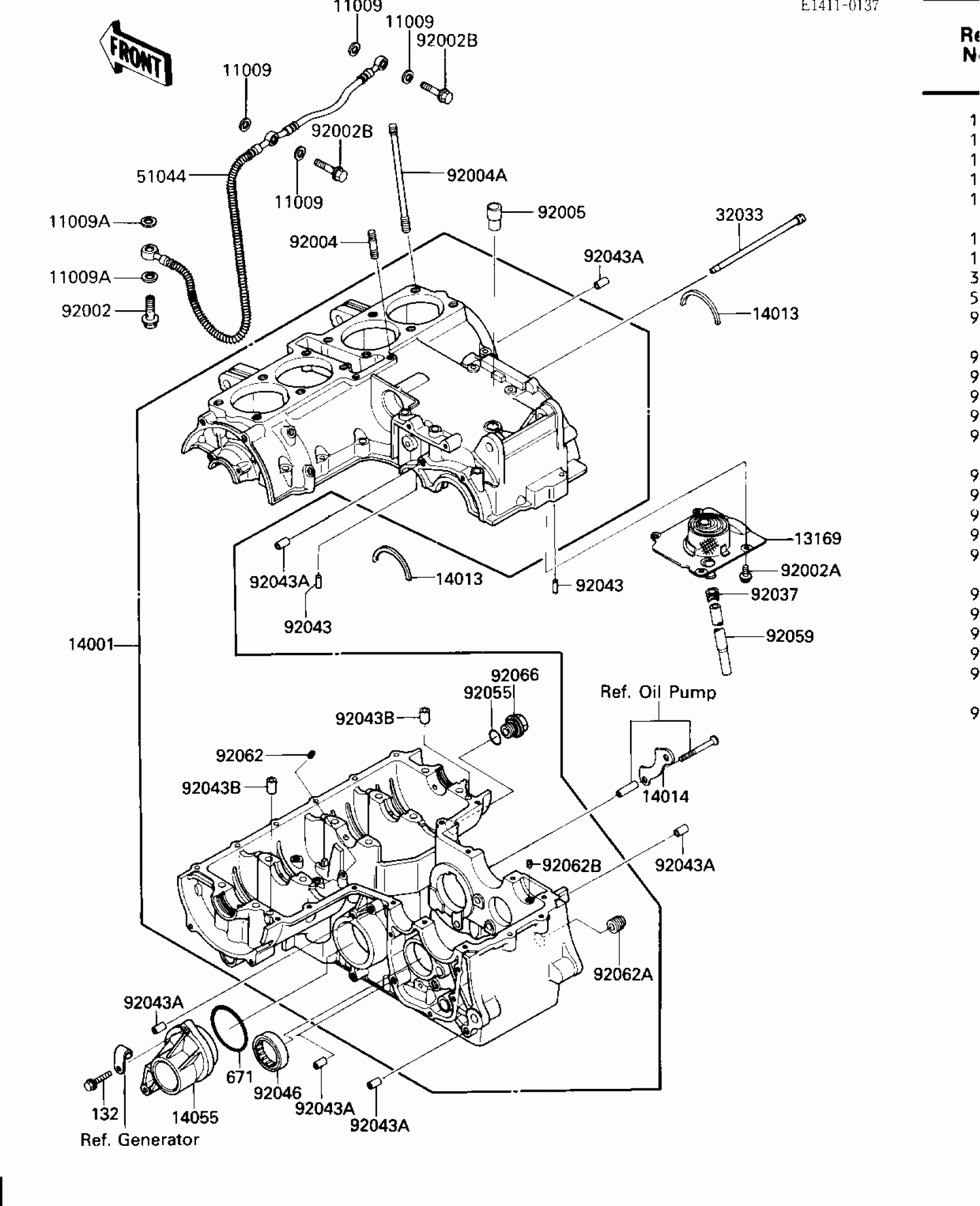

Find the part on the Crankcase diagram for your 1986 Kawasaki Ninja® 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Ninja® 600 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,8.2X14X1.0

11009-1344

1

$2.44

In stock

11009A

GASKET,12.5X18X1.5

11009-1376

1

$1.56

In stock

13169

PLATE,BREATHER

13169-1966

1
Out of stock

14001

SET-CRANKCASE

14001-5192

1
Out of stock

14013

RING-POSITION

14013-004

1
Out of stock

14014

PLATE-POSITION

14014-1006

1
Out of stock

14055

CASE-GEAR

14055-1078

1
Out of stock

32033

PIPE,OIL

32033-1858

1
Out of stock

51044

TUBE-ASSY

51044-1071

1

$241.78

In stock

92002

BOLT,BANJO,12X23

92001-1871

1

$16.05

In stock

92002A

BOLT,6X10

92002-1449

1

$3.68

In stock

92002B

BOLT,BANJO,8X24

92002-1858

1
Out of stock

92004

STUD,6X22

92004-059

1
Out of stock

92004A

STUD,8X128.5

92004-1161

1
Out of stock

92005

FITTING,BREATHER

92005-1129

1
Out of stock

92037

CLAMP,HOSE CLIP

92037-1181

1

$2.68

In stock

92043

PIN,DOWEL,6X16

92042-016

1

$3.97

In stock

92043A

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92043B

PIN,8.2X10X14

92043-1264

1

$0.53

In stock

92046

1

$23.59

In stock

92055

RING-O,20X2

92055-1146

1

$6.82

In stock

92059

TUBE

92059-1544

1
Out of stock

92062

NOZZLE,BLACK

92062-011

1

$8.37

In stock

92062A

NOZZLE

92062-014

1

$9.56

In stock

92062B

NOZZLE,SILVER

92062-015

1

$3.22

In stock

92066

1

$9.11

In stock

132

BOLT-FLANGED-SMALL,6X25

132J0625

1
Out of stock

671

O RING,55MM

671B2555

1

$4.93

In stock
