1986 Kawasaki Ninja® 600 Cylinder Head Cover Diagram

← All diagrams

Find the part on the Cylinder Head Cover diagram for your 1986 Kawasaki Ninja® 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

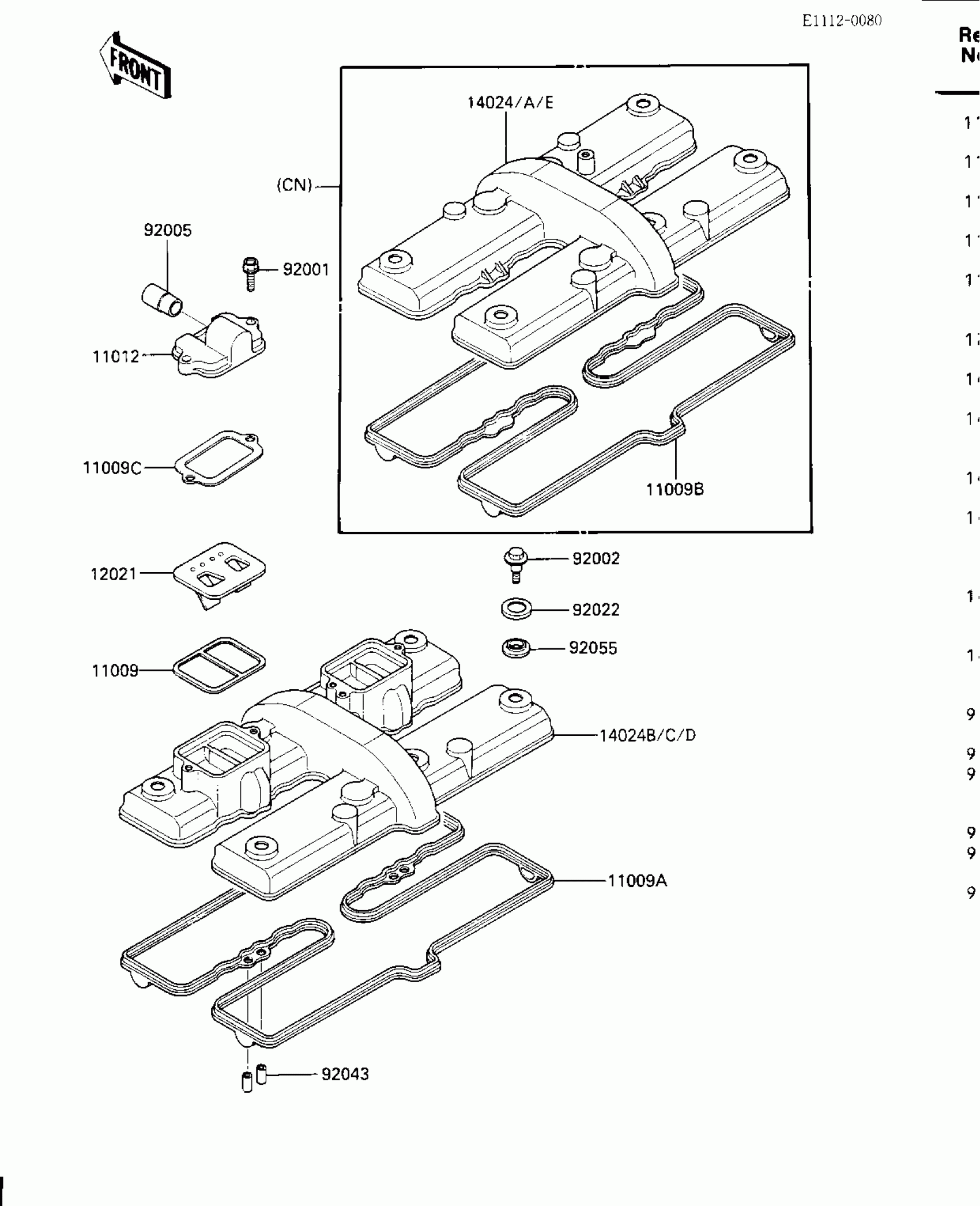

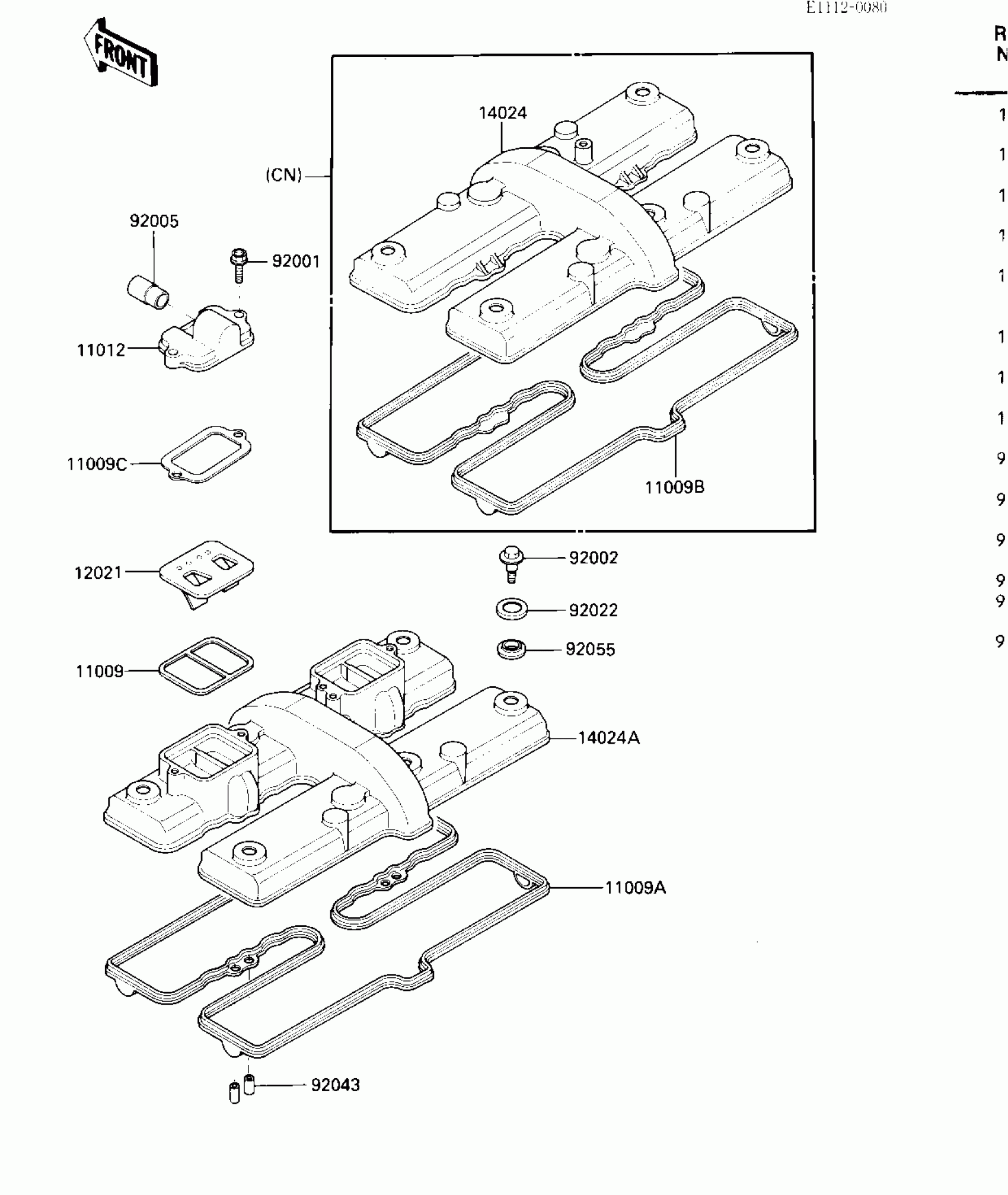

1986 Kawasaki Ninja® 600 Cylinder Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,REED VALVE

11009-1905

1
Out of stock

11009A

GASKET,CYLINDER HEAD COVER

11009-1497

1
Out of stock

11009B

GASKET,CYLINDER HEAD COVER

11009-1498

1
Out of stock

11009C

GASKET

11009-1545

1
Out of stock

11012

CAP,REED VALVE

11012-1481

1
Out of stock

12021

VALVE-ASSY-REED

12021-1053

1
Out of stock

14024

COVER,CYLINDER HEAD

14024-1142

1
Out of stock

14024B

COVER,CYLINDER HEAD

14024-1144

1
Out of stock

92001

BOLT,FLANGED,6X22

92001-1352

1
Out of stock

92002

BOLT,FLANGED,6X23.5

92150-1447

1
Out of stock

92005

FITTING,REED VALVE

92005-1006

1
Out of stock

92022

WASHER,HEAD COVER BOLT

92022-1637

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92055

RING-O,HEAD COVER BOLT

92055-1225

1
Out of stock
