1986 Kawasaki Ninja® 600 Canister Diagram

← All diagrams

Find the part on the Canister diagram for your 1986 Kawasaki Ninja® 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

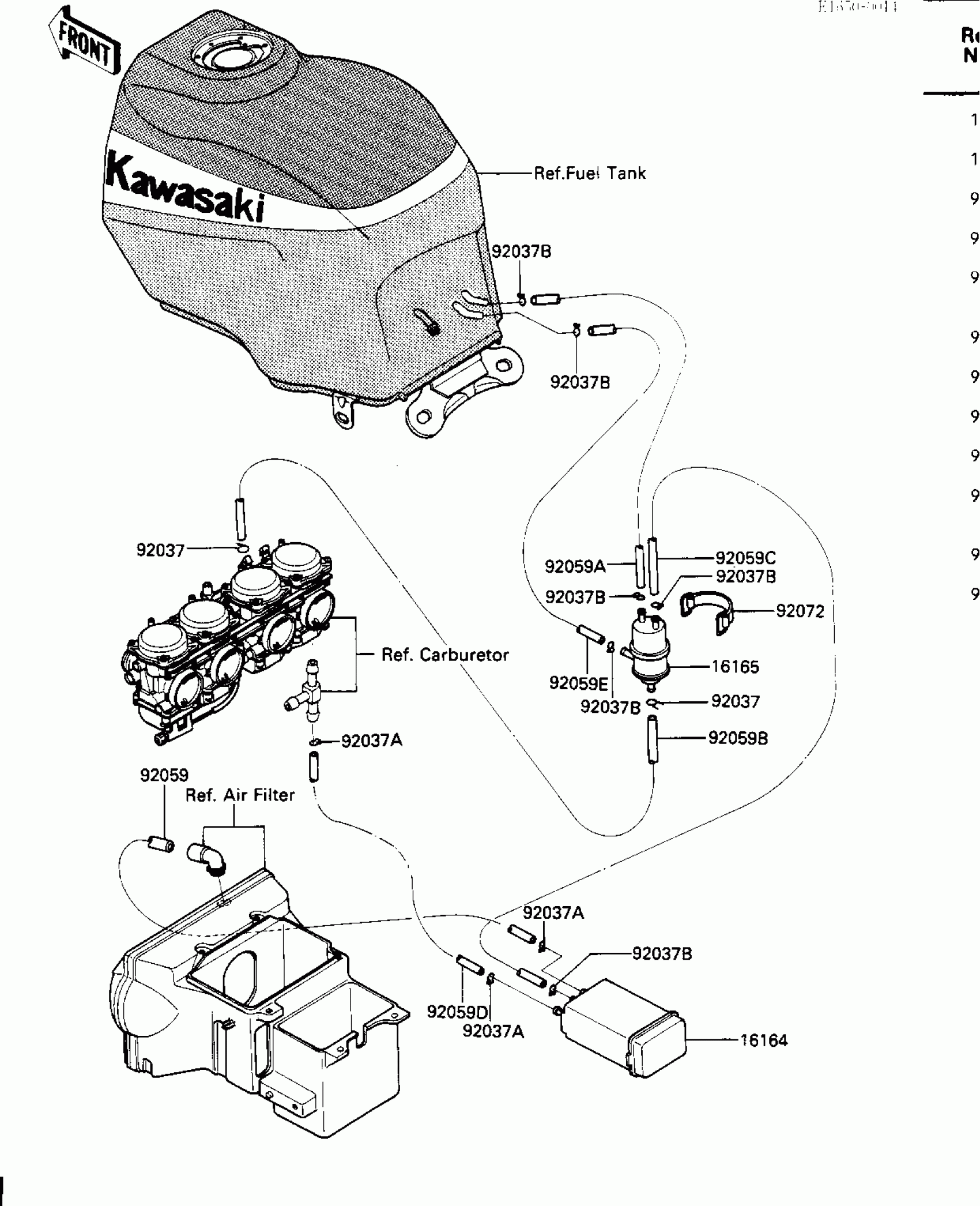

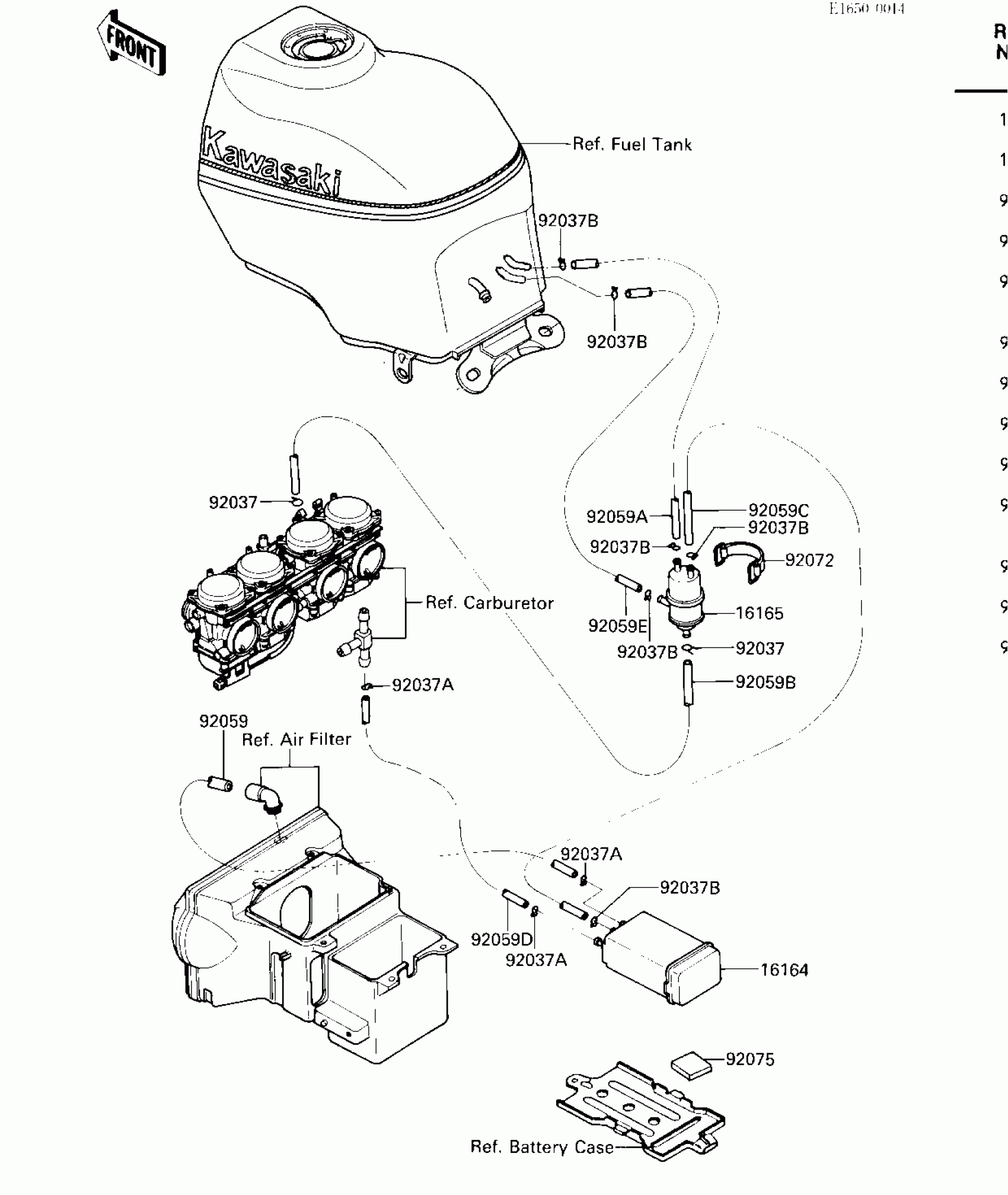

1986 Kawasaki Ninja® 600 Canister Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16164

CANISTER

16164-1052

1

$134.03

In stock

16165

SEPARATOR

16165-1001

1

$81.73

In stock

92037

CLAMP,TUBE

92037-072

1

$5.74

In stock

92037A

CLAMP-HOSE

92037-1104

1

$1.27

In stock

92037B

CLAMP,TUBE

92037-147

1

$5.84

In stock

92059

1

$41.92

In stock

92059A

TUBE,5X10X510,BLUE

92059-1527

1
Out of stock

92059B

TUBE,4X9X640.WHITE

92059-1574

1

$15.01

In stock

92059C

TUBE,5X10X380,BLUE

92059-1604

1
Out of stock

92059D

1

$22.64

In stock

92059E

TUBE

92059-1606

1
Out of stock

92072

BAND,L=50

92072-066

1

$12.72

In stock
