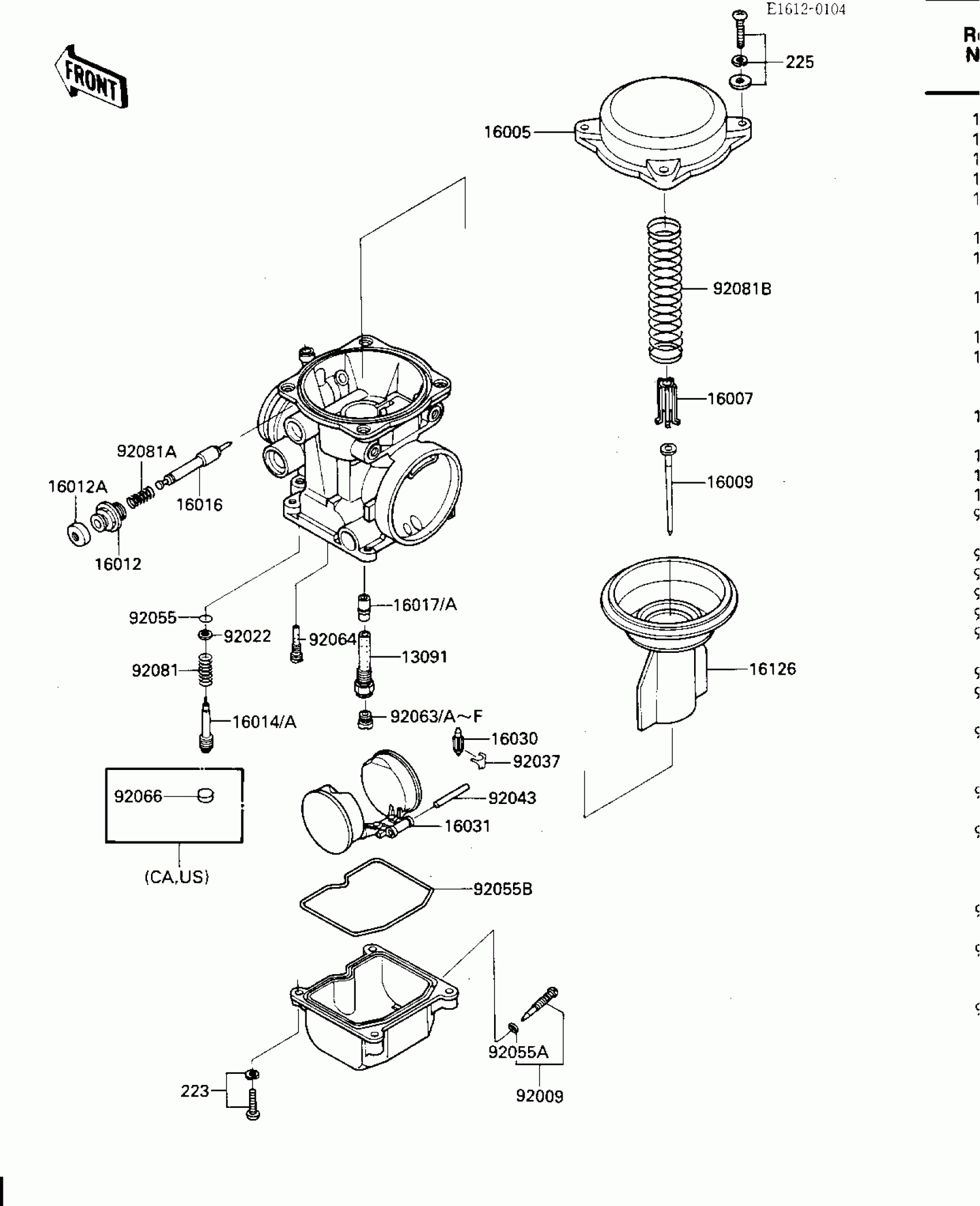

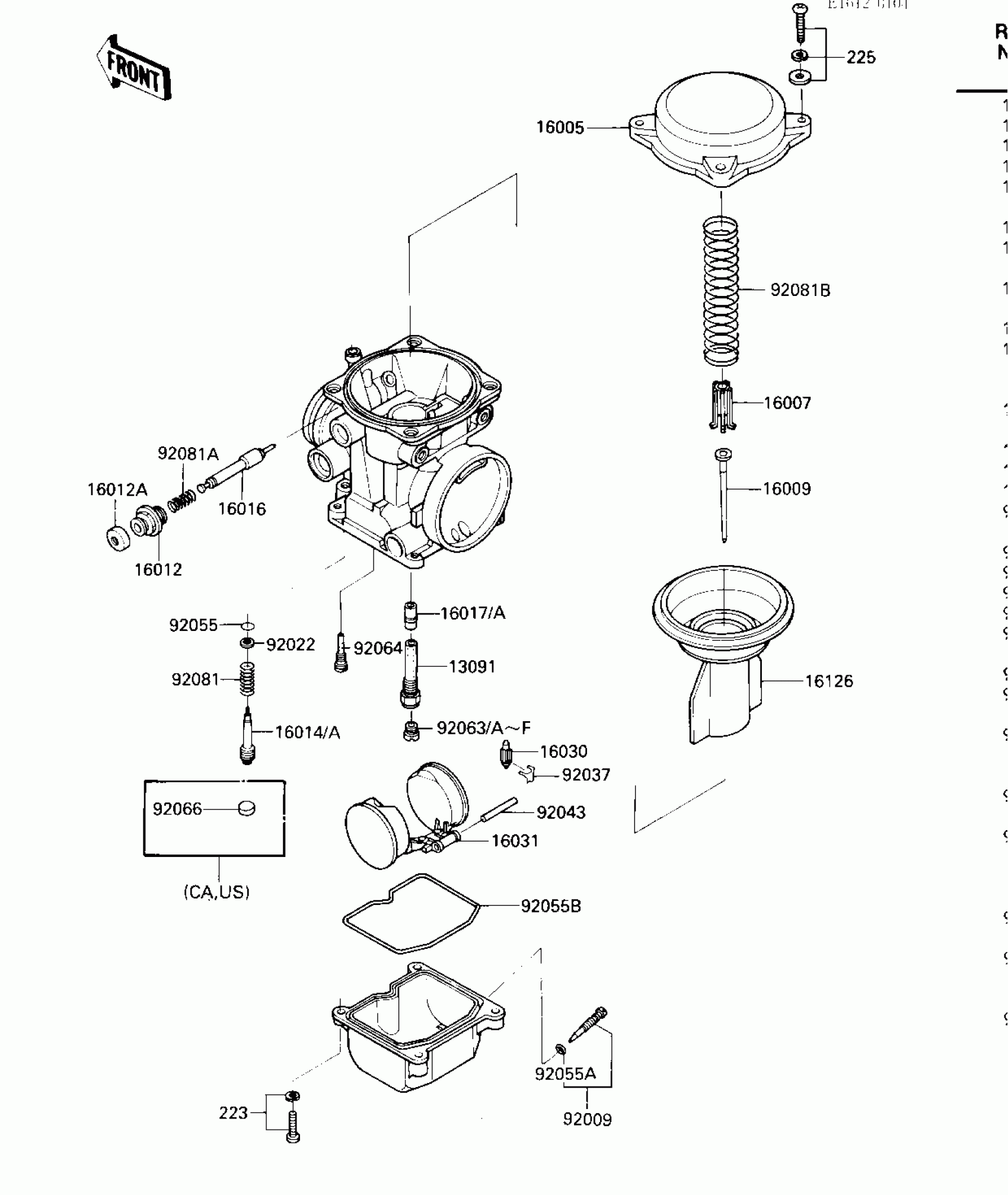

Kawasaki Ninja® 600 CARBURETOR PARTS Diagram

#

Description
Price

13091

HOLDER

13091-1391

Unavailable

16005

TOP-CHAMBER,MIXING

16005-1056

$72.08

16007

SEAT-SPRING,THROTTLE VALVE

16007-1120

$21.24

16009

NEEDLE-JET,N27L

16009-1270

$42.67

16012

CAP-STARTER PLUNGER

16012-1051

$8.50

16012A

CAP-STARTER PLUNGER

16012-1052

$11.72

16014

SCREW-PILOT AIR

16014-1029

$17.85

16014A

SCREW-PILOT AIR

16014-1054

$23.12

16016

PLUNGER,STARTER

16016-1061

$45.45

16017

JET-NEEDLE

16017-1285

Unavailable

16017A

JET-NEEDLE,01D34

16017-1286

Unavailable

16030

VALVE-FLOAT

16030-1007

$42.48

16031

FLOAT

16031-1056

$47.31

16126

VALVE,VACUUM

16126-1160

$204.57

92009

SCREW,DRAIN,M6X1.0

92009-1095

$11.33

92022

WASHER,PLAIN

92022-1003

$3.29

92037

CLAMP,FLOAT VALVE

16044-007

$6.04

92043

PIN,FLOAT

92043-1148

$10.71

92055

RING-O,PILOT ADJUST

92055-1002

$3.29

92055A

RING-O

92055-1053

$3.24

92055B

RING-O,FLOAT CHAMBER

92055-1222

$13.15

92063

JET-MAIN,#110

92063-1114

$14.02

92063A

JET-MAIN,#100

92063-1008

$14.59

92063B

JET-MAIN,#105

92063-1009

$14.90

92063C

JET-MAIN,#105

92063-1009

$14.90

92063D

JET-MAIN,#102

92063-1115

$14.59

92063E

JET-MAIN,#108

92063-1116

$14.02

92063E

JET-MAIN,#108

92063-1116

$14.02

92063F

JET-MAIN,#112

92063-1117

$14.02

92063F

JET-MAIN,#112

92063-1117

$14.02

92064

JET-PILOT,#38

92064-1119

$14.36

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$3.85

92081

SPRING,PILOT ADJUST SCREW

92081-1002

$4.14

92081A

SPRING,STARTER PLUNGER

92081-1761

$9.31

92081B

SPRING,VACUUM VALVE

92081-1912

$24.85

223

UNAVAILABLE IN PRICE BOOK

223C0446

Unavailable

225

SCREW-PAN-WSP-CROS,4X18

225C0418

Unavailable
