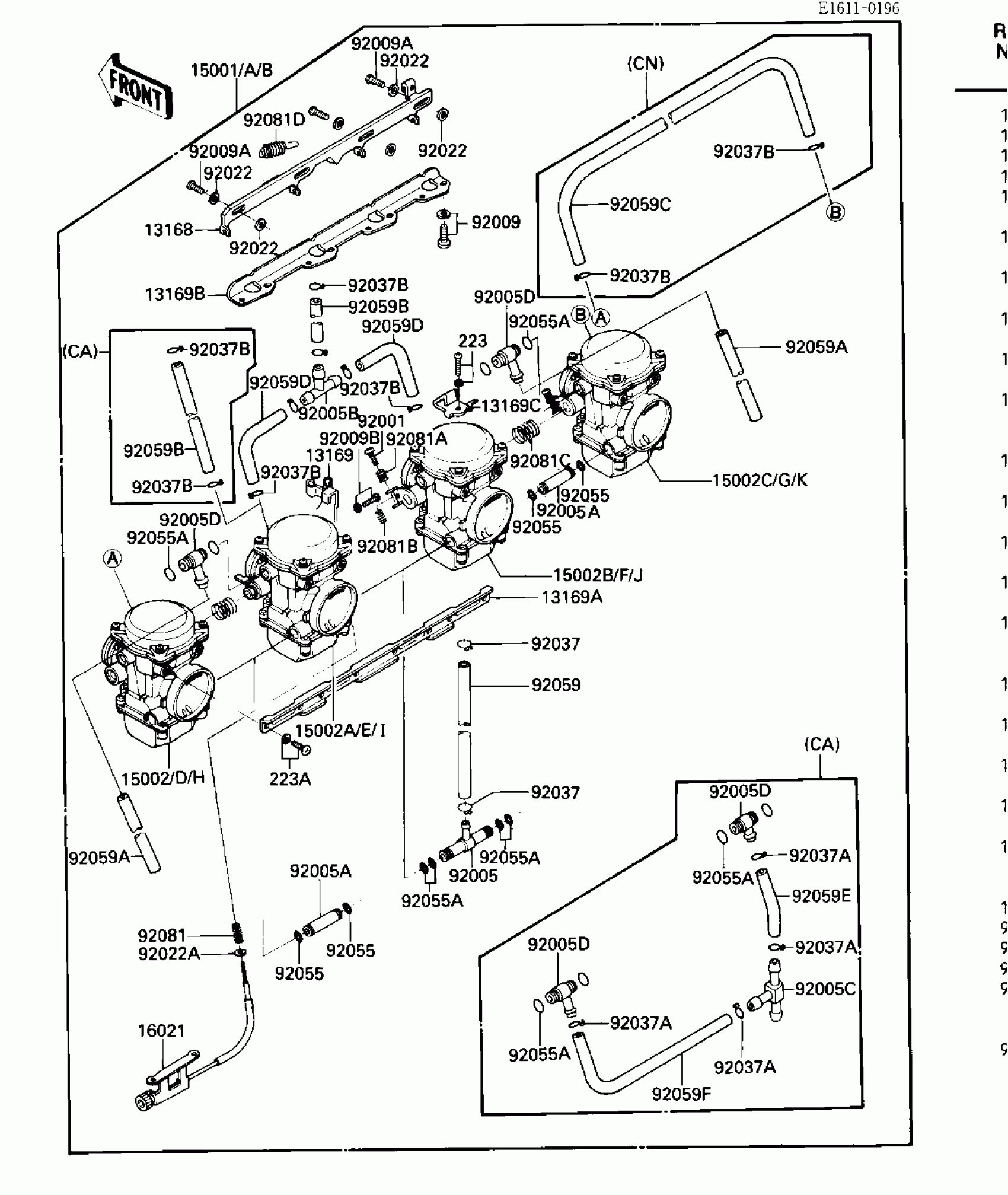

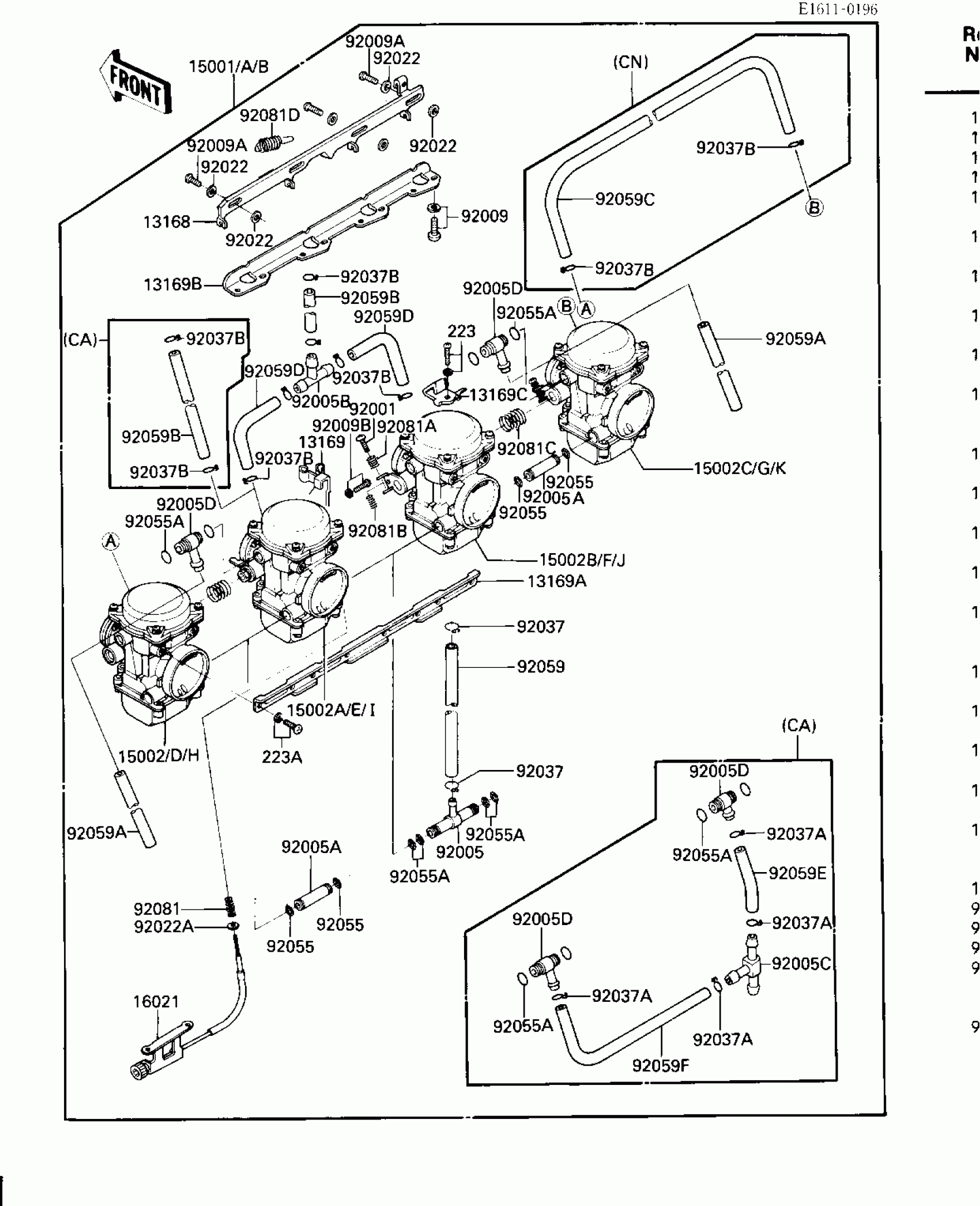

1986 Kawasaki Ninja® 600 Carburetor Assy Diagram

← All diagrams

Find the part on the Carburetor Assy diagram for your 1986 Kawasaki Ninja® 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Ninja® 600 Carburetor Assy Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13168

LEVER,DL

13168-1280

1

$123.55

In stock

13169

PLATE,THROTTLE CABLE

13169-1962

1
Out of stock

13169A

PLATE,CARBURETOR STAY,UPP

13169-1963

1
Out of stock

13169B

PLATE,CARBURETOR STAY,LWR,6MM

13169-1964

1
Out of stock

13169C

PLATE,STARTER CABLE

13169-1965

1

$40.89

In stock

15001

CARBURETOR-ASSY

15001-1153

1

$1,221.35

In stock

15001A

CARBURETOR-ASSY

15001-1154

1

$1,221.35

In stock

15001B

CARBURETOR-ASSY (Canada)

15001-1155

1
Out of stock

15002

CARBURETOR,LH,OUTSIDE (Canada)

15002-1225

1
Out of stock

15002A

CARBURETOR,LH,INSIDE (Canada)

15002-1226

1
Out of stock

15002B

CARBURETOR,RH,INSIDE (Canada)

15002-1227

1
Out of stock

15002C

CARBURETOR,RH,OUTSIDE (Canada)

15002-1228

1
Out of stock

15002D

1

$368.02

In stock

15002E

1

$338.86

In stock

15002F

1

$368.02

In stock

15002G

1

$339.51

In stock

15002H

1

$368.02

In stock

15002I

1

$368.02

In stock

15002J

1

$367.34

In stock

15002K

1

$368.02

In stock

16021

SCREW-THROTTLE STOP

16021-1114

1

$131.93

In stock

92001

1

$15.88

In stock

92005

FITTING,FUEL,T-TYPE

92005-1108

1
Out of stock

92005A

FITTING,FUEL,I-TYPE

92005-1109

1
Out of stock

92005B

FITTING,FUEL,T-TYPE

92005-1112

1
Out of stock

92005C

FITTING,T-TYPE

92005-1135

1
Out of stock

92005D

FITTING,T-TYPE

92005-1125

1
Out of stock

92009

SCREW,6X16

92009-1129

1
Out of stock

92009A

SCREW

92009-1262

1
Out of stock

92009B

SCREW,5X10

92009-1365

1
Out of stock

92022

1

$3.82

In stock

92022A

1

$4.42

In stock

92037

CLAMP,FUEL TUBE

92037-1075

1

$3.16

In stock

92037A

CLAMP,TUBE

92037-1682

1

$4.87

In stock

92037B

CLAMP,TUBE

92037-1142

1

$3.43

In stock

92037B

CLAMP,TUBE

92037-1142

1

$3.43

In stock

92037B

CLAMP,TUBE

92037-1142

1

$3.43

In stock

92055

RING-O

92055-1004

1

$3.43

In stock

92055A

RING-O

92055-1223

1

$4.37

In stock

92059

1

$34.56

In stock

92059A

TUBE,6.5X9.5X290

92059-1376

1

$34.01

In stock

92059B

TUBE,5X9X150

92059-1378

1

$24.51

In stock

92059C

TUBE,5X9X320

92059-1626

1

$24.51

In stock

92059D

TUBE,5X9X90

92059-1627

1

$10.93

In stock

92059E

TUBE,7X11X90

92059-1638

1

$8.90

In stock

92059F

TUBE,7X11X260

92059-1639

1

$24.19

In stock

92081

1

$5.32

In stock

92081A

SPRING

92081-1620

1

$3.94

In stock

92081B

1

$4.12

In stock

92081C

1

$10.27

In stock

92081D

1

$22.88

In stock

223

SCREW-PAN-WS-CROS,4X20

223C0420

1
Out of stock

223A

1

$3.28

In stock
