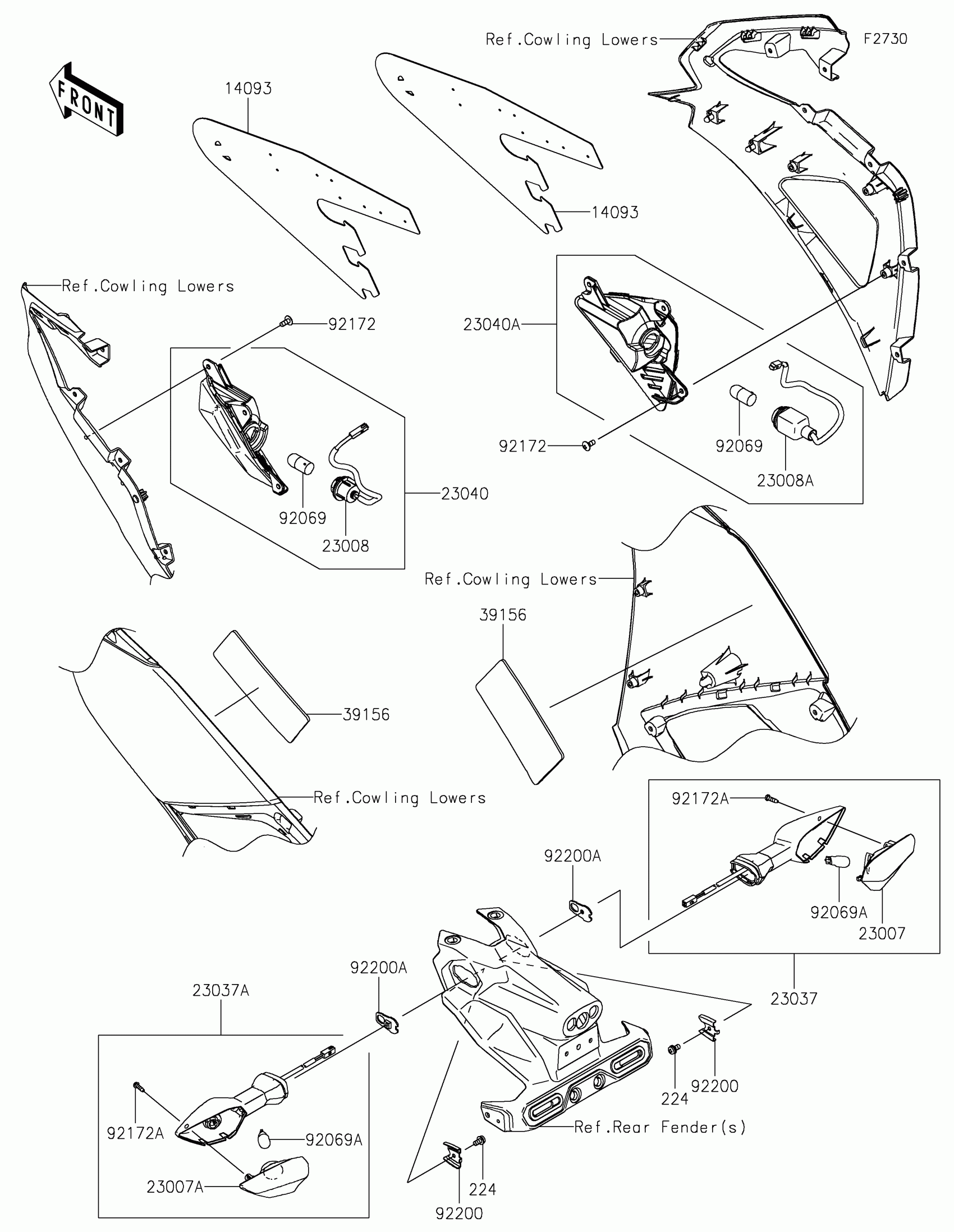

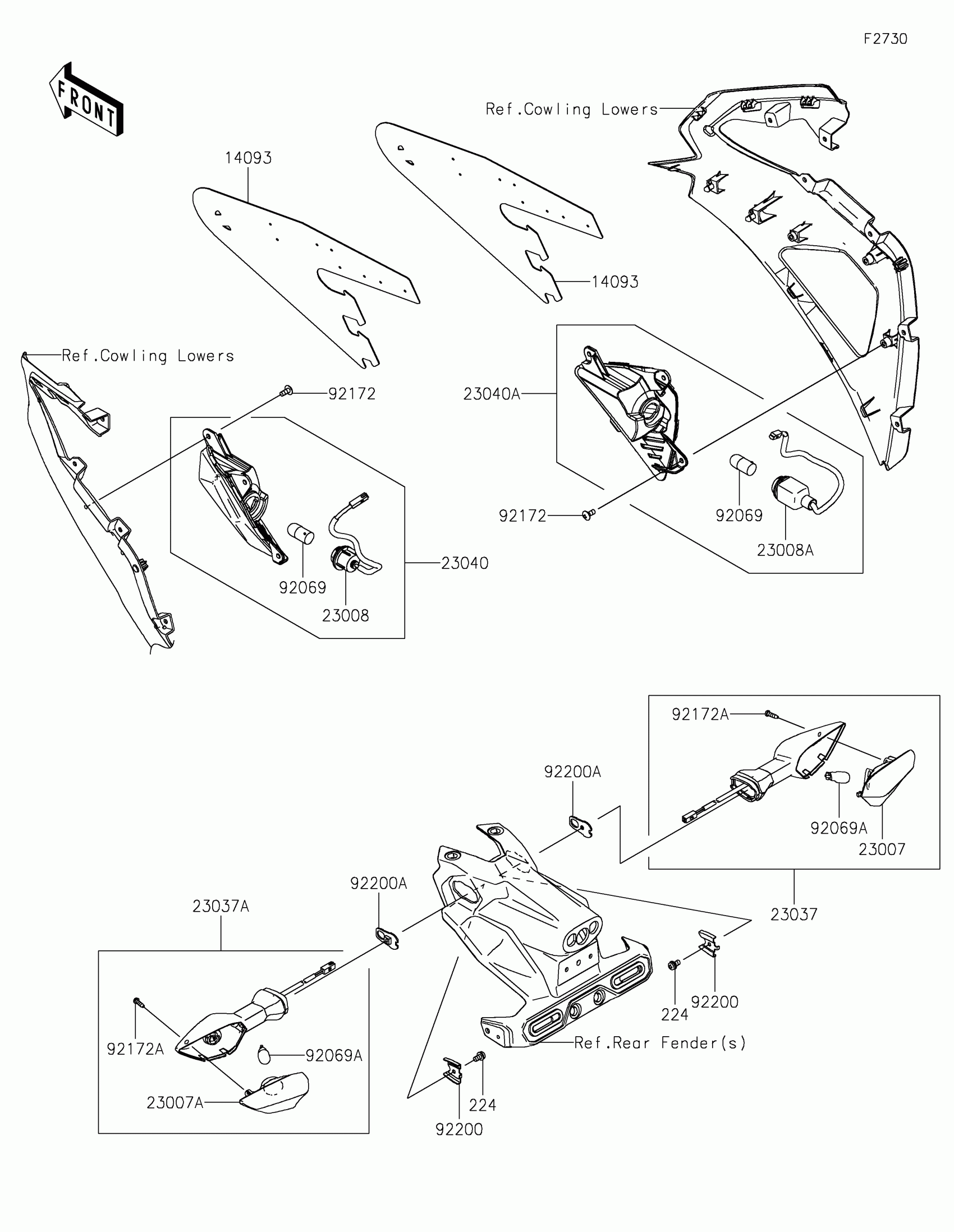

Kawasaki NINJA® 500 ABS Turn Signals Diagram

Description

Price

14093

COVER,SIGNAL LAMP

14093-1543

$16.63

23007

LENS-COMP

23007-0228

$24.02

23007A

LENS-COMP

23007-0229

$20.72

23008

SOCKET-ASSY,BLACK

23008-0191

$20.88

23008A

SOCKET-ASSY,GRAY

23008-0192

$20.88

23037

LAMP-ASSY-SIGNAL,RR RH

23037-0537

$52.35

23037A

LAMP-ASSY-SIGNAL,RR LH

23037-0538

$52.35

23040

LAMP-SIGNAL,FR LH

23040-0153

$71.28

23040A

LAMP-SIGNAL,FR RH

23040-0154

$71.28

39156

PAD,140X70X3

39156-2951

$24.98

92069

BULB,12V 10W

92069-0058

$5.90

92069A

BULB,12V 10W

92069-0090

$4.36

92172

SCREW,5X12

92172-0821

$0.73

92172A

SCREW,4X14

92172-1117

$3.20

92200

WASHER

92200-0855

$1.44

92200A

WASHER,NUT,4MM

92200-2222

$2.31

224

SCREW-PAN-WP-CROS,4X8

224AB0408

$2.79
