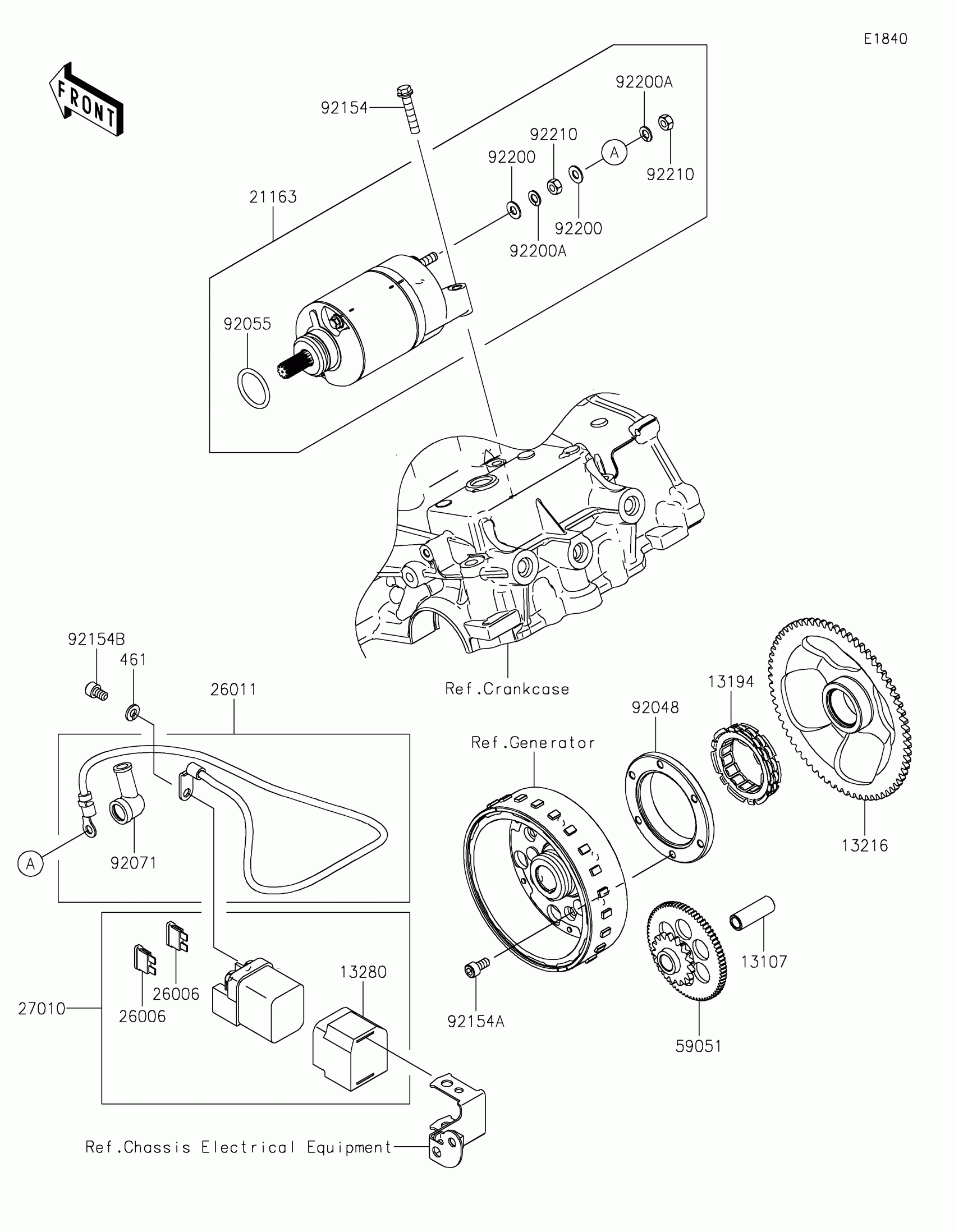

Kawasaki NINJA® 500 ABS Starter Motor Diagram

Description

Price

13107

SHAFT,IDLER

13107-0861

$11.76

13194

CLUTCH-ONEWAY

13194-1096

$108.18

13216

GEAR-COMP,ONEWAY CLUTCH,67T

13216-0895

$211.14

13280

HOLDER

13280-0301

$13.37

21163

STARTER-ELECTRIC

21163-0794

$335.71

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.39

26011

WIRE-LEAD,STARTER

26011-1867

$73.13

27010

SWITCH,MAGNETIC

27010-0099

$129.95

59051

GEAR-SPUR,IDLER

59051-0799

$157.00

92048

RACE

92048-0024

$57.27

92055

RING-O

92055-0822

$11.81

92071

GROMMET

92071-0787

$5.97

92154

BOLT,FLANGED,6X30

92154-1773

$1.10

92154A

BOLT,SOCKET,6X12

92154-1889

$1.78

92154B

BOLT,SOCKET,6X10

92154-4401

$0.69

92200

WASHER

92200-1678

$3.15

92200A

WASHER

92200-1679

$1.32

92210

NUT

92210-1664

$3.56

461

WASHER-SPRING,6MM

461DA0600

$0.66
