2025 Kawasaki Ninja® 500 ABS Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2025 Kawasaki Ninja® 500 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

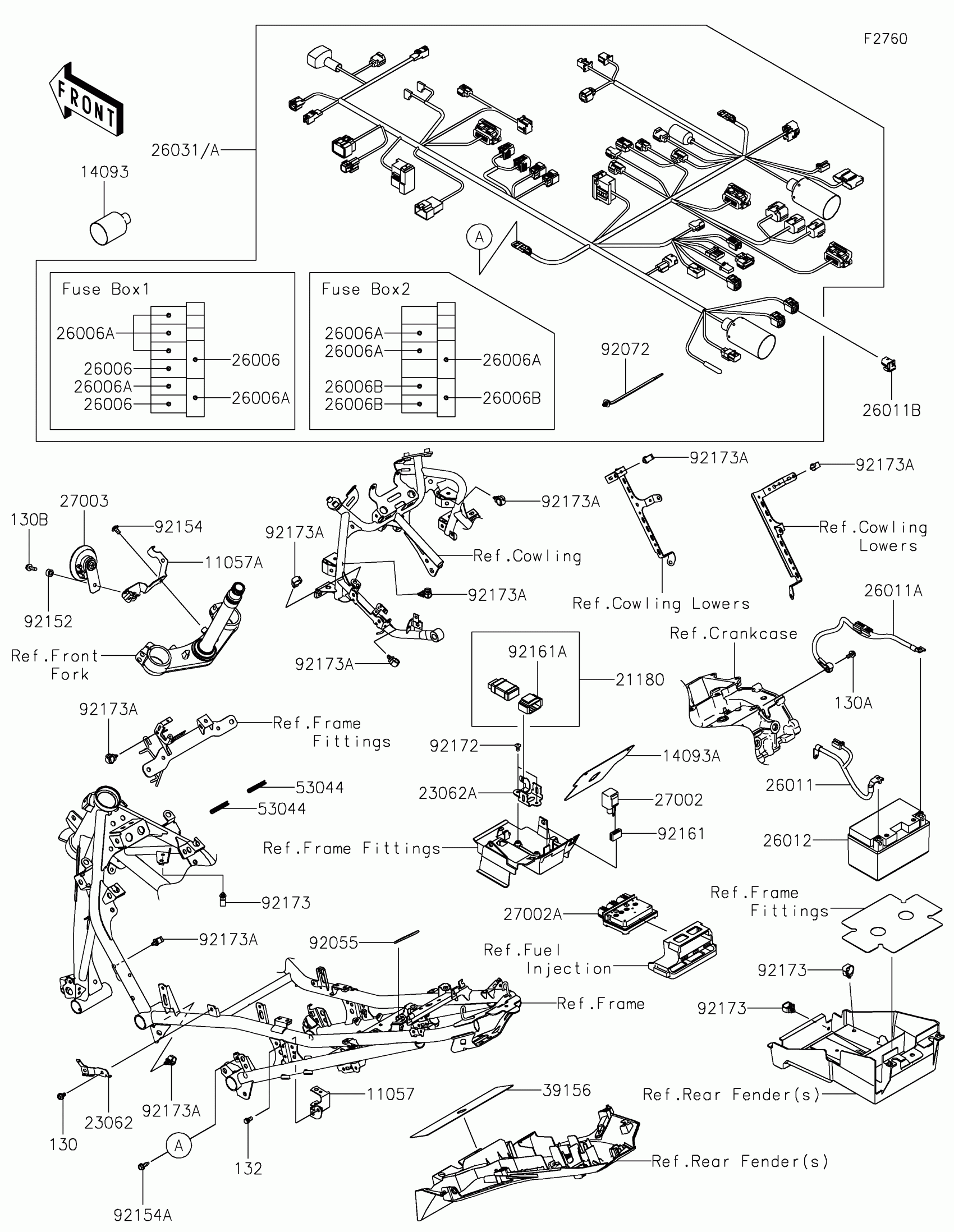

2025 Kawasaki Ninja® 500 ABS Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,MAGNETIC SW.

11057-1225

1
Out of stock

11057A

BRACKET,HORN

11057-7535

1
Out of stock

14093

COVER,HARNESS

14093-0720

1
Out of stock

14093A

COVER,RELAY

14093-1542

1
Out of stock

21180

TRANSCEIVER,BLUETOOTH

21180-0007

1
Out of stock

23062

BRACKET-COMP,FUSE BOX

23062-1490

1
Out of stock

23062A

BRACKET-COMP,TRANSCEIVER

23062-1491

1
Out of stock

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

1
Out of stock

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

1
Out of stock

26006B

FUSE,MINI BLADE,20A,YELLOW

26006-1079

1
Out of stock

26011

WIRE-LEAD,BATTERY(+)

26011-0974

1
Out of stock

26011A

WIRE-LEAD,BATTERY(-)

26011-0975

1
Out of stock

26011B

WIRE-LEAD,DIAG CONNECTOR

26011-1901

1
Out of stock

26012

BATTERY,YTZ10,12V 8.6AH

26012-1606

1
Out of stock

26031

HARNESS,MAIN

26031-4294

1
Out of stock

26031A

HARNESS,MAIN

26031-4296

1
Out of stock

27002

RELAY-ASSY,SIGNAL LAMP

27002-0006

1
Out of stock

27002A

RELAY-ASSY

27002-0061

1
Out of stock

27003

HORN

27003-0065

1
Out of stock

39156

PAD,60X250X1

39156-2219

1
Out of stock

53044

TRIM,45MM

53044-0644

1
Out of stock

92055

RING-O,50MM

92055-0954

1
Out of stock

92072

BAND,OS170-FT7(BLACK)

92072-1414

—
Out of stock

92152

COLLAR,6.5X14X8

92152-2352

1
Out of stock

92154

BOLT,SOCKET,6X12

92154-2355

1
Out of stock

92154A

BOLT,FLANGED,6X18

92154-4008

1
Out of stock

92161

DAMPER,15X25X8.5

92161-1443

1
Out of stock

92161A

DAMPER

92161-2516

1
Out of stock

92172

SCREW,5X12

92172-0821

1
Out of stock

92173

CLAMP,HOLDER CLIP

92173-0868

1
Out of stock

92173A

CLAMP

92173-1951

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

130A

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130B

BOLT-FLANGED,6X18

130BA0618

1

$1.36

In stock

132

1

$1.12

In stock
